12304PI Loudspeakers | 2 Way 100V 6.5” 50W Ceiling Speaker

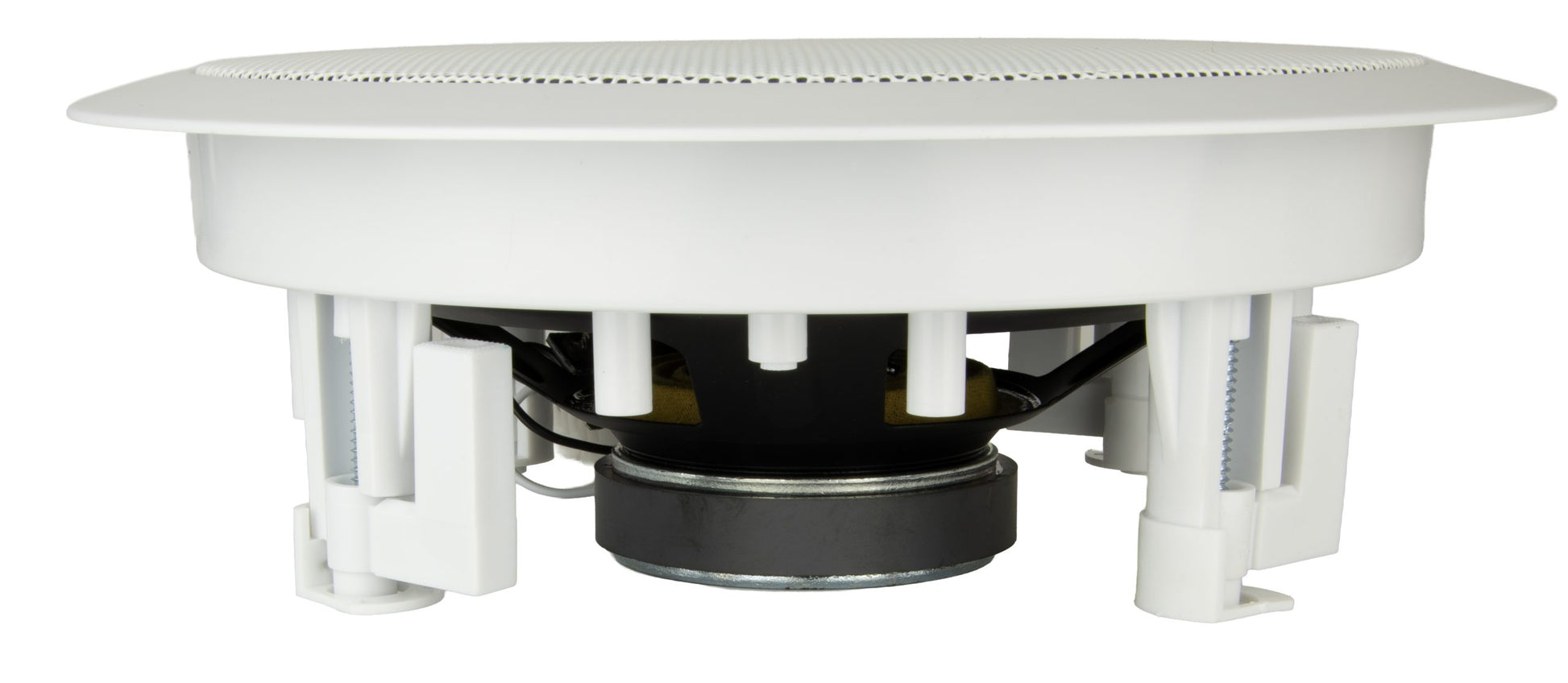

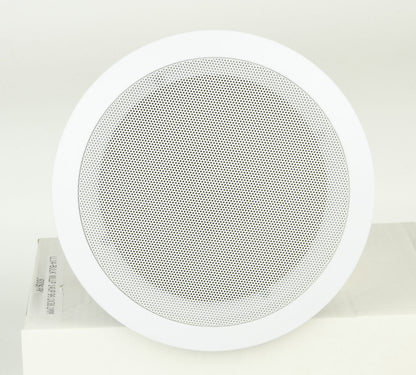

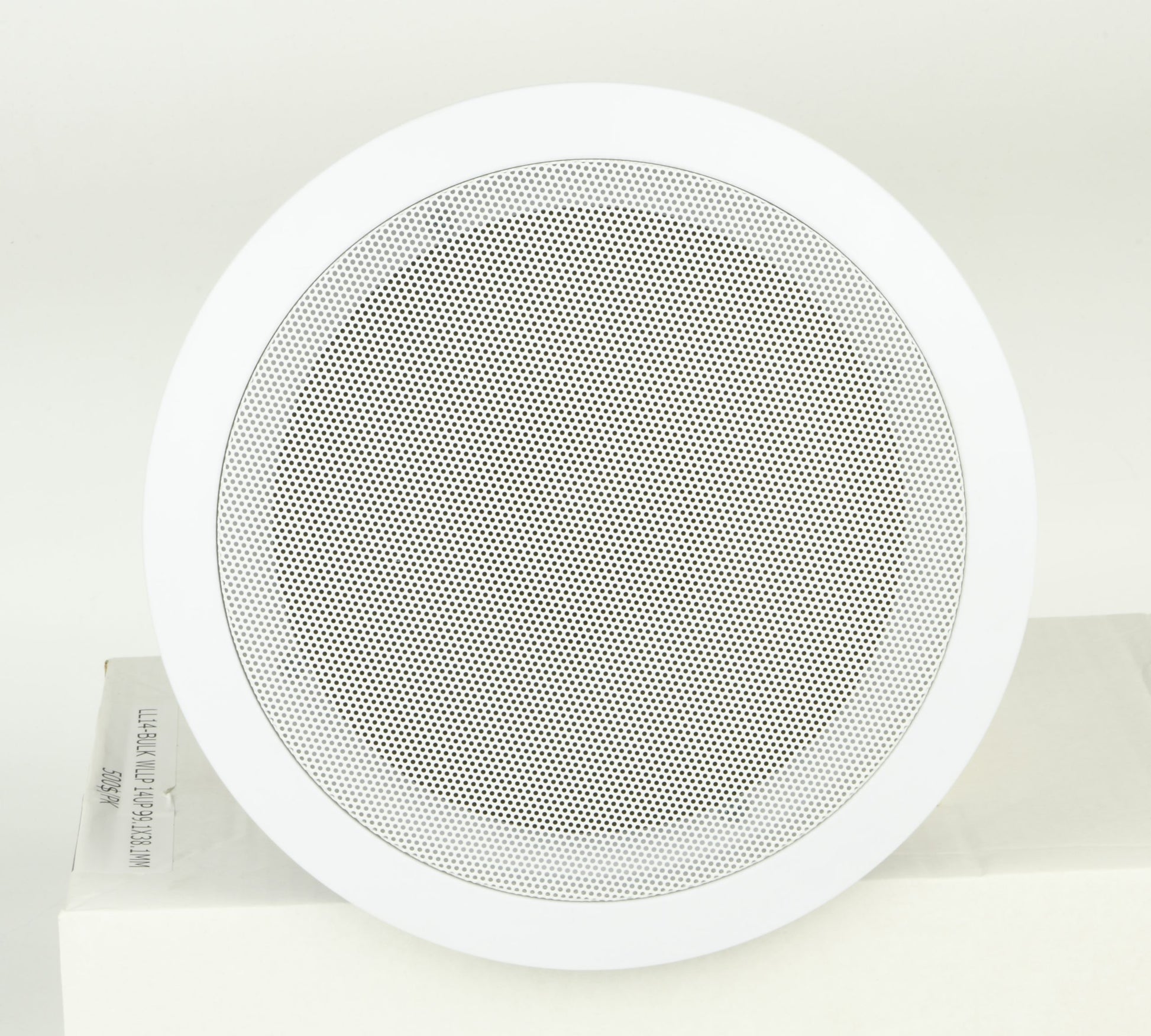

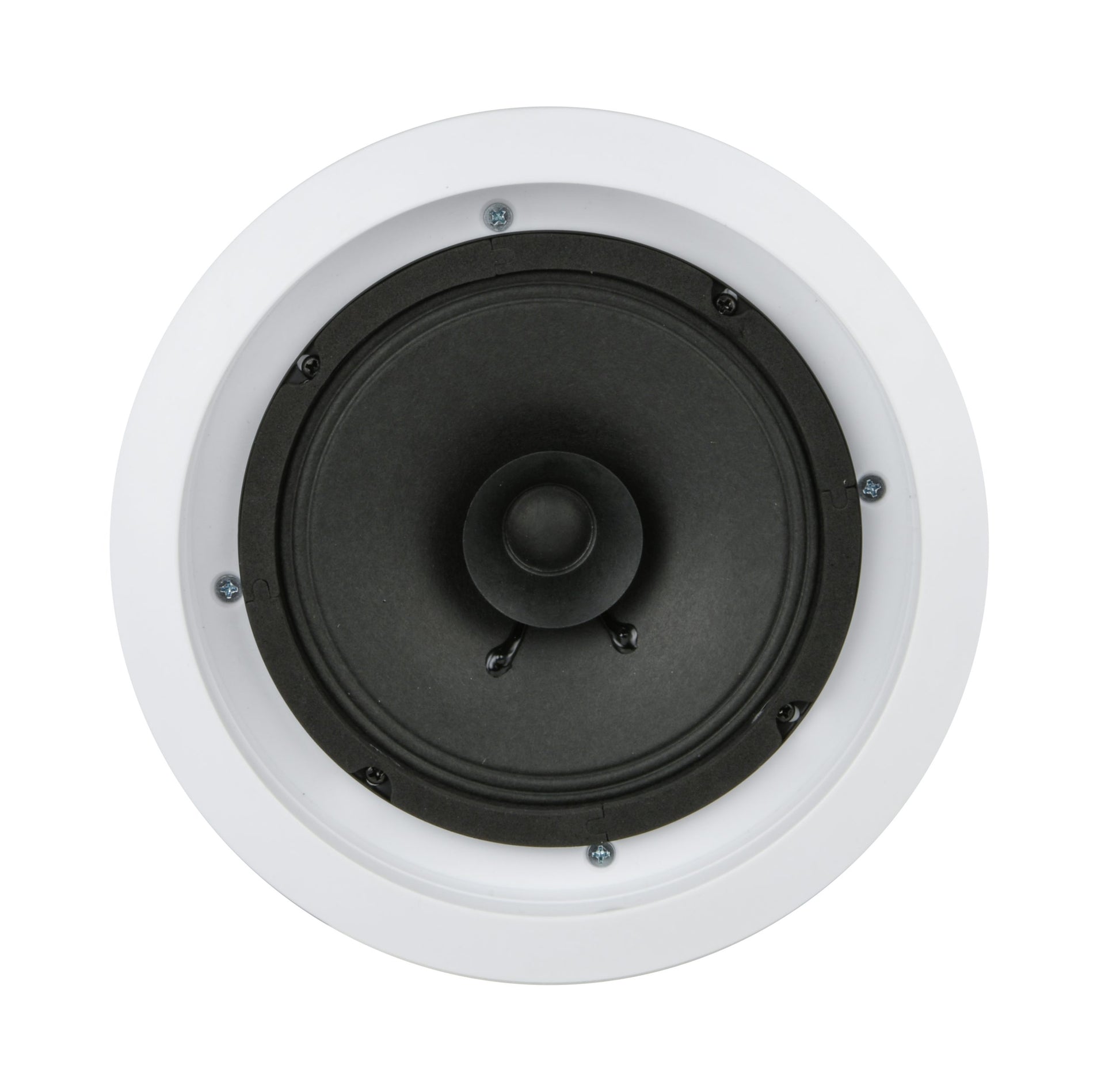

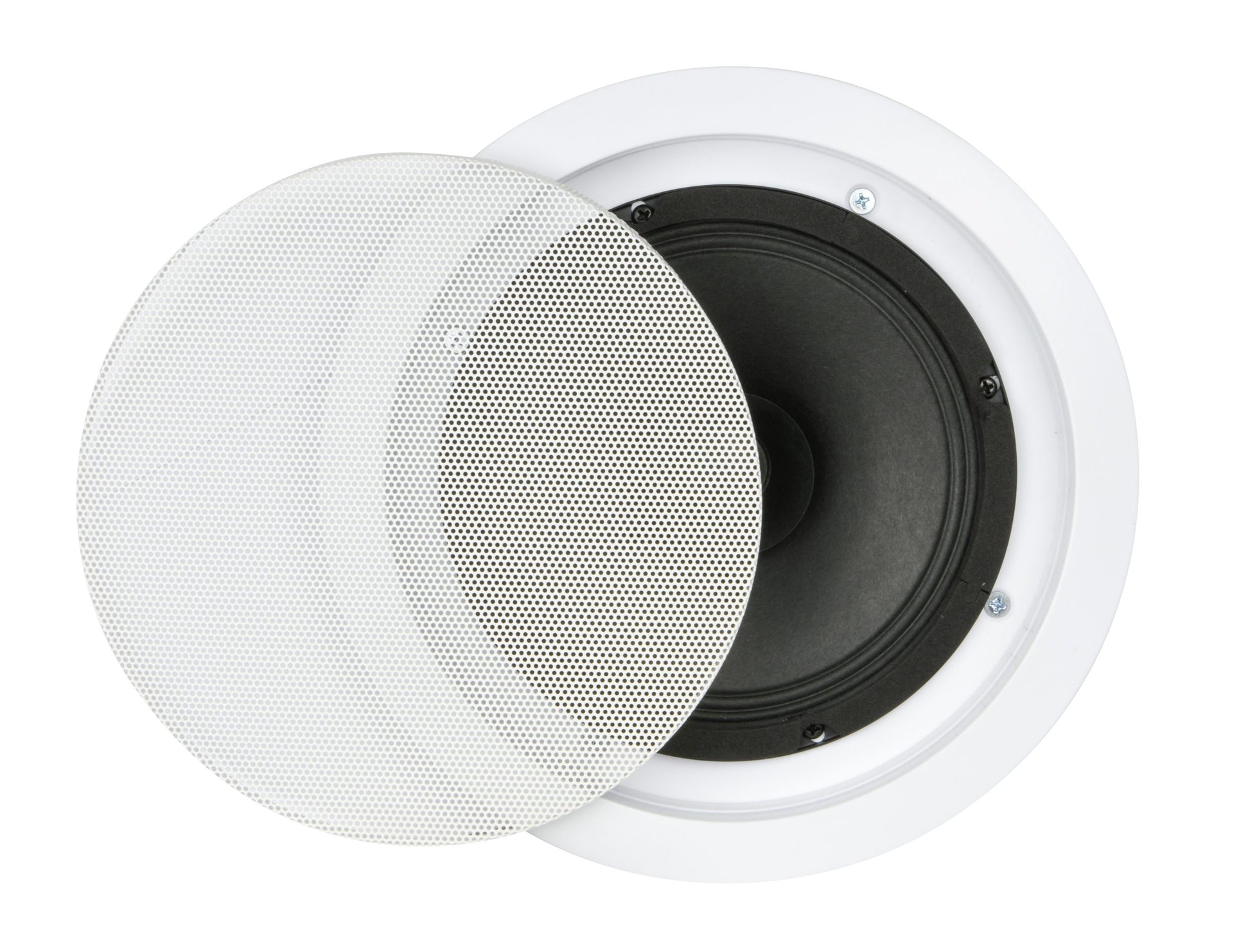

This quick-fit 100V/8Ω 2-way ceiling speaker is designed for permanent installations using 100V line mixers or power amplifiers, delivering reliable, high-quality sound. It features a 6.5” low-frequency driver and a centrally mounted 0.5” tweeter, producing up to 50W RMS. Multiple 100V line power taps allow easy volume balancing across different areas. With rugged construction and high efficiency, it’s ideal for clear speech and background music in commercial, educational, and institutional spaces including restaurants, cafés, retail stores, pubs, and offices. 2 Way speaker with 6.5” Woofer and 0.5” tweeter 100V Line tapping options for 3.5W, 7.5W, 15W & 30W Fitted with “dog-ear” mounts for fixing to ceiling tiles Spring loaded terminals for easy speaker cable connections Flush mounting grille attaches to speaker frame magnets

• Woofer: Voice Coil: 1" ASV
• Woofer: Magnet: 80*40*15 10OZ
• Woofer: Plate & T-yoke: 4/4 MM
• Woofer: Cone: PP
• Woofer: Edge: Rubber
• Tweeter: Voice coil: 0.5"KSV
• Tweeter: Cone: Mylar
• Crossover: -6DB/OCT
• Impedance: 8Ω
• Frequency Response: 65-20K HZ
• Resonance Frequency (Fs): 65HZ
• RMS Power/MAX Power: 50W
• Transformer: C100V/30W-15W-7.5W-3.5W
• Colour: Black
• Grille: White
• Dimension: Ø234 x 87mm
• Cutout Size: Ø210mm
