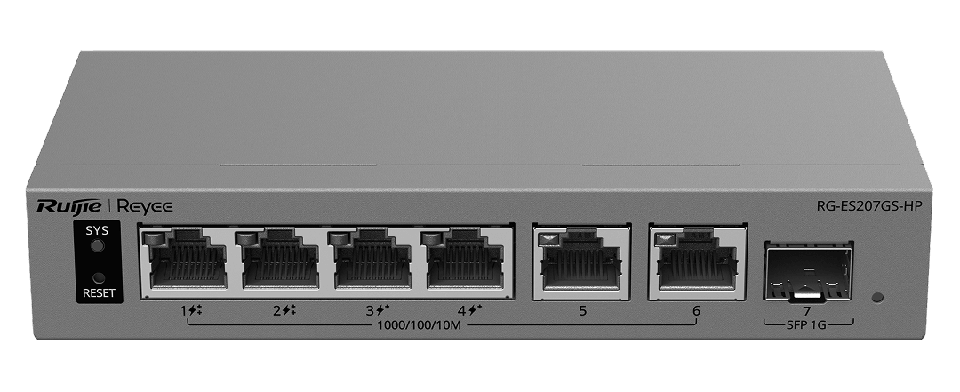

• RG-ES207GS-HP product image

RG-ES207GS-HP | 4-Port 10/100/1000BASE-T PoE (2-Port PoE++ and 2-Port PoE+) Cloud-Managed Switch with 2-Port Gigabit and 1-Port

RG-ES207GS-HP | 4-Port 10/100/1000BASE-T PoE (2-Port PoE++ and 2-Port PoE+) Cloud-Managed Switch with 2-Port Gigabit and 1-Port

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed PoE Switches
  • 4 Port

4-Port 10/100/1000BASE-T PoE (2-Port PoE++ and 2-Port PoE+) Cloud-Managed Switch with 2-Port Gigabit and 1-Port SFP, 120 W

Key Features

  • Cloud-Managed
  • 6GT
  • 1SFP
  • 120W

Model: RG-ES207GS-HP

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
RG-ES207GS-HP | 4-Port 10/100/1000BASE-T PoE (2-Port PoE++ and 2-Port PoE+) Cloud-Managed Switch with 2-Port Gigabit and 1-Port
Login to View Price

Specifications

  • Total number of RJ45 ports: 6
  • Total number of optical ports: 1
  • Number of 1GE SFP ports: 1
  • Number of 10/100/1000BASE-T ports: 6
  • Number of PoE Out ports: 4
  • Number of PoE/PoE+ Out ports: 4
  • Number of PoE/PoE+/PoE++ Out ports: 2
  • PoE budget: 120 W
  • PoE power pins: Port 1-2: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 3-4: 1–2 (+), 3–6 (-)
  • Operating temperature: 0°C to +40°C (32°F to 104°F)
  • PoE watchdog: Yes
  • Port isolation: Yes
  • Warranty: 3 years
  • Forwarding rate: 10.42 Mpps
  • Switching capacity: 14 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 32
  • Maximum number of MAC address entries: 2000
  • Cable test: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 40 400W H265: 20

Hardware
  • Total number of RJ45 ports: 6
  • Total number of optical ports: 1
  • Number of 1GE SFP ports: 1
  • Number of 10/100/1000BASE-T ports: 6
  • Number of PoE Out ports: 4
  • Number of PoE/PoE+ Out ports: 4
  • Number of PoE/PoE+/PoE++ Out ports: 2
  • PoE budget: 120 W
  • PoE power pins: Port 1-2: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 3-4: 1–2 (+), 3–6 (-)
  • Operating temperature: 0°C to +40°C (32°F to 104°F)
  • PoE watchdog: Yes
  • Port isolation: Yes

Other
  • Warranty: 3 years
  • Forwarding rate: 10.42 Mpps
  • Switching capacity: 14 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 32
  • Maximum number of MAC address entries: 2000
  • Cable test: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 40 400W H265: 20
