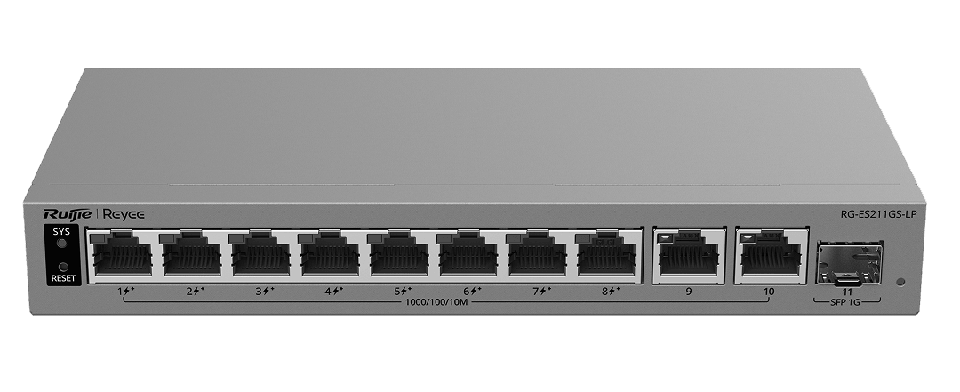

• RG-ES211GS-LP product image

RG-ES211GS-LP 8-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 2-Port Gigabit and 1-Port SFP, 70 W

RG-ES211GS-LP 8-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 2-Port Gigabit and 1-Port SFP, 70 W

Category: Network Switches
|
Brand: Ruijie Reyee
  • Network Switches
  • Managed PoE Switches
  • 8 Port

8-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 2-Port Gigabit and 1-Port SFP, 70 W

Key Features

  • Cloud-Managed
  • 10GT 1SFP
  • 70W

Model: RG-ES211GS-LP

  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
RG-ES211GS-LP 8-Port 10/100/1000BASE-T PoE+ Cloud-Managed Switch with 2-Port Gigabit and 1-Port SFP, 70 W
Login to View Price

Specifications

  • Total number of RJ45 ports: 10
  • Total number of optical ports: 1
  • Number of 1GE SFP ports: 1
  • Number of 10/100/1000BASE-T ports: 10
  • Number of PoE Out ports: 8
  • Number of PoE/PoE+ Out ports: 8
  • PoE budget: 70 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • PoE watchdog: Yes
  • Port isolation: Yes
  • Warranty: 3 years
  • Forwarding rate: 16.37 Mpps
  • Switching capacity: 22 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 32
  • Maximum number of MAC address entries: 16000
  • Cable test: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 100 400W H265: 50

Hardware
  • Total number of RJ45 ports: 10
  • Total number of optical ports: 1
  • Number of 1GE SFP ports: 1
  • Number of 10/100/1000BASE-T ports: 10
  • Number of PoE Out ports: 8
  • Number of PoE/PoE+ Out ports: 8
  • PoE budget: 70 W
  • PoE power pins: 1–2 (+), 3–6 (-)
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • PoE watchdog: Yes
  • Port isolation: Yes

Other
  • Warranty: 3 years
  • Forwarding rate: 16.37 Mpps
  • Switching capacity: 22 Gbps(bit/s)
  • MTBF: 200,000 hours
  • Altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
  • Surge protection: Service port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
  • Safety compliance: EN 62368-1 IEC 62368-1
  • Maximum number of VLANs: 32
  • Maximum number of MAC address entries: 16000
  • Cable test: Yes
  • DHCP snooping: Yes
  • Recommended camera limit: 200W H265: 100 400W H265: 50
