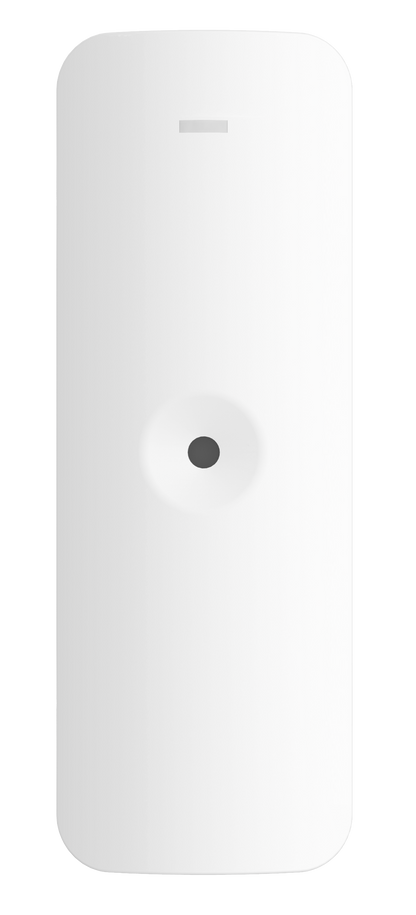

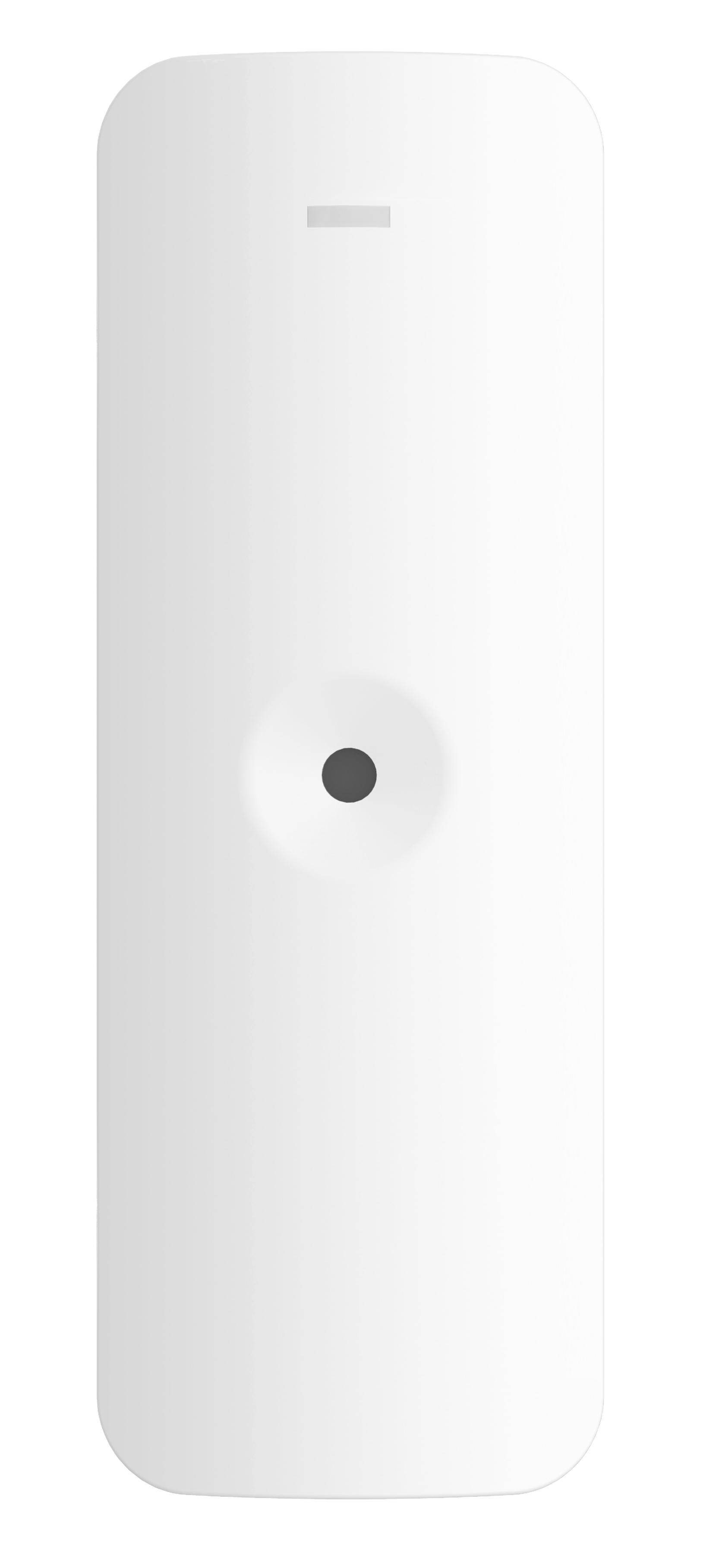

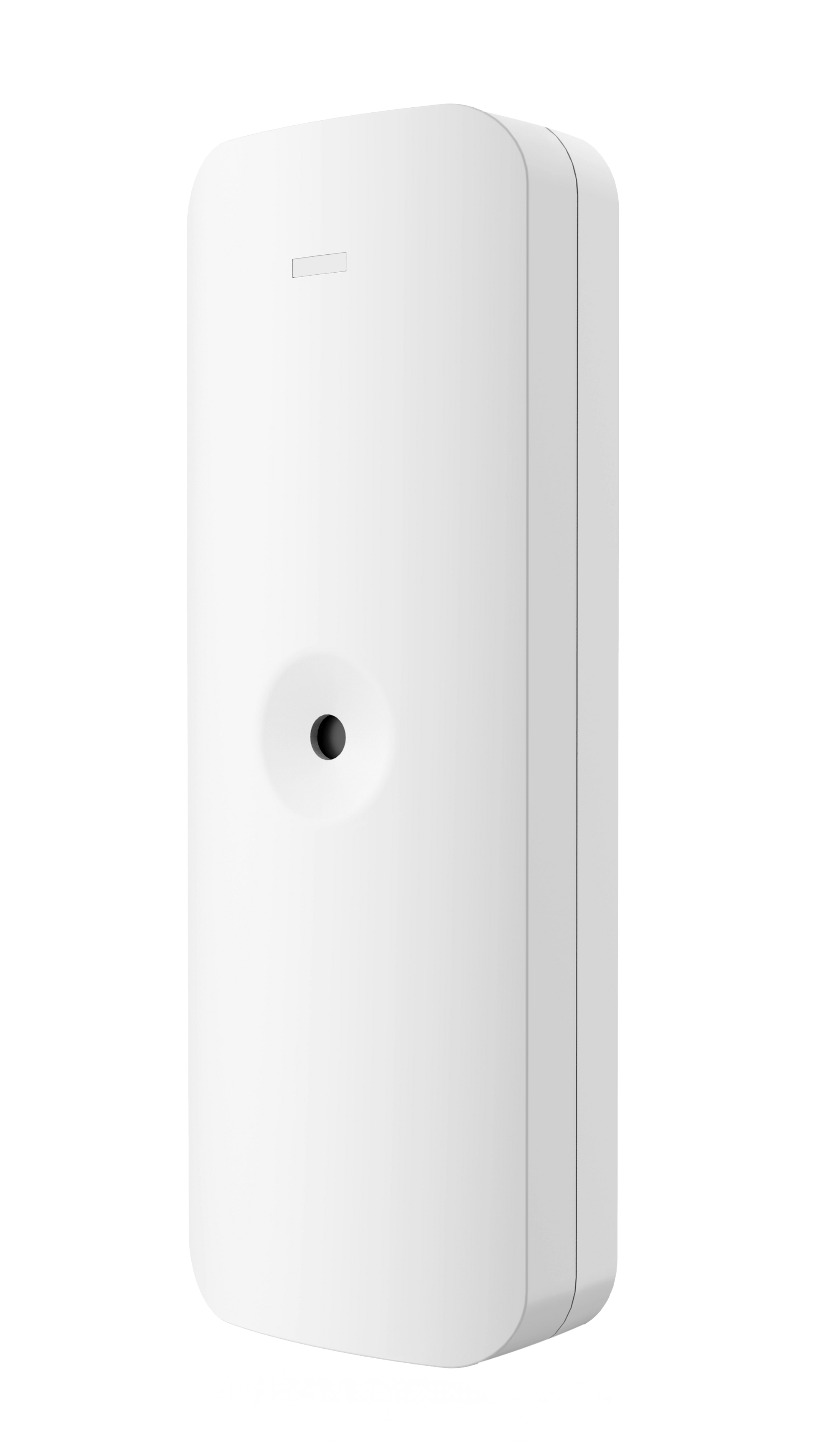

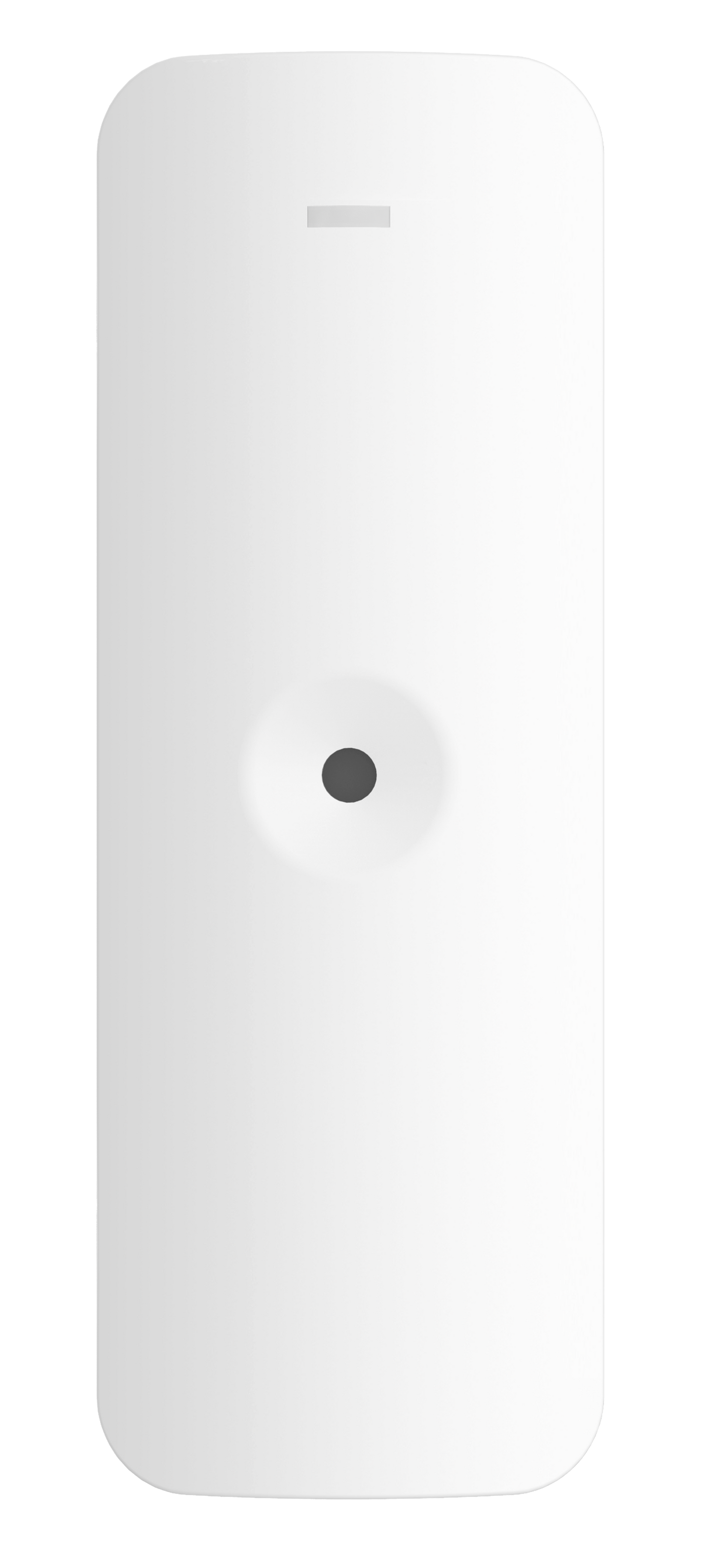

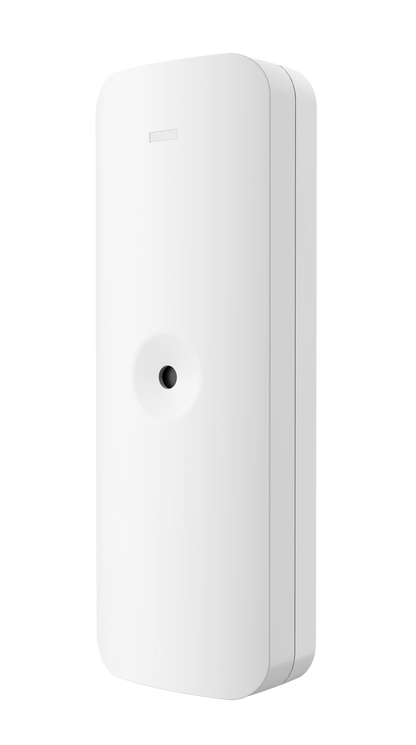

AX Pro DS-PDBG8-EG2 | Detector
AX Pro DS-PDBG8-EG2 | Detector
- Wired
- Wired Intrusion Alarm
- General Wired Detectors
20 – 60 passage frequency,
Single type: 650 mm – 900mm lane width,
Pairs type: 650 mm – 1400mm lane width,
SUS304 stainless steel,
Brushless motor, MCBF 6 Millions,
Dimension: φ180*975mm
Fail safe for emergency situation,
Need order Power box & Door wings & ACS separately，
door wings will be free status when power off,
Use for indoor;
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDBG8-EG2 | Detector
Specifications
- Detection Method: Acoustic Sensor
- Detection Range: 8m
- Detection Angle: 120°
- Glass Break Sensitivity: Potentiometer Adjustment
- Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Thickness: 2.4mm to 6.4mm
- Glass Size: 0.3m x 0.3m to 3m x 3m
- Digital Processing: Support
- Tamper Protection: Front
- Alarm Output: Normally Closed
- LED Indicator: Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm)
- Transmission Method: Wired
- Power Supply: 9 to 16 VDC
- Typical Voltage: 12V
- Power Consumption: Maximum current：25mA @12VDC Quiescent current：25mA @12VDC
- Operation Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): 38.8 mm × 107 mm × 22.5 mm
- Weight: 49.5g
- Mounting Method: Wall;Ceiling
- Application Scenario: Indoor
