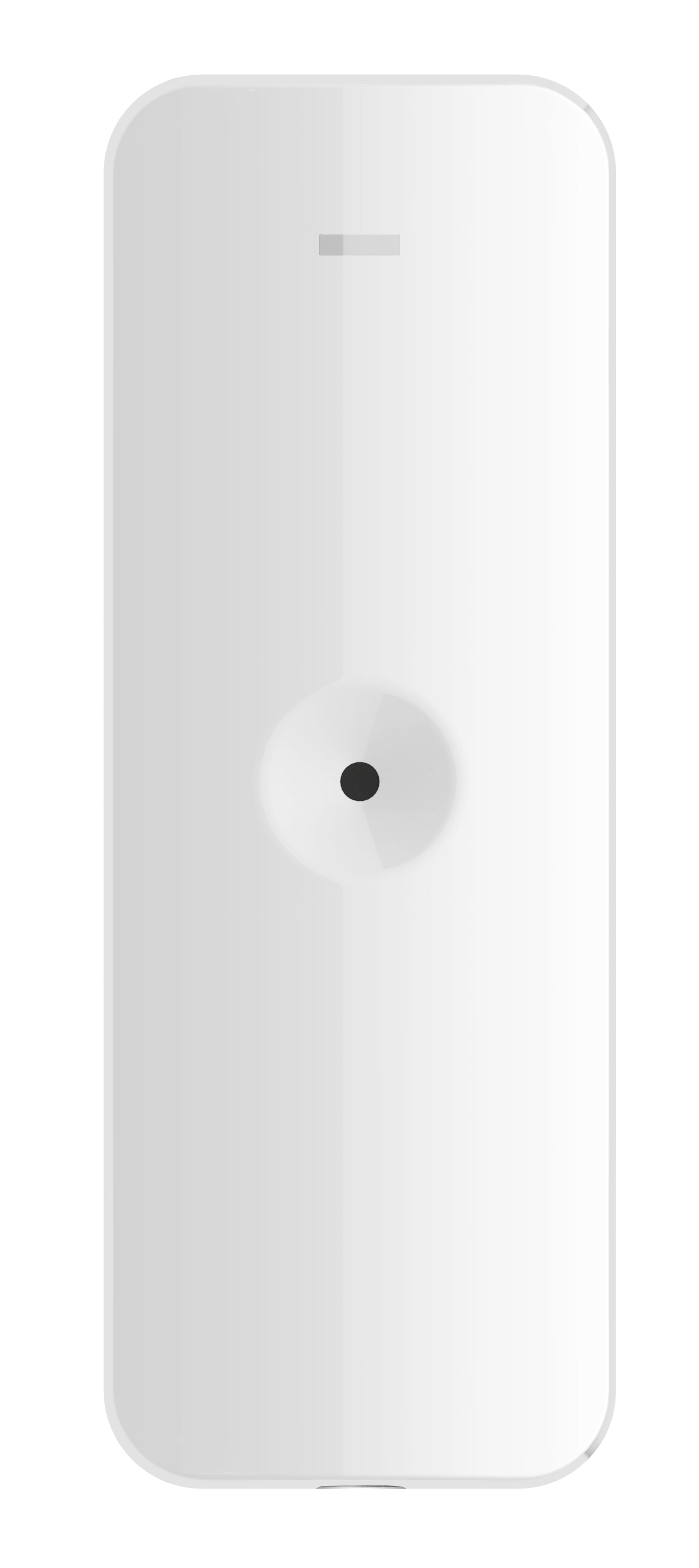

AX Pro DS-PDBG8-EG2-WE | Detector
AX Pro DS-PDBG8-EG2-WE | Detector
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
8m/120°;2 inputs;CR123A;868MHz;EN G2
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDBG8-EG2-WE | Detector
Specifications
- Detection Method: Acoustic Sensor
- Detection Range: 8m
- Detection Angle: 120°
- Sensitivity: 2m;4m;6m;8m
- Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Thickness: 2.4 mm to 6.4 mm
- Glass Size: 0.3 m × 0.3 m to 3 m × 3 m
- Digital Processing: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Alarm Input: Normally Closed;Normally Open;Impulse Count
- Power Switch: Power up uenrolling
- LED Indicator: Blue (alarm)
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 1.6 km
- Frequency Hopping: Support
- Enrolling Method: Power up;Remote ID;QR Code
- Power Supply: Battery powered
- Battery Type: CR123A × 2
- Typical Voltage: 3V
- Standard Battery Life: Up to 5 years (standby time)
- Operation Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): 38.8 mm × 107.0 mm × 24.5 mm
- Weight: 83g
- Mounting Method: Wall;Ceiling
- Application Scenario: Indoor
