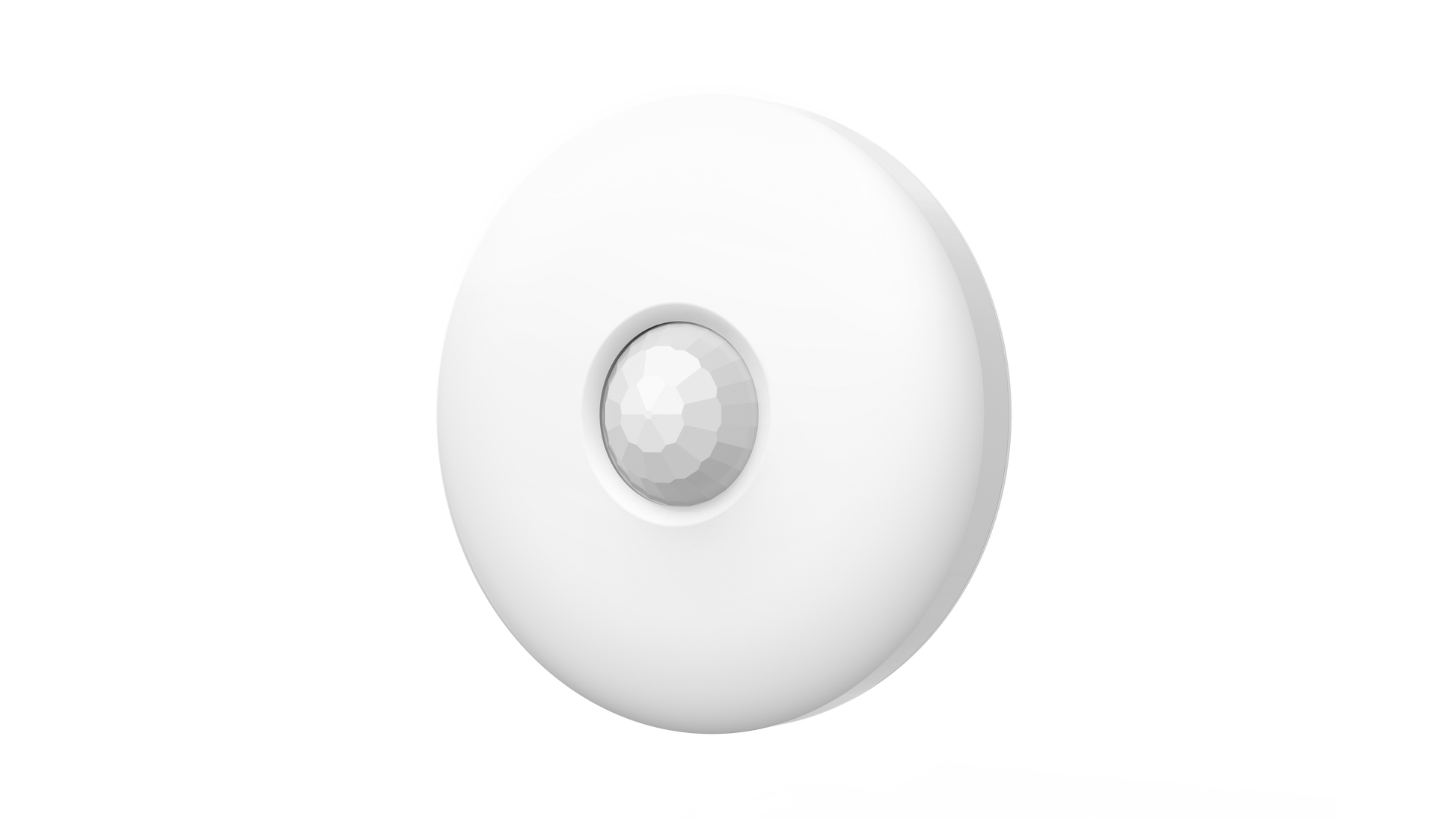

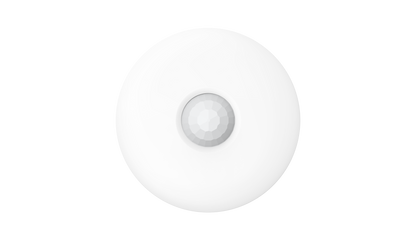

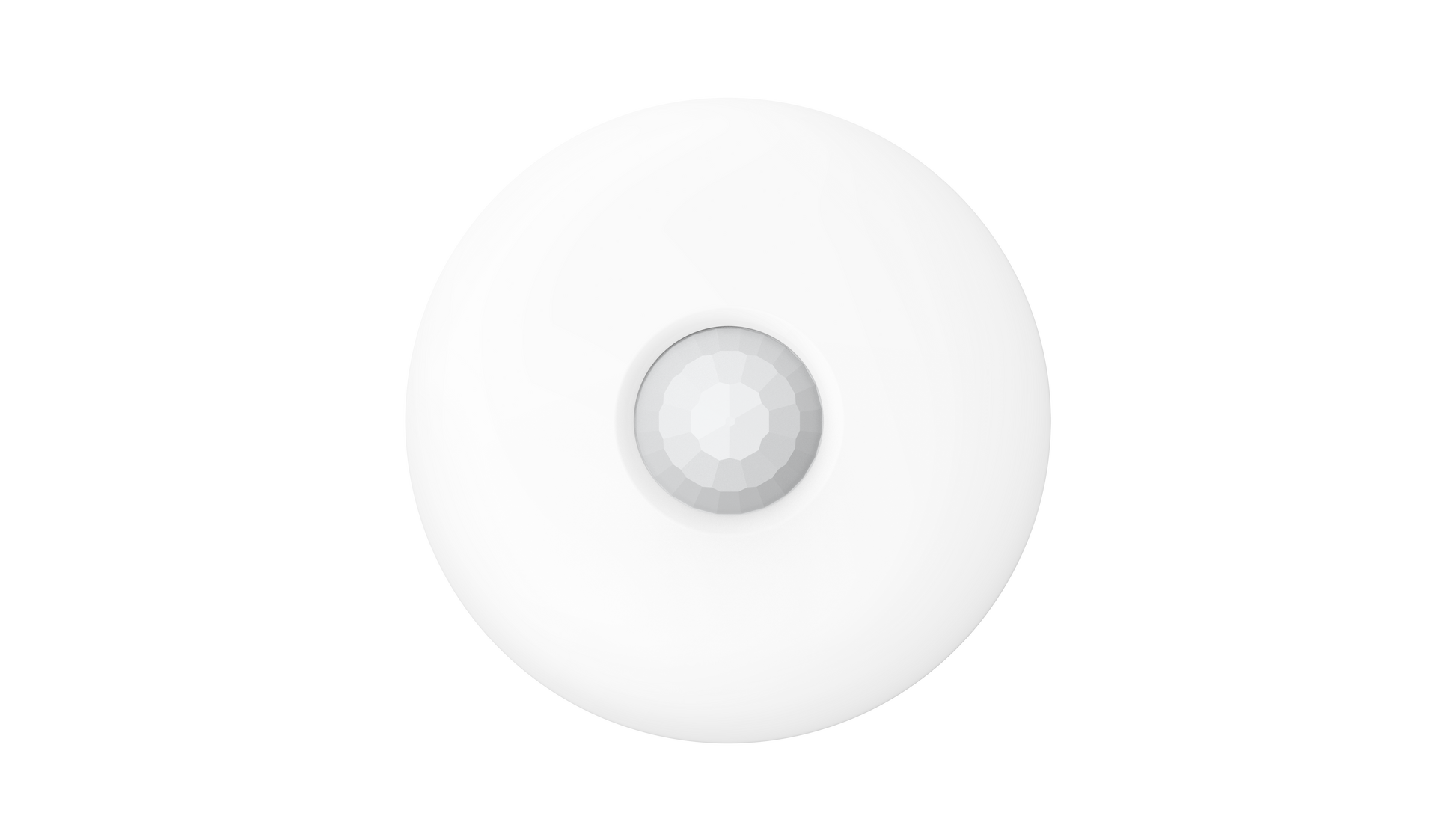

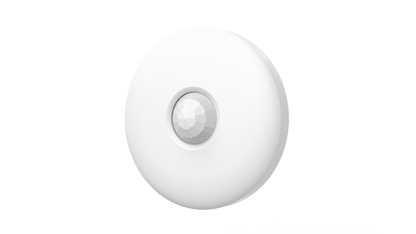

AX Pro DS-PDCL12DT-EG2 | Detector
Specifications
- Detection Method: Passive Infrared;Microwave
- Sensor Model: SBG4L46-711
- Detection Range: 12m
- Detection Angle: 360°
- Detection Zones: 172
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto;Low
- White Light Filter: 6500lux
- Microwave Frequency: 24GHz(24.15～24.25GHz)
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front
- LED Indicator: Green(PIR), Red(Microwave), Blue(Alarm), Orange(Fault)
- Power Supply: 9 to 16 VDC
- Typical Voltage: 12 VDC
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): φ120 mm x 33.2 mm
- Weight: 138g
- Mounting Height: 2.4 to 4m
- Mounting Method: Ceiling
- Application Scenario: Indoor
- Power consumption: 100mA Max
