• DS-PDCM15PF-IR

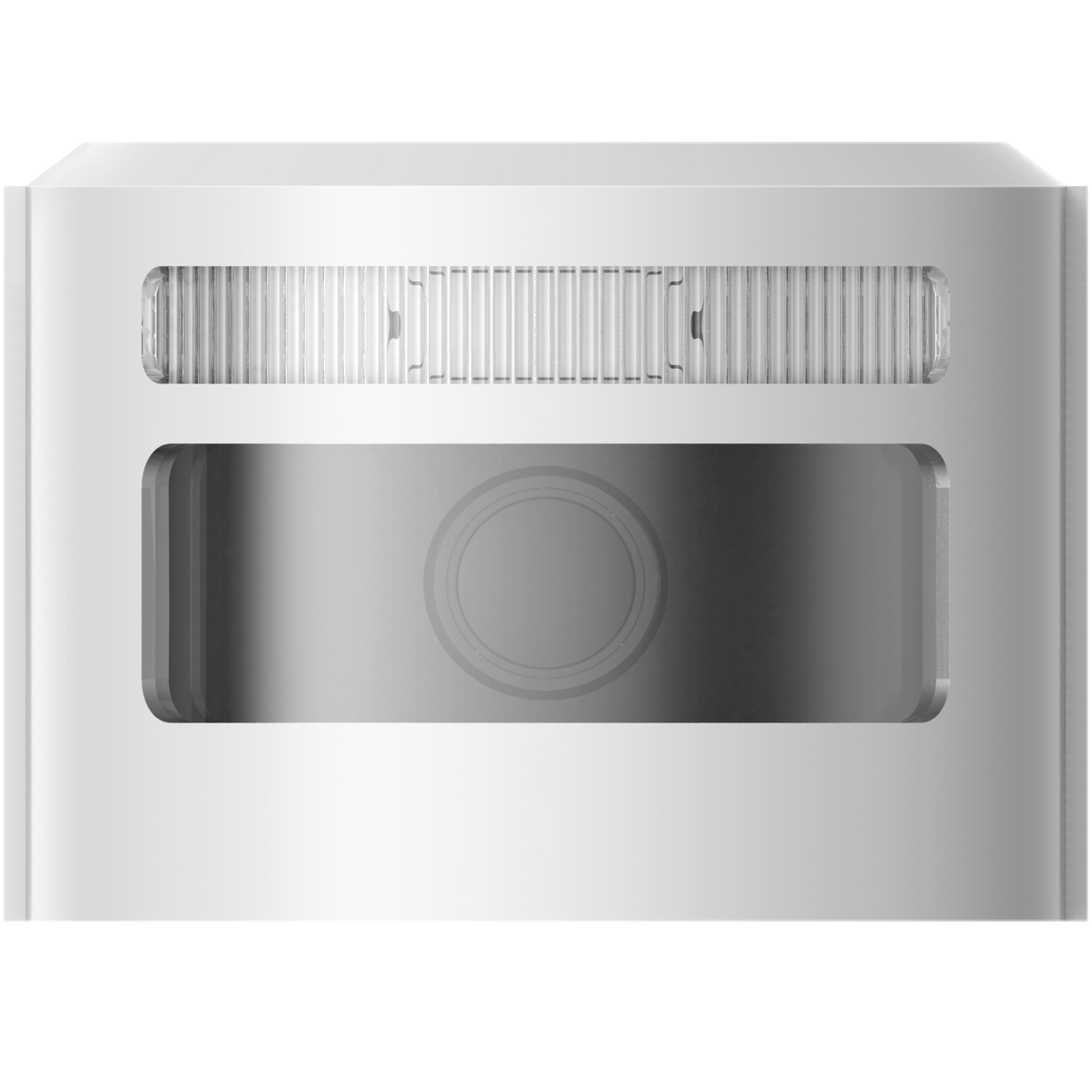

AX Pro DS-PDCM15PF-IR | Detector

AX Pro DS-PDCM15PF-IR | Detector

Category: Wired
|
Brand: AX Pro
  • Wired
  • Wireless Intrusion Alarm
  • AX PRO Series

Detection range:15m 90°；Infrared Light

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PDCM15PF-IR | Detector
Login to View Price

Specifications

  • Detection Method: Video Verification
  • Digital Noise Reduction: 3D
  • Focal length: 2.0mm@F2.25
  • Image Sensor: OS02D20
  • Field Angle: 137.2°(H), 80.1°(V)
  • Image Type: JPEG
  • Resolusion: 640*480;320*240;160*120
  • Frame Rate: 2
  • Fill Light: Infrared Light
  • Fill Range: 15m
  • Day/Night Switch: Auto
  • Communication Interface: 1 12-Bit Data Interface
  • Power Supply: 3 VDC
  • Power Consumption: 1200mA
  • Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • IP Rate: IP66
  • Dimension(WxHxD): 74.1mm x 72.35mm x 53mm
  • Weight: 155g

Detection Performance
  • Detection Method: Video Verification

Feature
  • Digital Noise Reduction: 3D
  • Focal length: 2.0mm@F2.25

Video
  • Image Sensor: OS02D20
  • Field Angle: 137.2°(H), 80.1°(V)
  • Image Type: JPEG
  • Resolusion: 640*480;320*240;160*120
  • Frame Rate: 2
  • Fill Light: Infrared Light
  • Fill Range: 15m
  • Day/Night Switch: Auto

Interface
  • Communication Interface: 1 12-Bit Data Interface

Electrical Characteristics
  • Power Supply: 3 VDC
  • Power Consumption: 1200mA

General
  • Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • IP Rate: IP66
  • Dimension(WxHxD): 74.1mm x 72.35mm x 53mm
  • Weight: 155g
