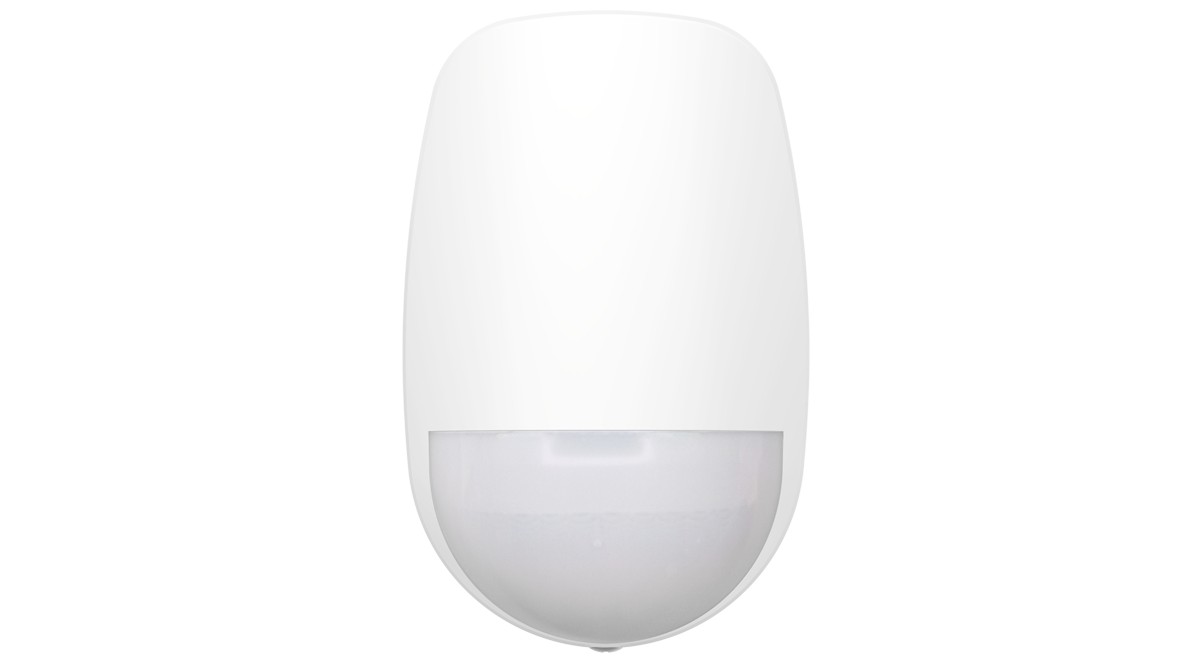

AX Pro DS-PDD12P-EG2-WE | Detector
AX Pro DS-PDD12P-EG2-WE | Detector
- Wireless
- Detector
Dual-tech;Detection range:12m 85.9°;30Kg pet immunity;CR123A;868MHz;EN G2
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDD12P-EG2-WE | Detector
Specifications
- Weight: 141 g
- Detection Method: Passive Infrared, Microwave
- Detection Range: 12m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3~2m/s
- Sensitivity: Auto, High, Pet
- Pet Immunity: 30Kg
- White Light Filter: 6500lux
- Microwave Frequency: 24GHz (24.15~24.25GHz)
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front, Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Power Switch: Power Up Enrolling
- LED Indicator: Green (PIR), Red (Microwave), Blue (Alarm)
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1.6Km
- Frequency Hopping: Support
- Enrolling Method: Power up, Remote ID, QR Code
- Power Supply: Battery Powered
- Battery Type: CR123A x 2
- Typical Voltage: 3V
- Standard Battery Life: 5 Years
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 65.5 mm x 103 mm x 48.5 mm
- Mounting Height: 1.8 m to 2.4 m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional Wall & Ceiling Accessory
