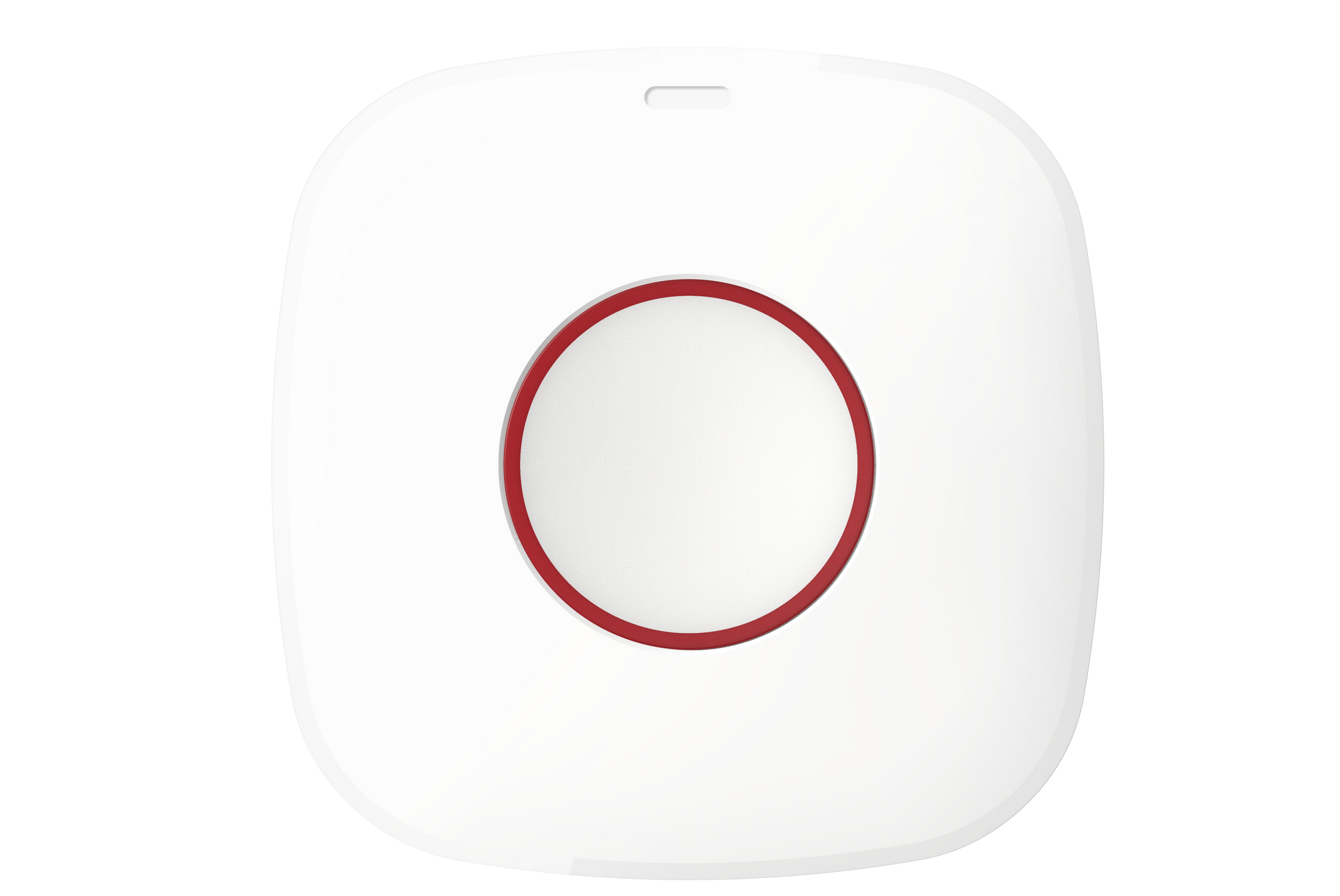

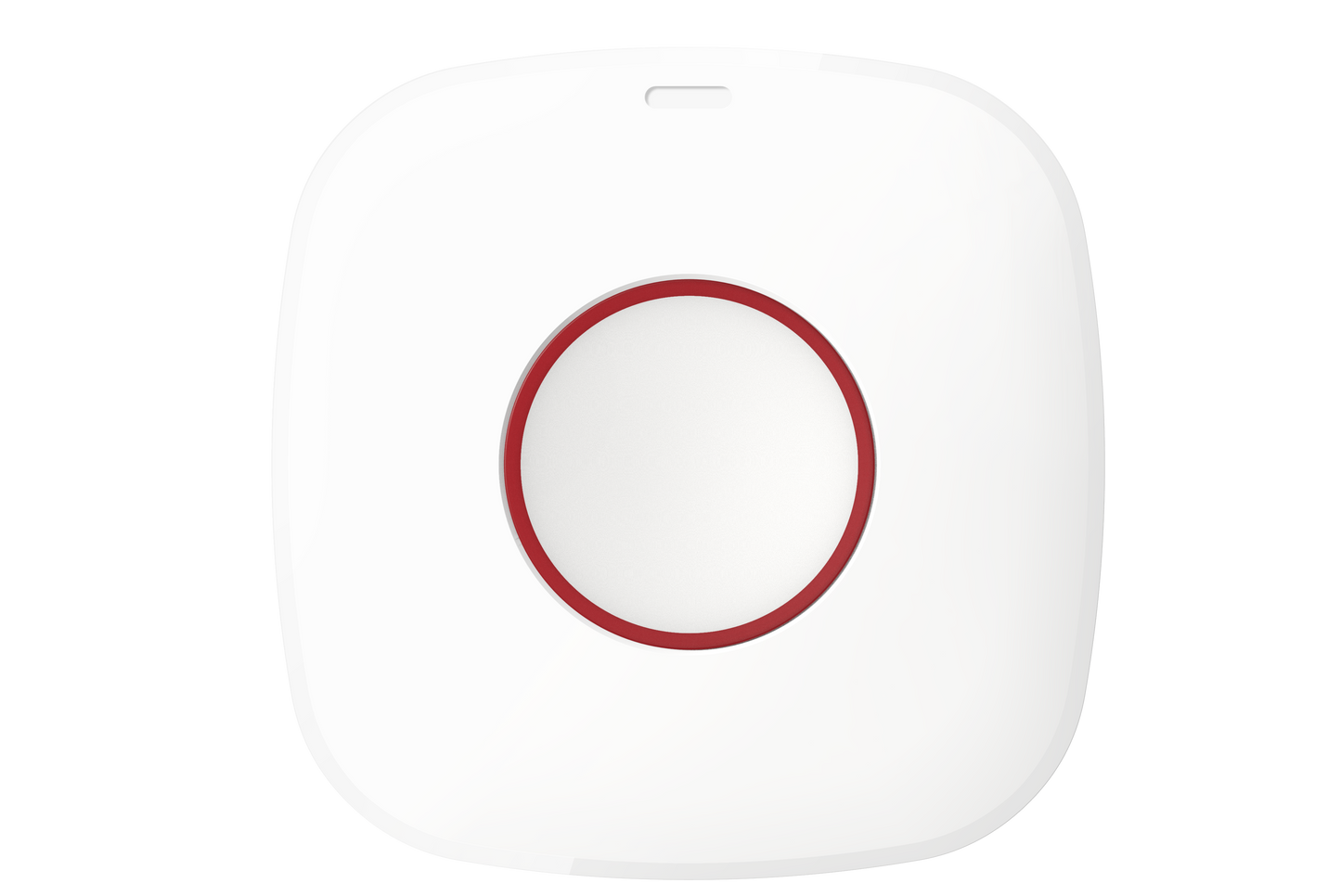

• DS-PDEB1-EG2-WE(B)

AX Pro DS-PDEB1-EG2-WE(B) | Peripheral

AX Pro DS-PDEB1-EG2-WE(B) | Peripheral

Category: Wireless
|
Brand: AX Pro
  • Wireless
  • Wireless Intrusion Alarm
  • AX PRO Series

Single button;CR2450;868MHz; IP66

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PDEB1-EG2-WE(B) | Peripheral
Login to View Price

Specifications

  • Button: 1
  • Tamper Protection: Front;Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support
  • LED Indicator: Blue (alarm)
  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 868MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range(Free Space): 1.2 km
  • Frequency Hopping: Support
  • Enrolling Method: Power up;Remote ID;QR Code
  • Standard Battery Life: Up to 3 years (standby time)
  • Power Supply: Battery powered
  • Battery Type: CR2450 x 1
  • Typical Voltage: 3V
  • Operation Temperature: -10°C to 55°C (14°F to 131°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operation Humidity: 10% to 90%
  • IP Rate: IP66
  • Dimension(WxHxD): 63.8 mm × 63.8 mm × 18.4 mm
  • Weight: 57.5 g
  • Mounting Method: Wall
  • Application Scenario: Indoor, Humid environment especially

Feature
  • Button: 1
  • Tamper Protection: Front;Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface
  • LED Indicator: Blue (alarm)

Transmission
  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 868MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range(Free Space): 1.2 km
  • Frequency Hopping: Support
  • Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics
  • Standard Battery Life: Up to 3 years (standby time)
  • Power Supply: Battery powered
  • Battery Type: CR2450 x 1
  • Typical Voltage: 3V

General
  • Operation Temperature: -10°C to 55°C (14°F to 131°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operation Humidity: 10% to 90%
  • IP Rate: IP66
  • Dimension(WxHxD): 63.8 mm × 63.8 mm × 18.4 mm
  • Weight: 57.5 g
  • Mounting Method: Wall
  • Application Scenario: Indoor, Humid environment especially

Resources

Access comprehensive documentation, installation guides, and the latest updates to get the most out of your device.

Need additional support? Visit our

documentation center or contact support
