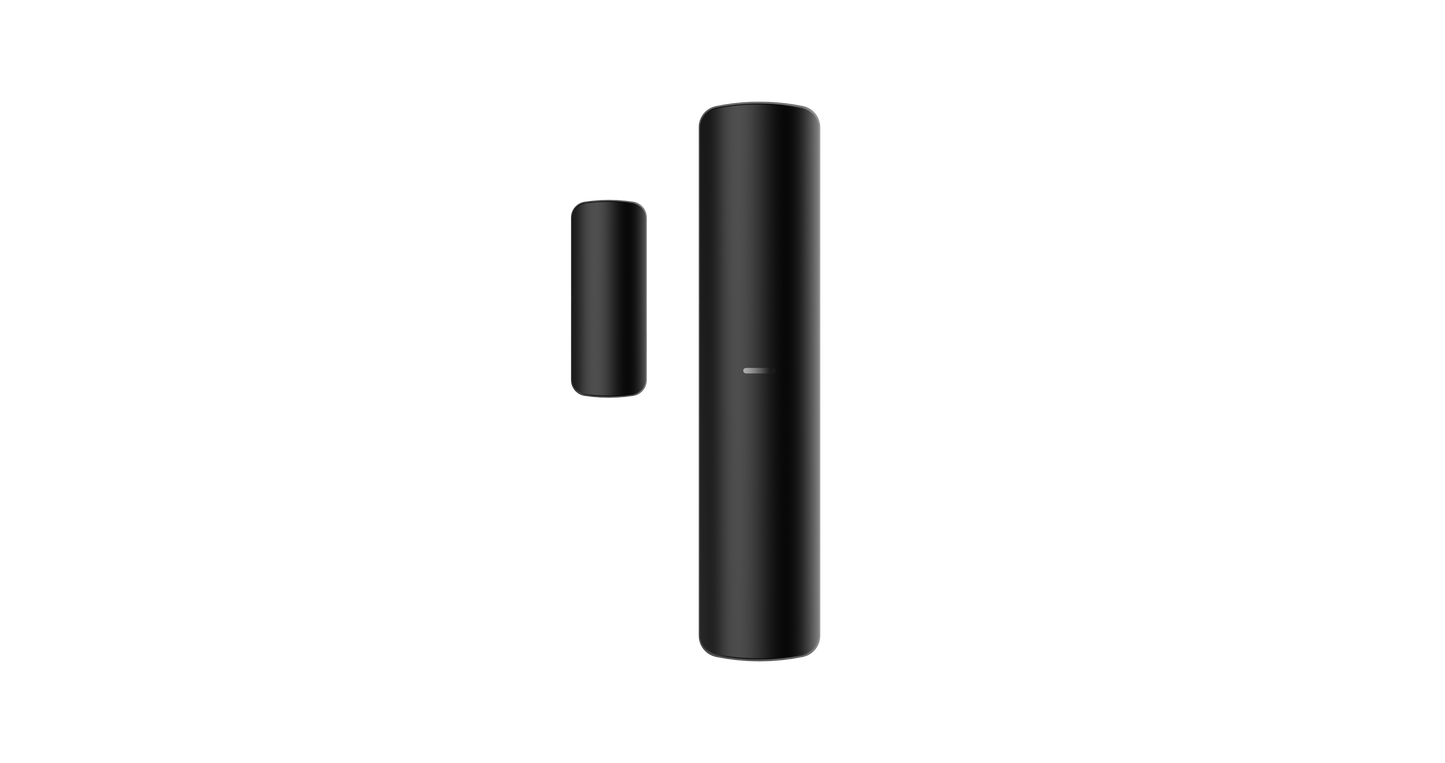

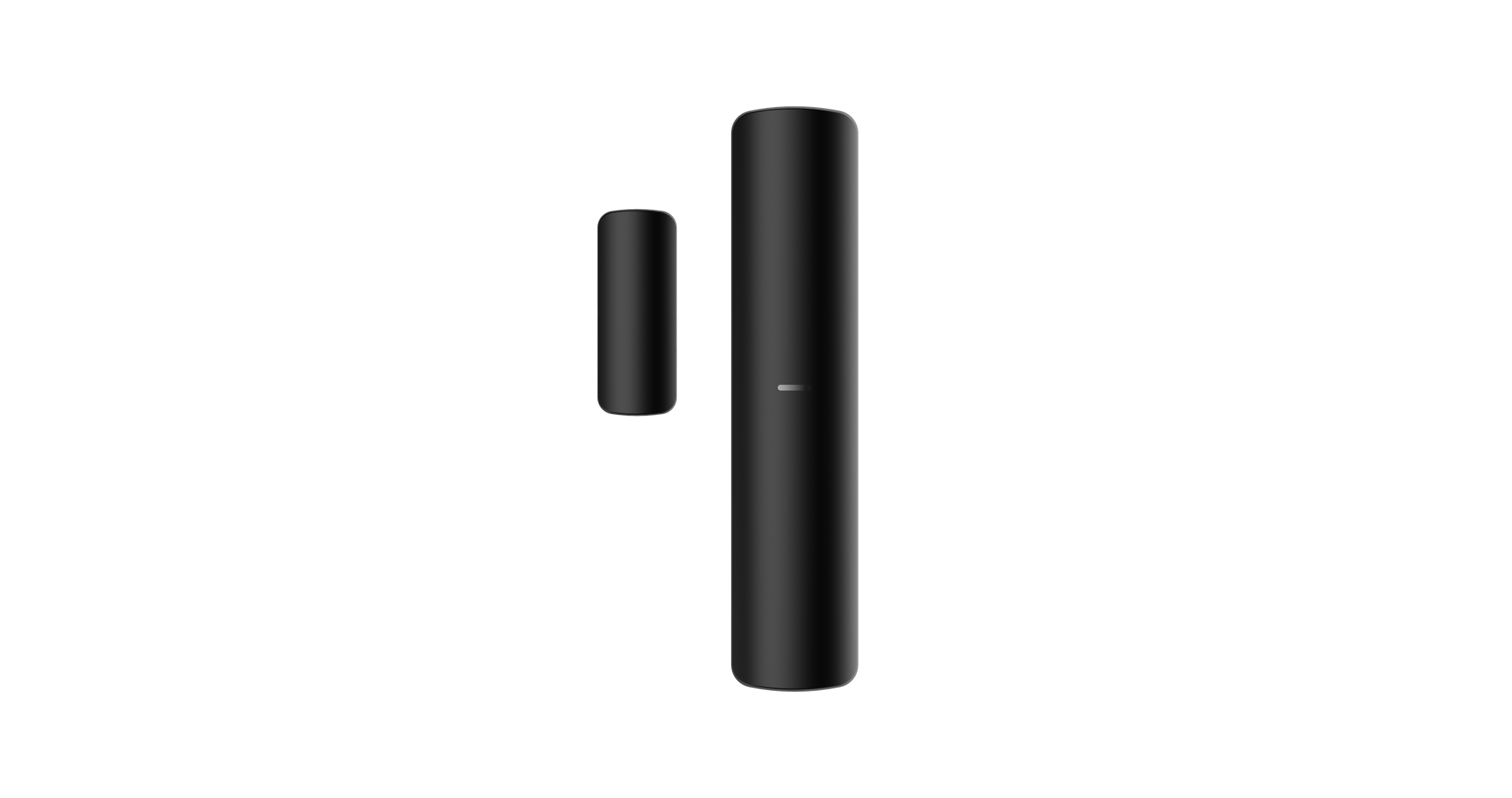

AX Pro DS-PDMC-EG2-WE(B)/Black | Detector
AX Pro DS-PDMC-EG2-WE(B)/Black | Detector
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
Two-wire HD version: 7“ Touch-Screen Indoor Station,
7-inch Colorful TFT LCD, display resolution: 1024 * 600;
Wi-Fi 802.11b/g/n;
6 decimal DIP switch;
Two -wire interface.
TF card, max 128G; 4 indicators;
1 floor call
The model with is not compatible with Y version，they can not be used together.
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDMC-EG2-WE(B)/Black | Detector
Specifications
- Detection Method: Opening Contact
- Detection Gap: 43 mm Max
- Digital Processing: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Alarm Input: Normally Closed;Normally Open;Impulse Count
- Power Switch: Power up enrolling
- LED Indicator: Blue (alarm)
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 1.6 km
- Frequency Hopping: Support
- Enrolling Method: Power up;Remote ID;QR Code
- Standard Battery Life: Up to 5 years (standby time)
- Power Supply: Battery powered
- Battery Type: CR123A x 1
- Typical Voltage: 3V
- Operation Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): 24mm × 104mm × 24.4mm 13 mm × 34.4 mm × 11.4 mm
- Weight: 59 g
- Application Scenario: Indoor
