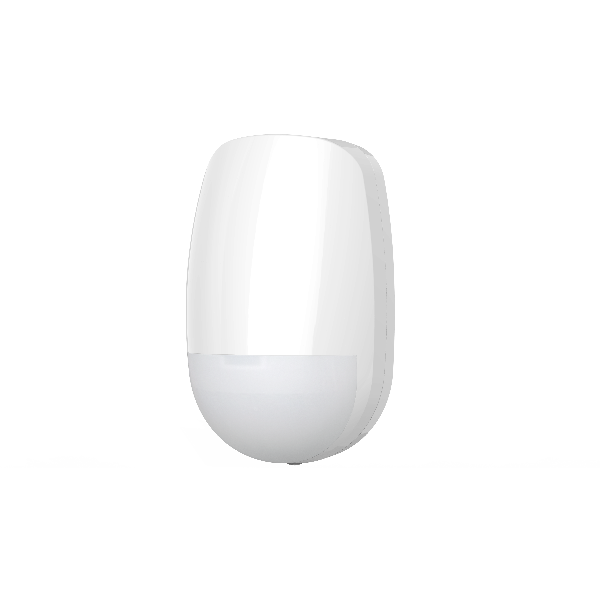

AX Pro DS-PDP15P-EG2-WE(B) | Detector
AX Pro DS-PDP15P-EG2-WE(B) | Detector
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
Reads Desfire, Felica card number, M1 card,
Supports bluetooth module
Supports RS485 OSDP and Wiegand W26/W34 protocol
Tamper-proof alarm, IP 65
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDP15P-EG2-WE(B) | Detector
Specifications
- Detection Method: Passive Infrared
- Sensor Model: SFG321-711
- Detection Range: 15m
- Detection Angle: 90°
- Detection Zones: 84
- Detectable Speed: 0.3～2m/s
- Sensitivity: High;Auto;Pet
- Pet Immunity: 30 kg
- White Light Filter: 6500lux
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Power Switch: Power Up Enrolling
- LED Indicator: Blue (Alarm)
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 1.6 km
- Frequency Hopping: Support
- Enrolling Method: Power up;Remote ID;QR Code
- Standard Battery Life: Up to 5 years (standby time)
- Power Supply: Battery Powered
- Battery Type: CR123A × 1
- Typical Voltage: 3V
- Operation Temperature: -10°C to 55°C (14 °F to 131 °F)
- Storage Temperature: -20°C to 60°C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): 65.5 mm × 103 mm × 48.5 mm
- Weight: 128 g
- Mounting Height: 1.8 m to 2.4 m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional Wall & Ceiling Accessory
