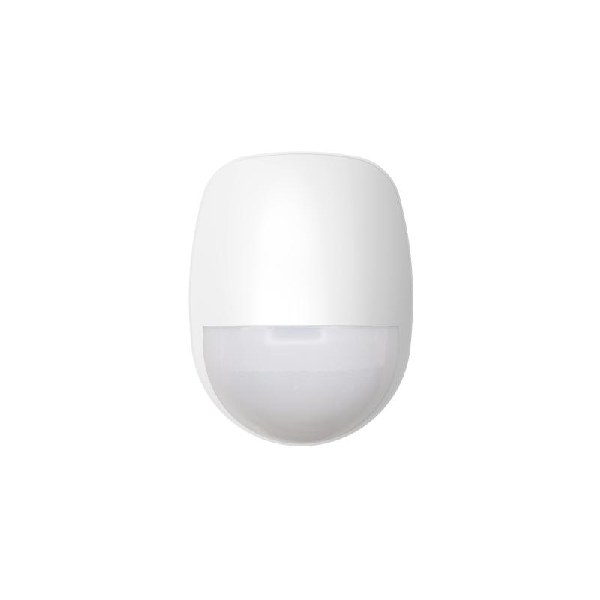

• AX Pro DS-PDP18-EG2(B) | Detector

AX Pro DS-PDP18-EG2(B) | Detector

AX Pro DS-PDP18-EG2(B) | Detector

Category: Wired
|
Brand: AX Pro
  • Wired
  • Wired Intrusion Alarm
  • General Wired Detectors

Detection range:18m 85.9°;NC;10Kg pet immunity;9-16 VDC;EN G2

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PDP18-EG2(B) | Detector
Login to View Price

Specifications

  • Detection range: 18m
  • Detection Angle: 85.9°
  • Velocity range: 0.3~2m/s
  • Sensitivity adjustment: high;auto;low
  • Pet Immunity: 15KG
  • White light filter: 6500 lux
  • Digital temperature compensation: Support
  • Digital processing: Support
  • Detection method: Passive Infrared
  • Transmission method: Wired
  • Tamper-Proof: Front
  • Alarm output: Normally close
  • Indicator: Blue(alarm)
  • Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Typical voltage: 12 VDC
  • Operation humidity: 10% to 90%
  • Power supply: 9 to 16 VDC
  • Power consumption: Maximum current：12mA @12VDC Quiescent current：11mA @12VDC
  • Application scenario: Indoor
  • Dimension (W×H×D): 65.4mm × 86.8mm × 45.5mm
  • Weight: 68g
  • Mounting height: 1.8 to 2.4 m
  • Mounting method: Wall;Ceiling
  • Bracket: Optional wall & ceiling accessory
  • Sealed optics: Support
  • Shell material: PC+ABS

Detection performance
  • Detection range: 18m
  • Detection Angle: 85.9°
  • Velocity range: 0.3~2m/s
  • Sensitivity adjustment: high;auto;low
  • Pet Immunity: 15KG
  • White light filter: 6500 lux
  • Digital temperature compensation: Support
  • Digital processing: Support
  • Detection method: Passive Infrared

Communication
  • Transmission method: Wired

Software features
  • Tamper-Proof: Front

Hardware features
  • Alarm output: Normally close
  • Indicator: Blue(alarm)

Electrical characteristics
  • Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Typical voltage: 12 VDC
  • Operation humidity: 10% to 90%
  • Power supply: 9 to 16 VDC
  • Power consumption: Maximum current：12mA @12VDC Quiescent current：11mA @12VDC

General
  • Application scenario: Indoor
  • Dimension (W×H×D): 65.4mm × 86.8mm × 45.5mm
  • Weight: 68g
  • Mounting height: 1.8 to 2.4 m
  • Mounting method: Wall;Ceiling
  • Bracket: Optional wall & ceiling accessory
  • Sealed optics: Support
  • Shell material: PC+ABS
