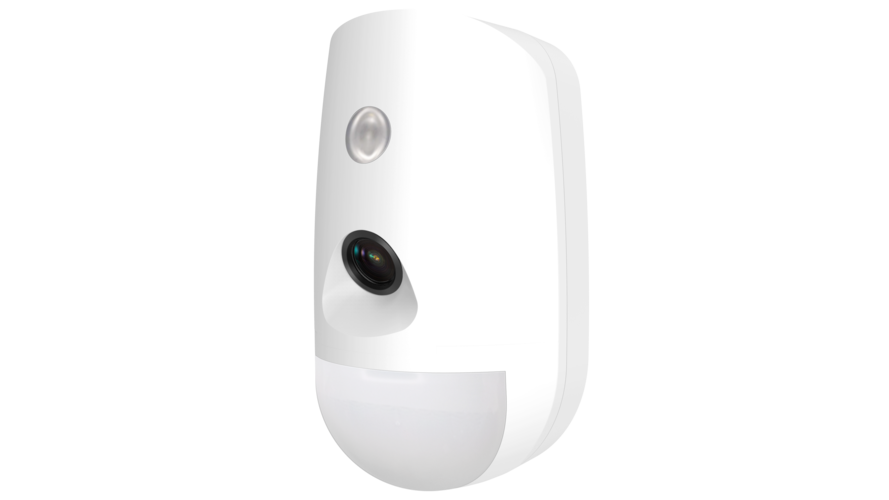

AX Pro DS-PDPC12P-EG2-WE(B) | Detector

AX Pro DS-PDPC12P-EG2-WE(B) | Detector

Category: Wireless
|
Brand: AX Pro
  • Wireless
  • Wireless Intrusion Alarm
  • AX PRO Series

Induction Loop Module. Audio transmission to hearing aids via build-in antenna
Simple connection to the KD8003 series door station
Indicate the device status: Calling, opening door and two-way audio

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PDPC12P-EG2-WE(B) | Detector
Login to View Price

Specifications

  • Detection Method: Passive Infrared;Video Verification
  • Sensor Model: SFG321-711
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3～2m/s
  • Sensitivity: High;Auto;Pet
  • Pet Immunity: 30 kg
  • White Light Filter: 6500lux
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support
  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front;Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support
  • Image Sensor: OS02D20
  • Field Angle: 88.4°(H), 54.0°(V)
  • Image Type: JPEG
  • Resolusion: 160*120;320*240;640*480
  • Frame Rate: 2 Frame/s
  • Fill Light: Infrared Light
  • Fill Range: 12m
  • Day/Night Switch: Color/Black & White
  • Power Switch: Power Up Enrolling
  • LED Indicator: Blue(Alarm)
  • Transmission Technology: CAM-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 868MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range(Free Space): 800 m
  • Enrolling Method: Power up;Remote ID;QR Code
  • Power Supply: Battery Powered
  • Battery Type: CR123A × 3
  • Typical Voltage: 3V
  • Standard Battery Life: Up to 6 years (standby time)
  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension(WxHxD): 72.2mm × 120.5mm × 56.7mm
  • Weight: 210g
  • Mounting Height: 1.8 to 2.4m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional Wall & Ceiling Accessory

Detection Performance
  • Detection Method: Passive Infrared;Video Verification
  • Sensor Model: SFG321-711
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3～2m/s
  • Sensitivity: High;Auto;Pet
  • Pet Immunity: 30 kg
  • White Light Filter: 6500lux
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature
  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front;Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Video
  • Image Sensor: OS02D20
  • Field Angle: 88.4°(H), 54.0°(V)
  • Image Type: JPEG
  • Resolusion: 160*120;320*240;640*480
  • Frame Rate: 2 Frame/s
  • Fill Light: Infrared Light
  • Fill Range: 12m
  • Day/Night Switch: Color/Black & White

Interface
  • Power Switch: Power Up Enrolling
  • LED Indicator: Blue(Alarm)

Transmission
  • Transmission Technology: CAM-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 868MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range(Free Space): 800 m
  • Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics
  • Power Supply: Battery Powered
  • Battery Type: CR123A × 3
  • Typical Voltage: 3V
  • Standard Battery Life: Up to 6 years (standby time)

General
  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension(WxHxD): 72.2mm × 120.5mm × 56.7mm
  • Weight: 210g
  • Mounting Height: 1.8 to 2.4m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional Wall & Ceiling Accessory
