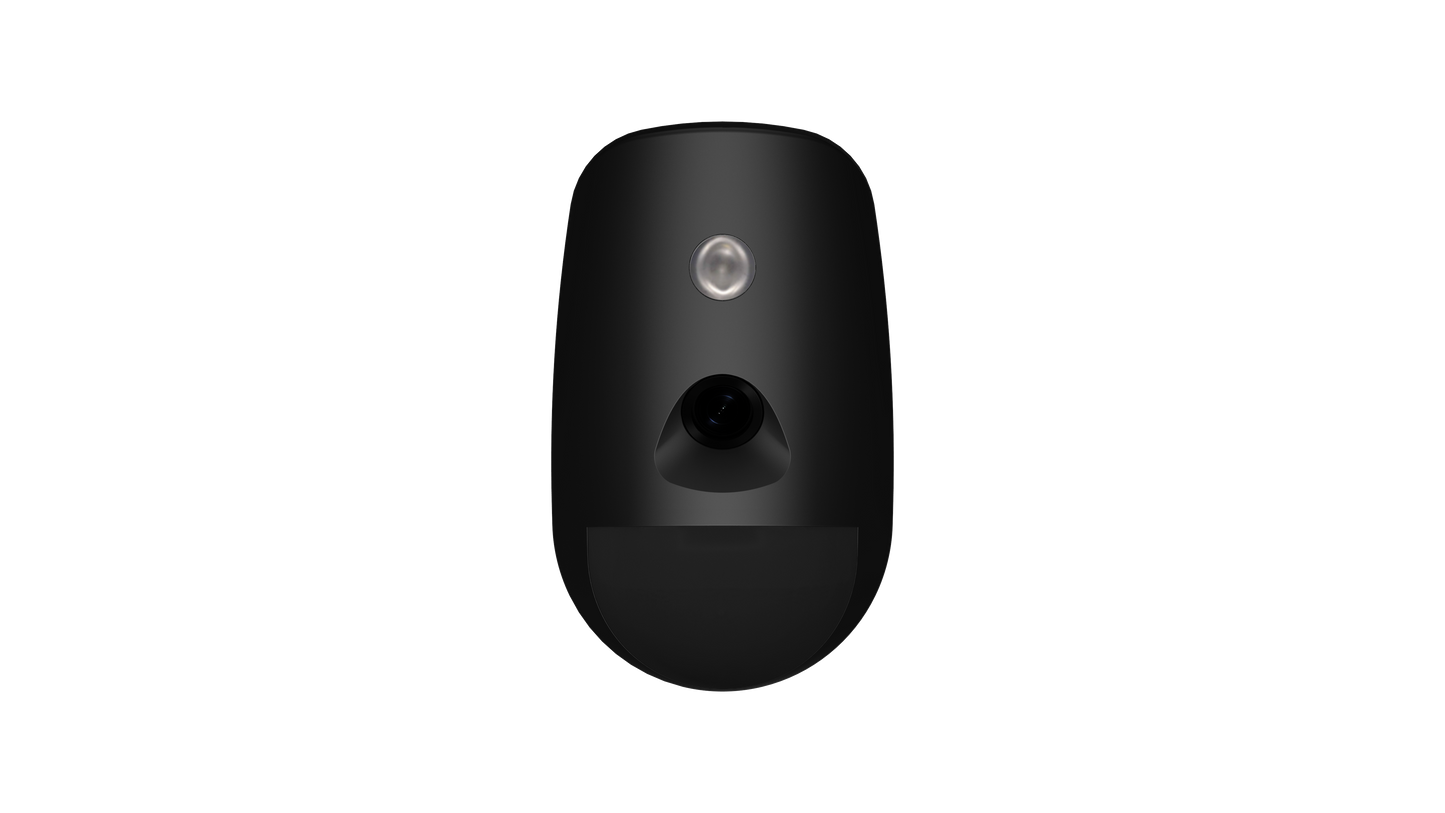

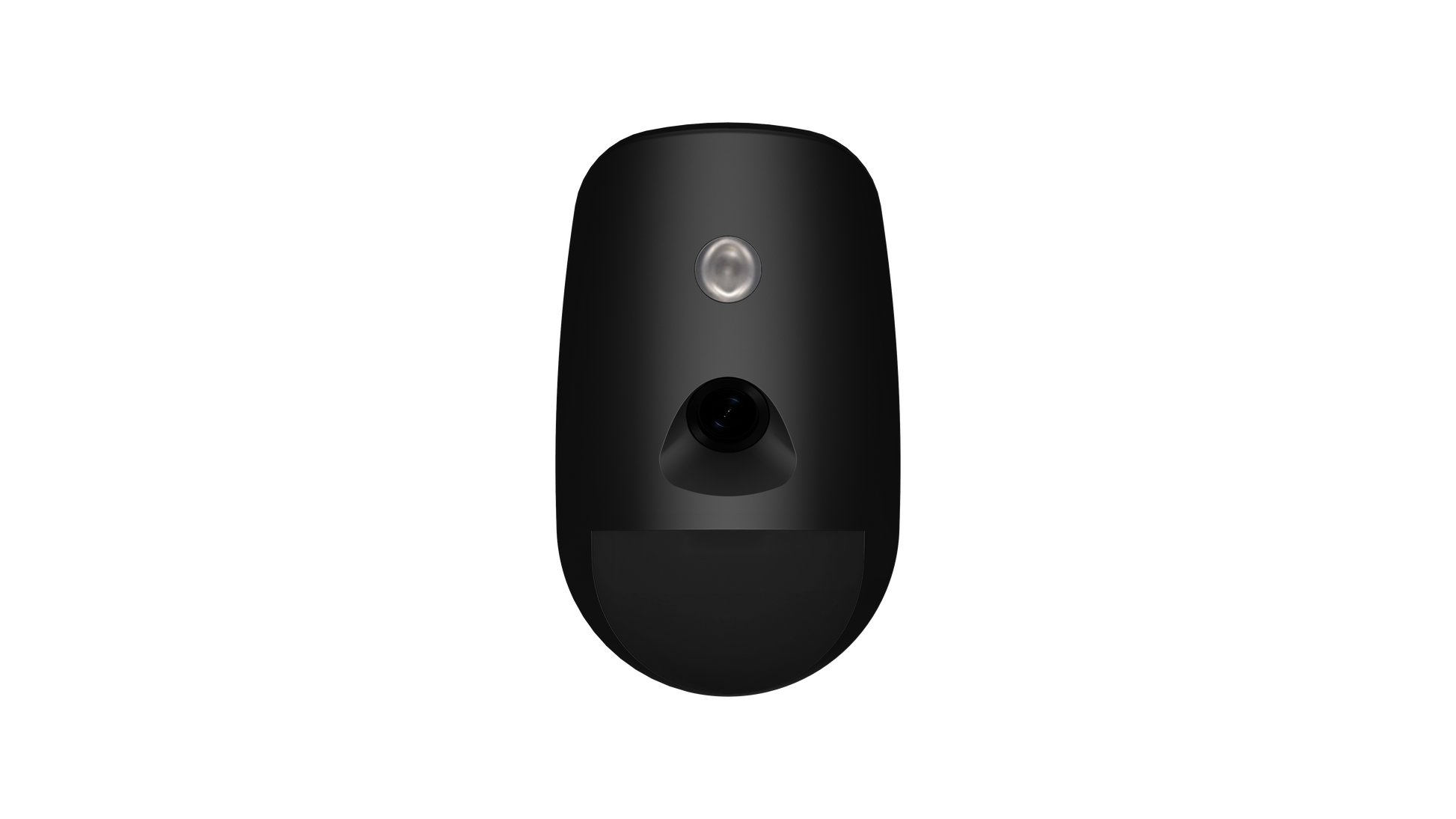

AX Pro DS-PDPC12PF-EG2-WE(B)/BLACK | Detector
AX Pro DS-PDPC12PF-EG2-WE(B)/BLACK | Detector
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
Access Control Terminal, Built-in M1 card reading module and Bluetooth module;
IP65, IK08，increased stability with aluminum alloy materials
Storage with 10,000 cards , 3,000 fingerprints and 100,000 events;
AP mode
support web PC and Moblie configuration
support mobile APP hikconnect
Uplink Communication: TCP/IP, WIFI; Downlink Communication: RS-485, wiegand;
Dimensions：57.7 mm × 177 mm × 34.6 mm 2.3 × 7.0 × 1.4
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDPC12PF-EG2-WE(B)/BLACK | Detector
Specifications
- Detection Method: Passive Infrared;Video Verification
- Sensor Model: SFG321-711
- Detection Range: 12m
- Detection Angle: 90°
- Detection Zones: 52
- Detectable Speed: 0.3～2m/s
- Sensitivity: High;Auto;Pet
- Pet Immunity: 30Kg
- White Light Filter: 6500lux
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Image Sensor: OS02D20
- Field Angle: 88.4°(H), 54.0°(V)
- Image Type: JPEG
- Resolusion: 160*120;320*240;640*480
- Frame Rate: 2
- Fill Light: White Light
- Fill Range: 12m
- Day/Night Switch: Color
- Power Switch: Power Up Enrolling
- LED Indicator: Blue(Alarm)
- Transmission Technology: CAM-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 800m
- Enrolling Method: Power up;Remote ID;QR Code
- Standard Battery Life: Up to 6 years (standby time)
- Power Supply: Battery Powered
- Battery Type: CR123A × 3
- Typical Voltage: 3V
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension(WxHxD): 72.2mm × 120.5mm × 56.7mm
- Weight: 220g
- Mounting Height: 1.8 to 2.4m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional Wall & Ceiling Accessory
