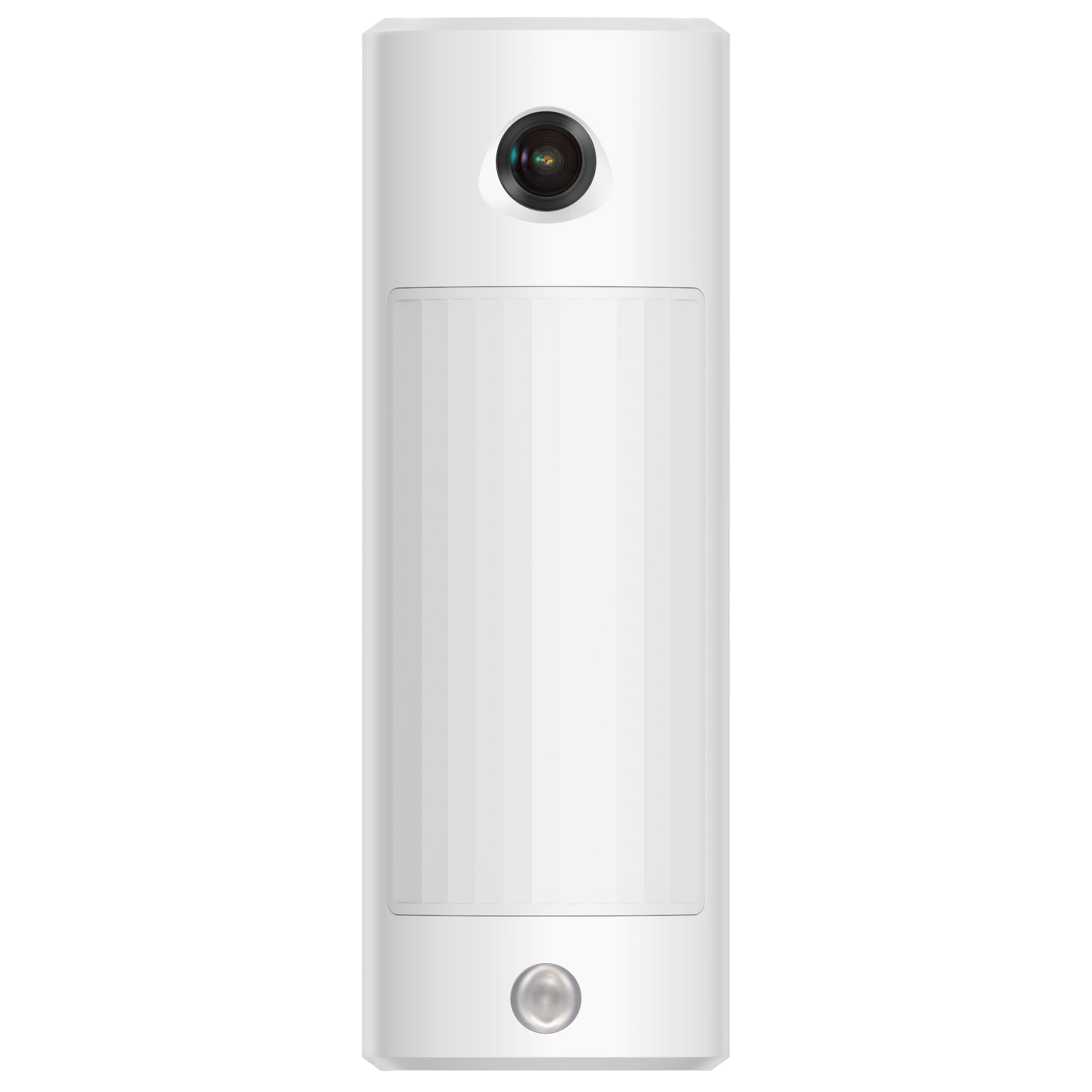

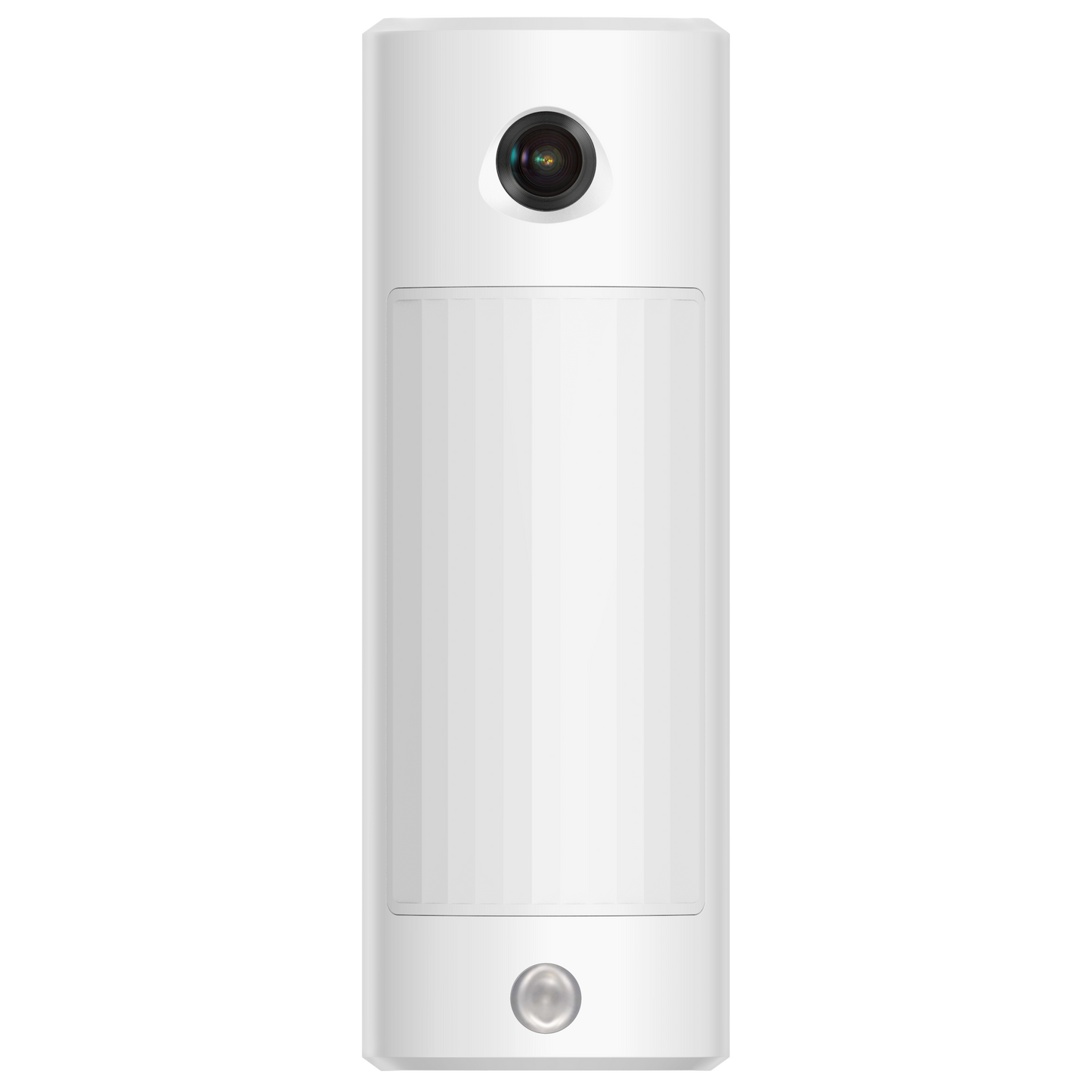

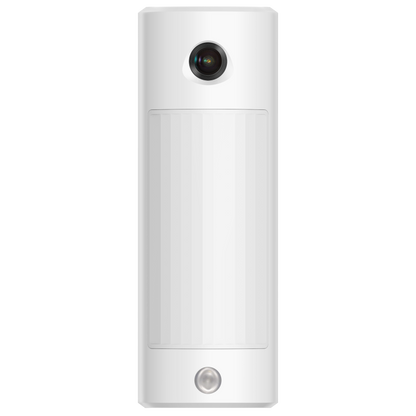

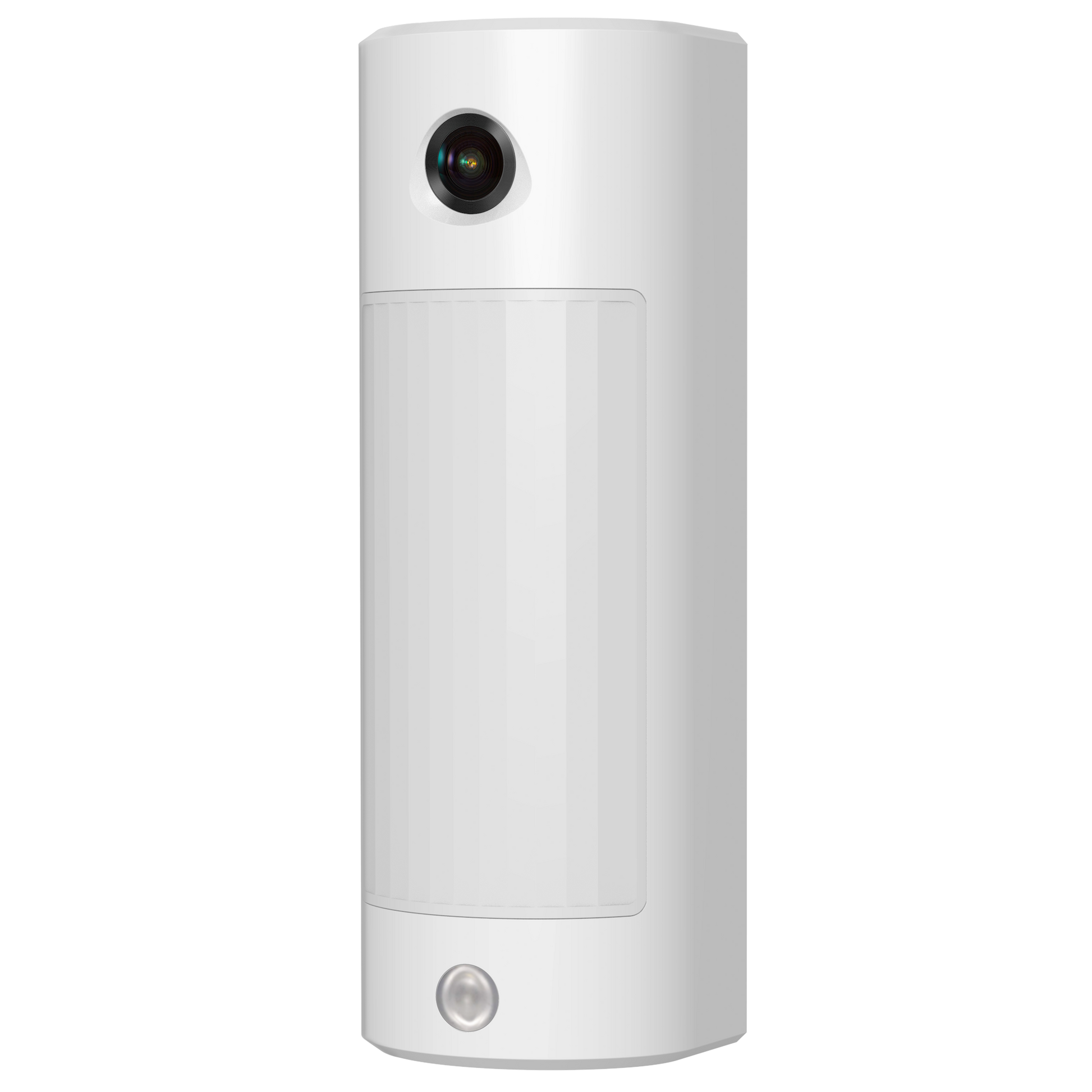

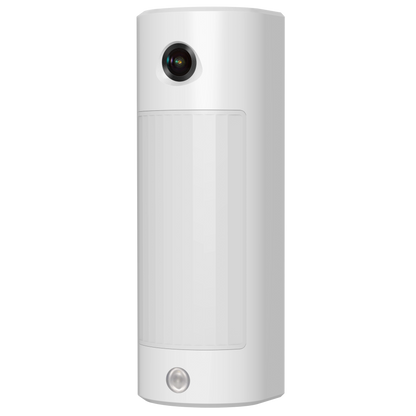

AX Pro DS-PDPC18-HM-WE | Detector
AX Pro DS-PDPC18-HM-WE | Detector
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
Double PIR;Detection range:18m 90°;24Kg pet immunity;CR123A;868MHz
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PDPC18-HM-WE | Detector
Specifications
- Detection Method: Passive Infrared;Video Verification
- Sensor Model: SFG321-711
- Detection Range: 18m
- Detection Angle: 90°
- Detection Zones: 118
- Detectable Speed: 0.3～2m/s
- Sensitivity: High;Auto;Low
- Pet Immunity: 24 kg
- White Light Filter: 20000lux
- Digital Temperature Compensation: Support
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Image Sensor: OS02D20
- Field Angle: 113°(H), 60°(V)
- Image Type: JPEG
- Resolusion: 160*120;320*240;640*480
- Frame Rate: 2
- Fill Light: Infrared Light
- Fill Range: 12m
- Day/Night Switch: Color/Black & White
- Power Switch: Power Up Enrolling
- LED Indicator: Blue (Alarm)
- Transmission Technology: CAM-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868MHz
- Transmission Security: AES-128 Encryption
- Transmission Range(Free Space): 800 m
- Enrolling Method: Power up;Remote ID;QR Code
- Standard Battery Life: Up to 3 years at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Power Supply: Battery powered
- Battery Type: CR123A × 4
- Typical Voltage: 3V
- Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity: 10% to 90%
- IP rate: IP65
- Dimension(WxHxD): 67.6mm × 193.4mm × 65mm
- Weight: 500g
- Mounting Height: 2.5 to 3 m high mount. 0.8 to 1.2 m low mount
- Mounting Method: Wall
- Application Scenario: Outdoor
- Bracket: Adjustment bracket included
