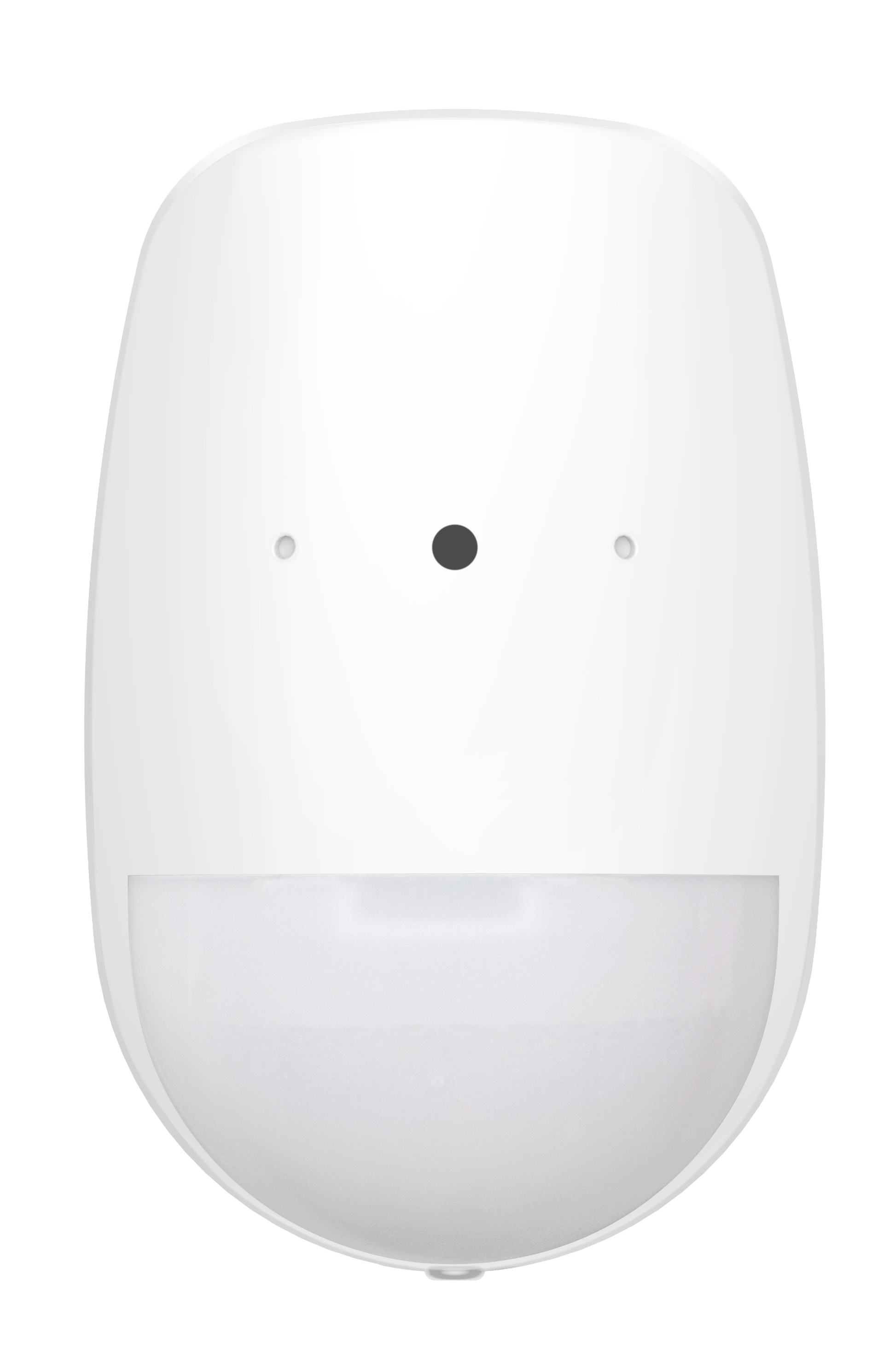

AX Pro DS-PDPG12P-EG2 | Detector

AX Pro DS-PDPG12P-EG2 | Detector

Category: Wired
|
Brand: AX Pro
  • Wired
  • Wired Intrusion Alarm
  • General Wired Detectors

Detection range:12m/8m

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PDPG12P-EG2 | Detector
Login to View Price

Specifications

  • Detection Method: Passive Infrared;Acoustic Sensor
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3～2m/s
  • Pet Immunity: 30 kg
  • White Light Filter: 6500lux
  • PIR Sensitivity: Auto,Pet
  • Glass Break Range: 8m
  • Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Thickness: 2.4mm to 6.4mm
  • Glass Break Sensitivity: Potentiometer Adjustment
  • Glass Size: 0.3m x 0.3m to 3m x 3m
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support
  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front
  • Alarm Output: Normally Closed
  • LED Indicator: Green(PIR),Red(BG),Blue(alarm)
  • Transmission Method: Wired
  • Power Supply: 9 to 16 VDC
  • Typical Voltage: 12 VDC
  • Power Consumption: Maximum current：26mA @12VDC Quiescent current：36mA@12VDC
  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension(WxHxD): 65.5mm×103mm×48.5mm
  • Weight: 98.5g
  • Mounting Height: 1.8 to 2.4m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional Wall & Ceiling Accessory

Detection Performance
  • Detection Method: Passive Infrared;Acoustic Sensor
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3～2m/s
  • Pet Immunity: 30 kg
  • White Light Filter: 6500lux
  • PIR Sensitivity: Auto,Pet
  • Glass Break Range: 8m
  • Glass Type: Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Thickness: 2.4mm to 6.4mm
  • Glass Break Sensitivity: Potentiometer Adjustment
  • Glass Size: 0.3m x 0.3m to 3m x 3m
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature
  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front

Interface
  • Alarm Output: Normally Closed
  • LED Indicator: Green(PIR),Red(BG),Blue(alarm)

Transmission
  • Transmission Method: Wired

Electrical Characteristics
  • Power Supply: 9 to 16 VDC
  • Typical Voltage: 12 VDC
  • Power Consumption: Maximum current：26mA @12VDC Quiescent current：36mA@12VDC

General
  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension(WxHxD): 65.5mm×103mm×48.5mm
  • Weight: 98.5g
  • Mounting Height: 1.8 to 2.4m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional Wall & Ceiling Accessory
