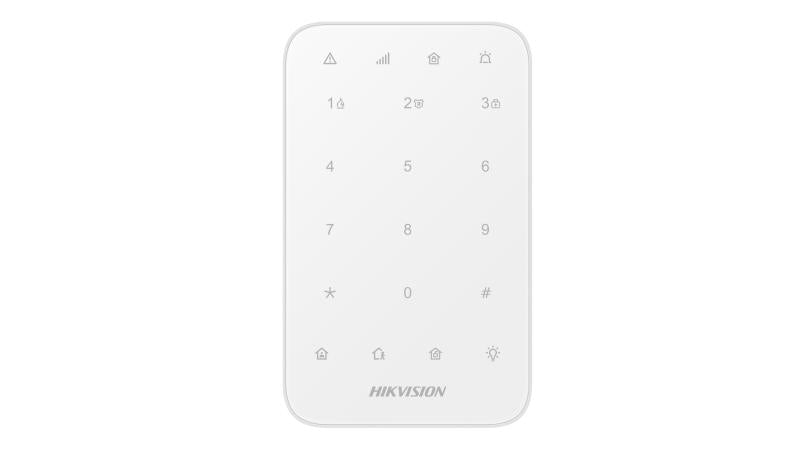

AX Pro DS-PK1-E-WE | Peripheral
AX Pro DS-PK1-E-WE | Peripheral
- Wireless
- Peripheral
LED display, 1200m RF distance, 868Mhz
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PK1-E-WE | Peripheral
Specifications
- Weight: Without batteries: 151 g (5.33 oz), and 23 g (0.81 oz) each battery
- Frequency: 868 MHz
- Modulation: 2GFSK
- Distance: 1200m (open area)
- Tamper switch: Supported, front and rear panel tamper-proof
- Power switch: Power on/off
- Buzzer: Supported
- Indicator: 4: fault (orange), enrolment/signal (red/green),arming(red/green/blue), and alarm (red)
- Backlight: white
- Key: Number key: 0 to 9Function key: *, #, stay arming, away arming, disarming,and output
- Protocol: Tri-X, two-way communication
- Consumption: 1.5 VDC
- Battery type: Four AA batteries
- Battery life span: Standby time more than two years
- Operation humidity: 10% to 90% (No condensing)
- Operation temperature: -10 °C to +55 °C (-4 °F to +122 °F)
- Colour: White
- Installation: Screw mounting
- Dimension (W x H x D): 140 (5.50") x 86 (3.38") x 22 (0.87") mm
