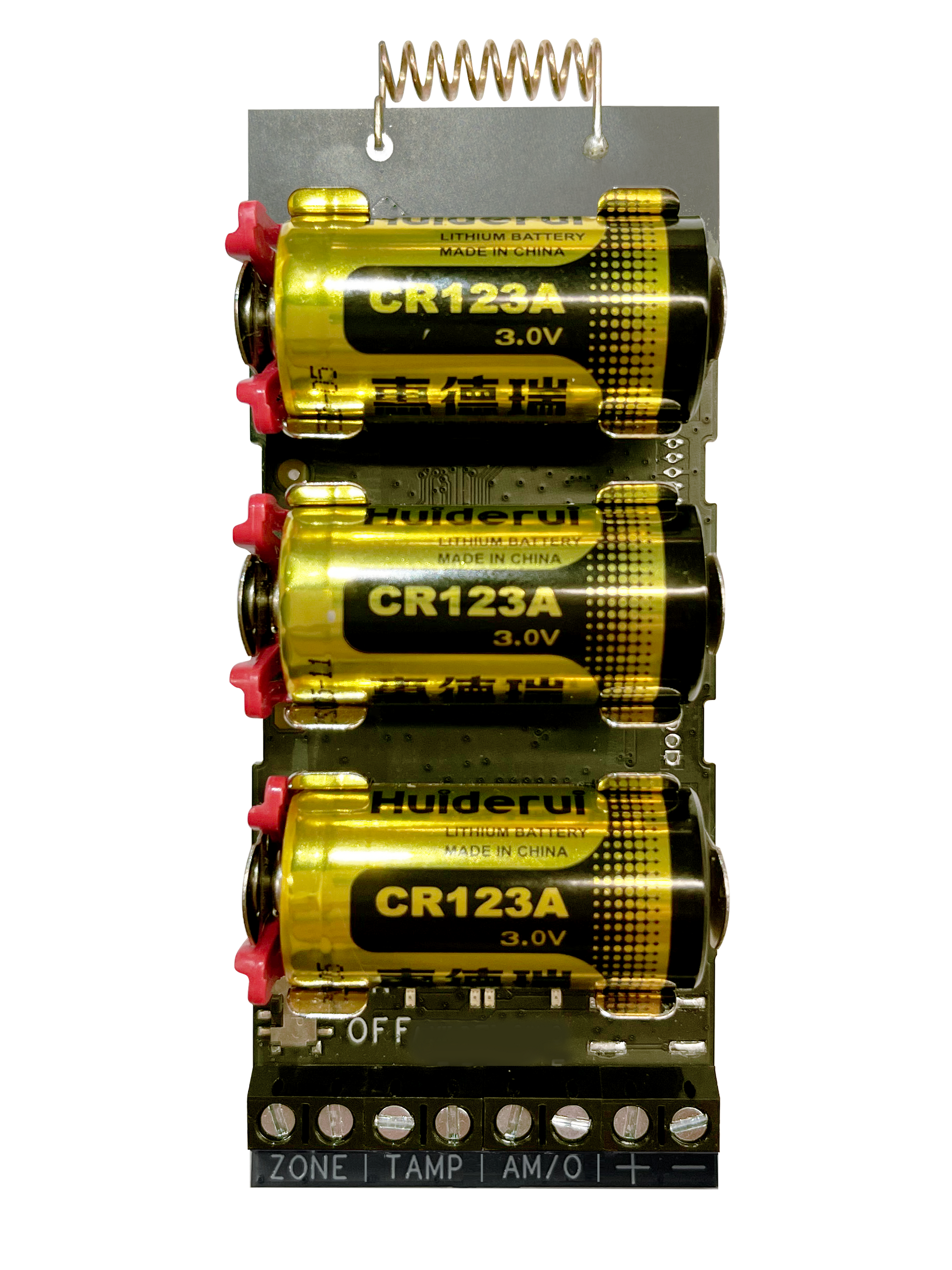

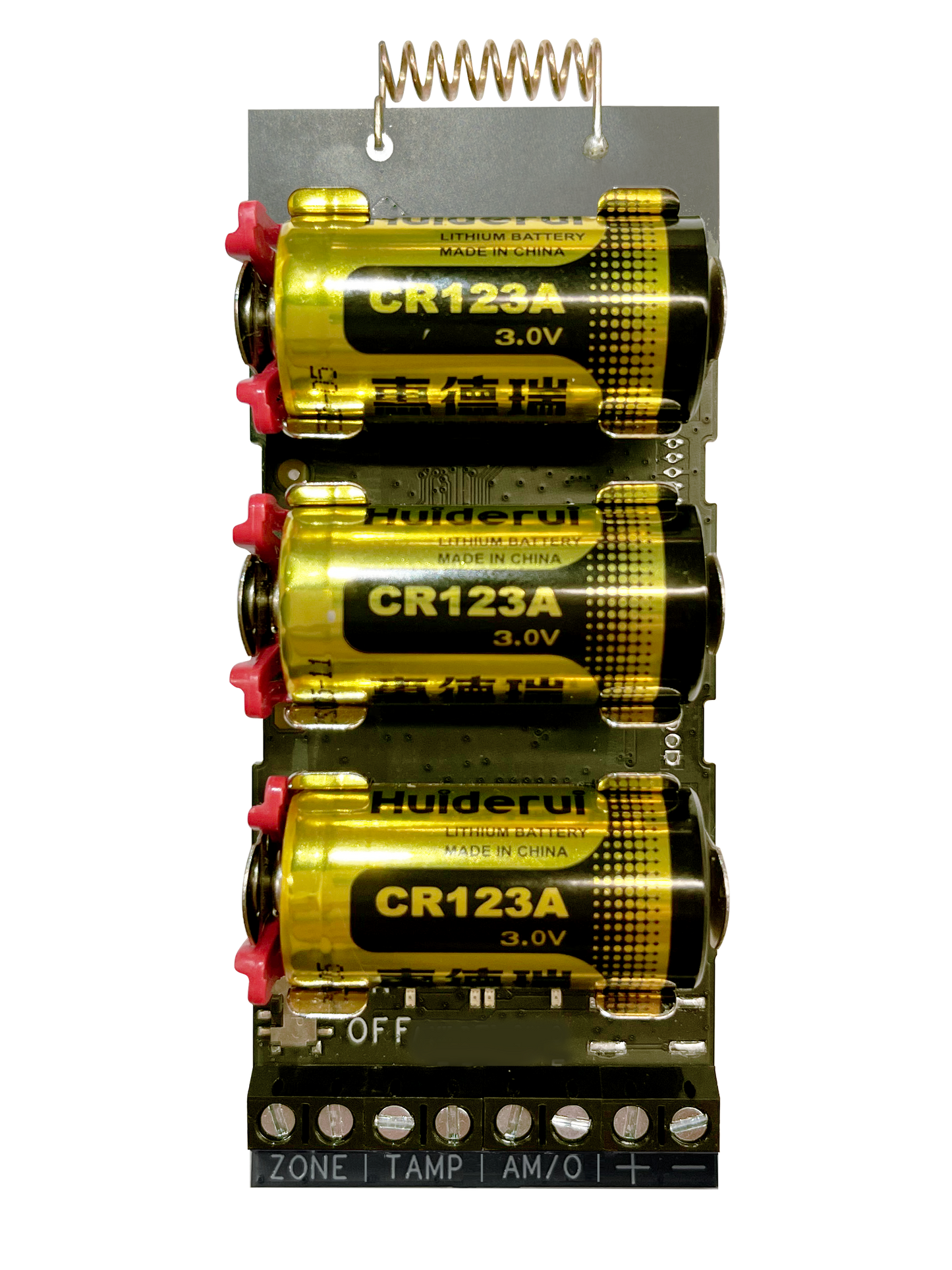

AX Pro DS-PM1-I1-WE | Accessories

AX Pro DS-PM1-I1-WE | Accessories

Category: Wireless
|
Brand: AX Pro
  • Wireless
  • Wireless Intrusion Alarm
  • AX PRO Series

Fixed base for DS-K3B501 and DS-K3B601 series

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PM1-I1-WE | Accessories
Login to View Price

Specifications

  • Serial port: 1
  • Power switch: 1
  • Alarm input: 1 Alarm, 1 Tamper
  • Alarm output: 1 PGM, AM/Output
  • 3.3v Output: 1, up to 10mA
  • Indicator: 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)
  • Power supply: 3 CR123
  • Operation humidity: 10% to 90%
  • Operation temperature: –10°C to 55°C
  • Power consumption: Quiescent current: 40.29 uA Max current: 47.85 mA Voltage: 3 VDC
  • Battery life span: Up to 5 years (standby time)
  • RF frequency: 868 MHz
  • RF method: Two-way communication
  • RF modulation: 2GFSK
  • RF distance: 1700 m
  • Installation method: Put inside wireless ready detector
  • Dimension(WxHxD): 102 mm × 41 mm × 20 mm
  • Weight: 35 g (without battery), 90 g (with battery)

Hardware features
  • Serial port: 1
  • Power switch: 1
  • Alarm input: 1 Alarm, 1 Tamper
  • Alarm output: 1 PGM, AM/Output
  • 3.3v Output: 1, up to 10mA

Display
  • Indicator: 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)

Electrical characteristics
  • Power supply: 3 CR123
  • Operation humidity: 10% to 90%
  • Operation temperature: –10°C to 55°C
  • Power consumption: Quiescent current: 40.29 uA Max current: 47.85 mA Voltage: 3 VDC
  • Battery life span: Up to 5 years (standby time)

Wireless transmission
  • RF frequency: 868 MHz
  • RF method: Two-way communication
  • RF modulation: 2GFSK
  • RF distance: 1700 m

General
  • Installation method: Put inside wireless ready detector
  • Dimension(WxHxD): 102 mm × 41 mm × 20 mm
  • Weight: 35 g (without battery), 90 g (with battery)
