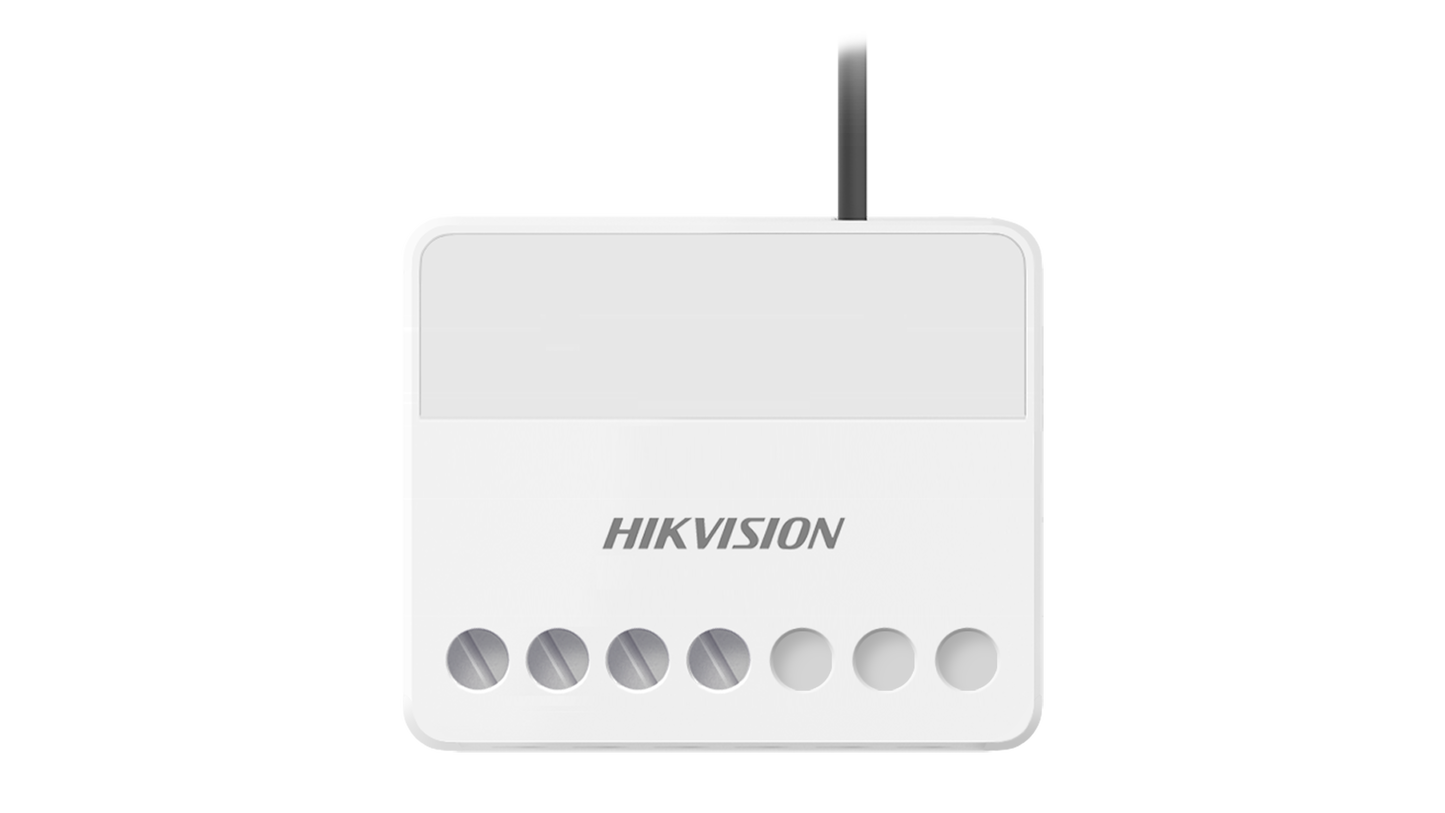

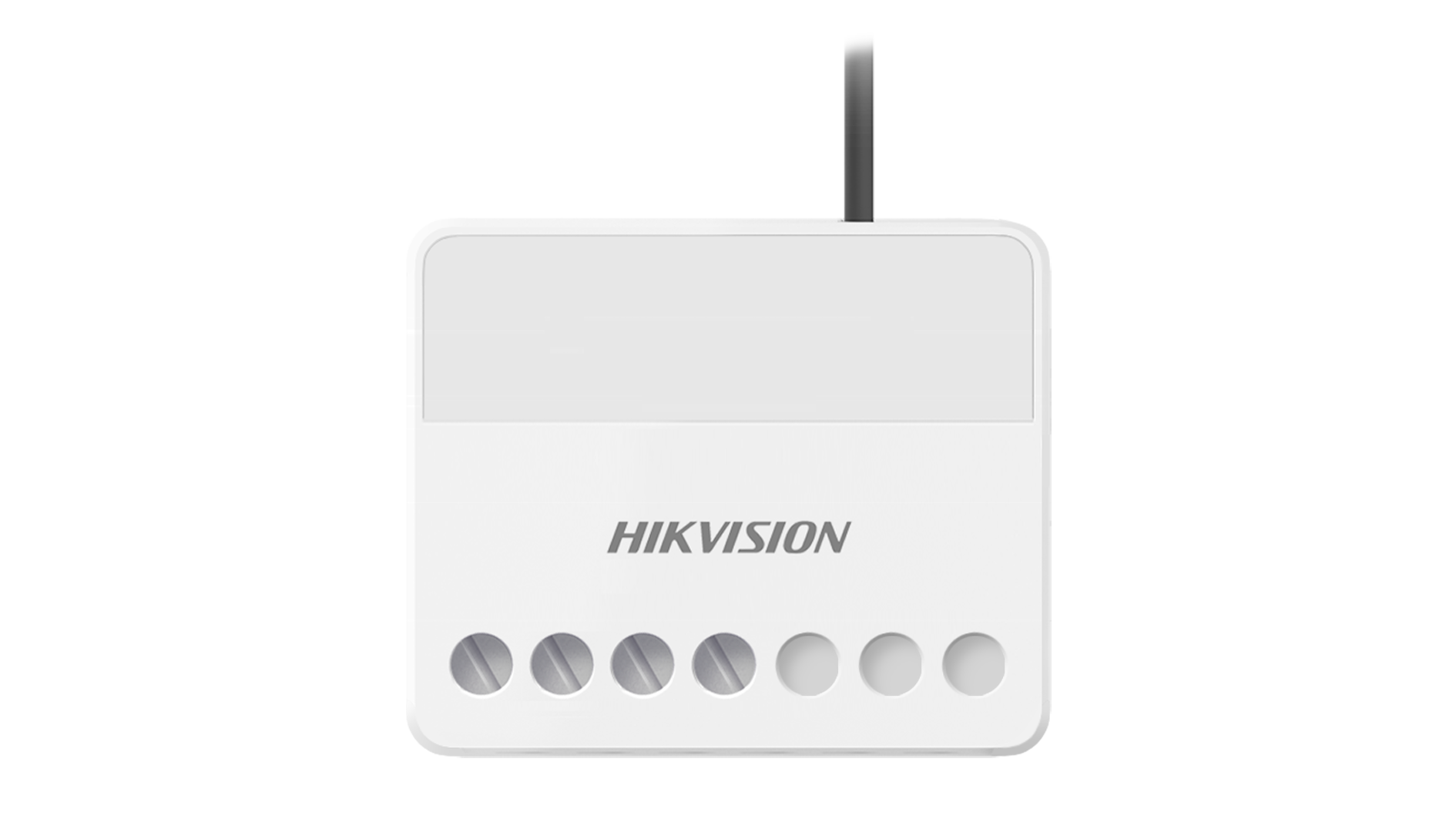

• DS-PM1-O1H-WE

AX Pro DS-PM1-O1H-WE | Peripheral

AX Pro DS-PM1-O1H-WE | Peripheral

Category: Wireless
|
Brand: AX Pro
  • Wireless
  • Wireless Intrusion Alarm
  • AX PRO Series

Fixed base for DS-K3B801SX and DS-K3B801BX series

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PM1-O1H-WE | Peripheral
Login to View Price

Specifications

  • Scenario setting: By Alarm, By Operation, By Fault, By Schedule, By Manual
  • Learning button: 1, For register
  • Serial port: 1, for debug
  • LEDs status: 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
  • Power supply: AC 100v – 240v, 50/60 HZ
  • Operation humidity: 10％~90％
  • Operation temperature: ﹣10℃~+55℃
  • RF frequency: 868MHz
  • RF method: Two way communication
  • RF modulation: 2GFSK
  • RF distance: 1600m
  • Wireless security: AES-128
  • Installation method: Wall Mounting or Inside 86 box
  • Dimension(WxHxD): 38x25x18mm
  • Shell material: Plastic
  • Color: White
  • Weight: 31.5g
  • Relay output: 1, NO/NC (AC 100~240v, Max 13A）

Software features
  • Scenario setting: By Alarm, By Operation, By Fault, By Schedule, By Manual
  • Learning button: 1, For register

Hardware features
  • Serial port: 1, for debug

Display
  • LEDs status: 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

Electrical characteristics
  • Power supply: AC 100v – 240v, 50/60 HZ
  • Operation humidity: 10％~90％
  • Operation temperature: ﹣10℃~+55℃

Wireless transmission
  • RF frequency: 868MHz
  • RF method: Two way communication
  • RF modulation: 2GFSK
  • RF distance: 1600m
  • Wireless security: AES-128

General
  • Installation method: Wall Mounting or Inside 86 box
  • Dimension(WxHxD): 38x25x18mm
  • Shell material: Plastic
  • Color: White
  • Weight: 31.5g

Device management
  • Relay output: 1, NO/NC (AC 100~240v, Max 13A）
