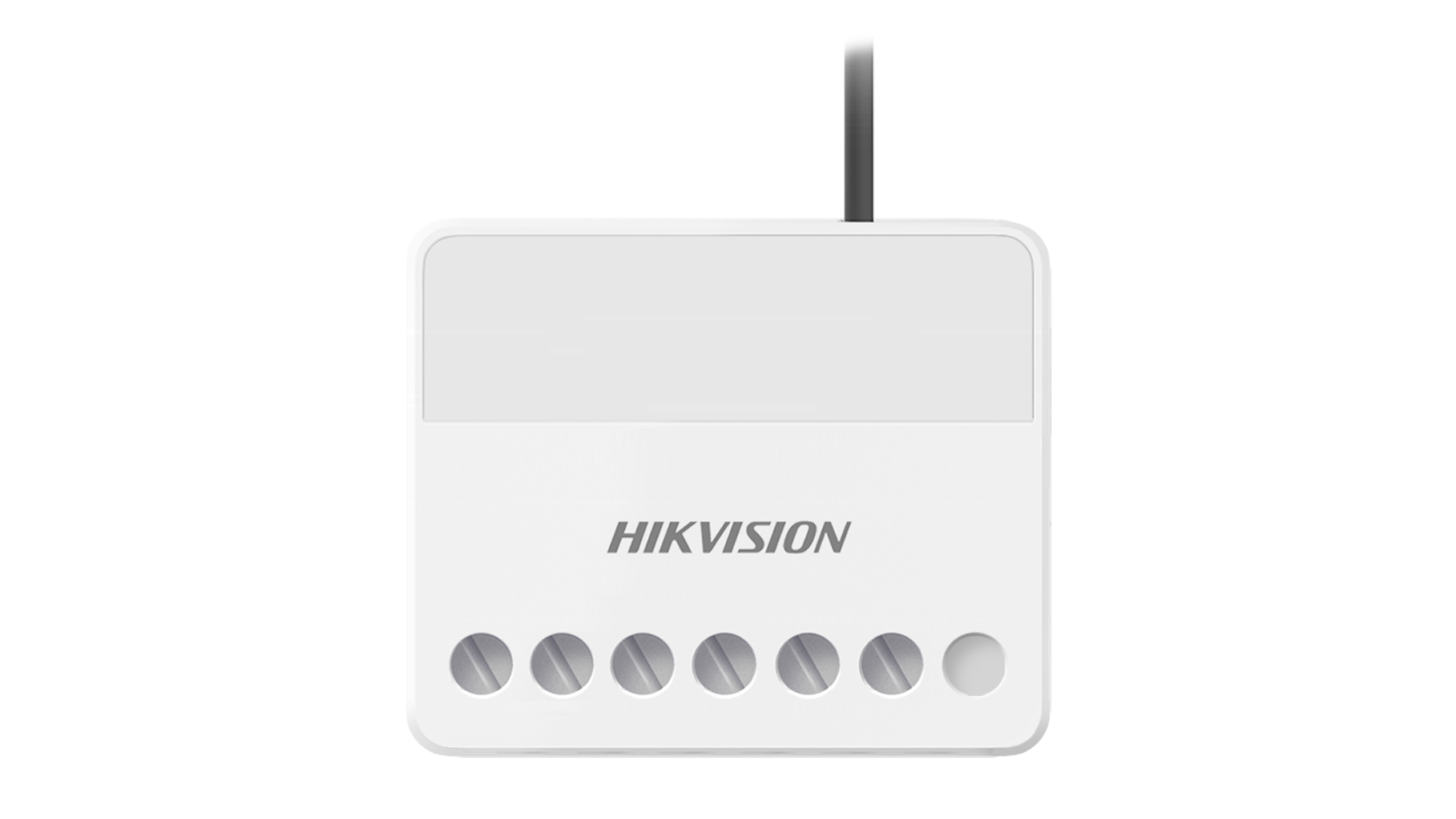

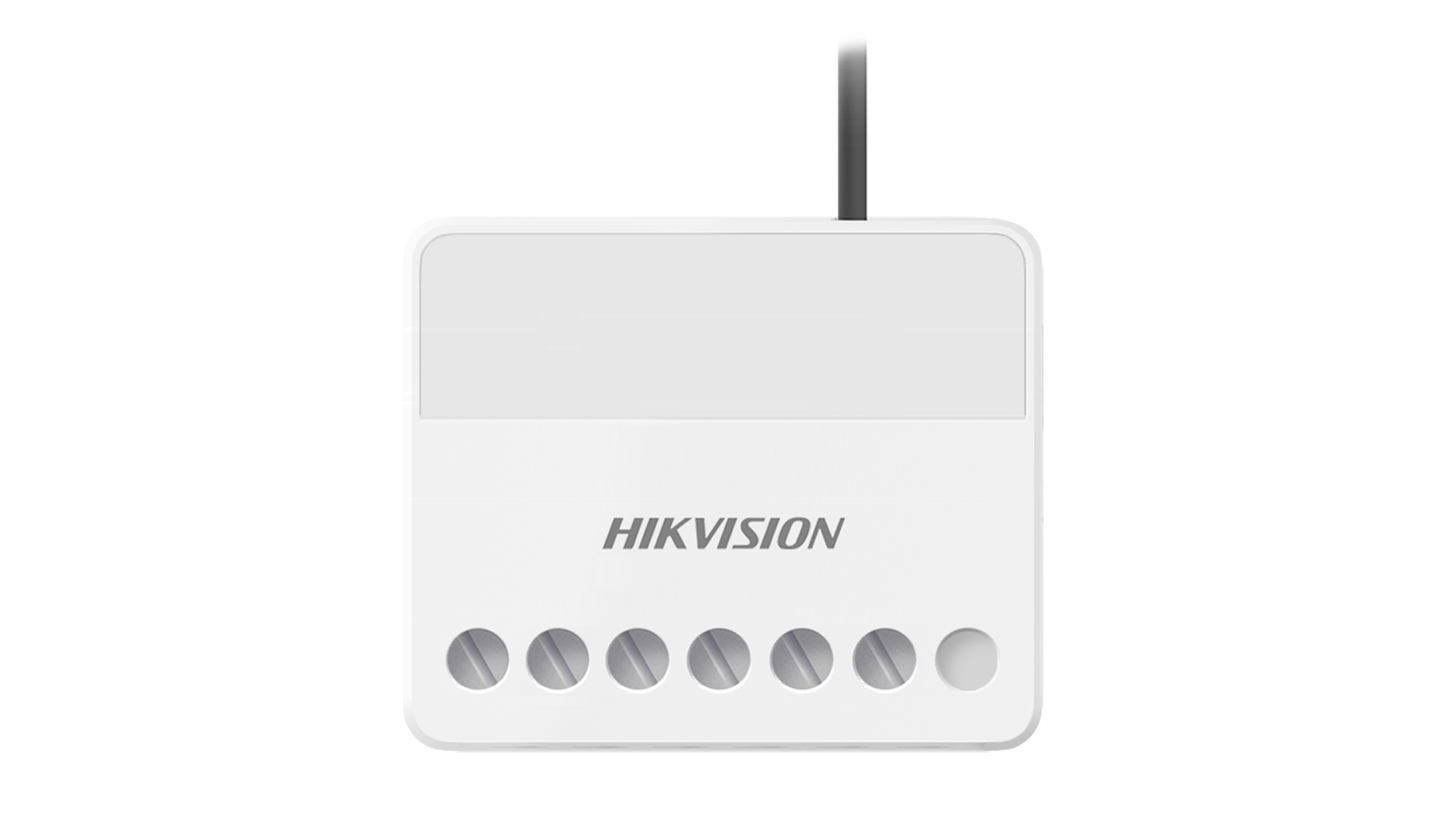

• DS-PM1-O1L-WE

AX Pro DS-PM1-O1L-WE | Peripheral

AX Pro DS-PM1-O1L-WE | Peripheral

Category: Wireless
|
Brand: AX Pro
  • Wireless
  • Wireless Intrusion Alarm
  • AX PRO Series

Door wings
Material：acrylic

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PM1-O1L-WE | Peripheral
Login to View Price

Specifications

  • Scenario setting: By alarm, by operation, by fault, by schedule, by manual
  • Learning button: 1, for register
  • Serial port: 1, for debug
  • LEDs status: 3, register/signal (green/red), power (green), relay status (blue)
  • Power supply: DC 7V to 24V
  • Operation humidity: 10% to 90%
  • Operation temperature: -10°C to 55°C
  • RF frequency: 868 MHz
  • RF method: Two-way communication
  • RF modulation: 2GFSK
  • RF distance: 1800 m
  • Wireless security: AES-128
  • Installation method: Wall-Mounting
  • Dimension(WxHxD): 38 mm × 25 mm × 18 mm
  • Shell material: Plastic
  • Color: White
  • Weight: 28.5 g
  • Alarm input: 1 for tamper, NO/NC
  • Relay output: 1, NO/NC (0 to 36V DC, Max 5A)

Software features
  • Scenario setting: By alarm, by operation, by fault, by schedule, by manual
  • Learning button: 1, for register

Hardware features
  • Serial port: 1, for debug

Display
  • LEDs status: 3, register/signal (green/red), power (green), relay status (blue)

Electrical characteristics
  • Power supply: DC 7V to 24V
  • Operation humidity: 10% to 90%
  • Operation temperature: -10°C to 55°C

Wireless transmission
  • RF frequency: 868 MHz
  • RF method: Two-way communication
  • RF modulation: 2GFSK
  • RF distance: 1800 m
  • Wireless security: AES-128

General
  • Installation method: Wall-Mounting
  • Dimension(WxHxD): 38 mm × 25 mm × 18 mm
  • Shell material: Plastic
  • Color: White
  • Weight: 28.5 g

Device management
  • Alarm input: 1 for tamper, NO/NC
  • Relay output: 1, NO/NC (0 to 36V DC, Max 5A)
