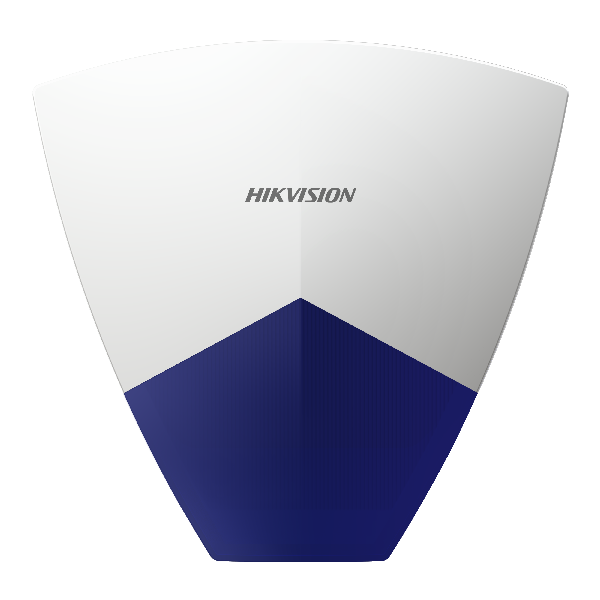

• AX Pro DS-PS102XBLUE | Peripheral

AX Pro DS-PS102XBLUE | Peripheral

AX Pro DS-PS102XBLUE | Peripheral

Category: Wired
|
Brand: AX Pro
  • Wired
  • Wired Intrusion Alarm
  • General Wired Sounders

1 meter
Single frequency point 110 dBA Maximum value
Single frequency point 106 dBA Average value
IP55

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PS102XBLUE | Peripheral
Login to View Price

Specifications

  • Tamper-Proof: Front cover tamper-proof Wall tamper-proof
  • Sound pressure: 110dB/1m（Maximum Value）
  • Power supply: 9 to 16VDC
  • Typical voltage: 12 VDC
  • Power consumption: Maximum current: 180mA@12V DC
  • Operation humidity: 10％～90％
  • Operation temperature: -20℃～＋60℃
  • IP rate: IP55
  • Dimension(WxHxD): 221x215x51mm
  • Shell material: PC+ABS
  • Color: Red / Blue
  • Weight: 475g

Hardware features
  • Tamper-Proof: Front cover tamper-proof Wall tamper-proof

Audio
  • Sound pressure: 110dB/1m（Maximum Value）

Electrical characteristics
  • Power supply: 9 to 16VDC
  • Typical voltage: 12 VDC
  • Power consumption: Maximum current: 180mA@12V DC
  • Operation humidity: 10％～90％
  • Operation temperature: -20℃～＋60℃

General
  • IP rate: IP55
  • Dimension(WxHxD): 221x215x51mm
  • Shell material: PC+ABS
  • Color: Red / Blue
  • Weight: 475g
