AX Pro DS-PWA96-Kit1-WE | Alarm Kit

AX Pro DS-PWA96-Kit1-WE | Alarm Kit

AX Pro DS-PWA96-Kit1-WE | Alarm Kit

Category: Wireless
|
Brand: AX Pro
  • Wireless
  • Alarm Kit

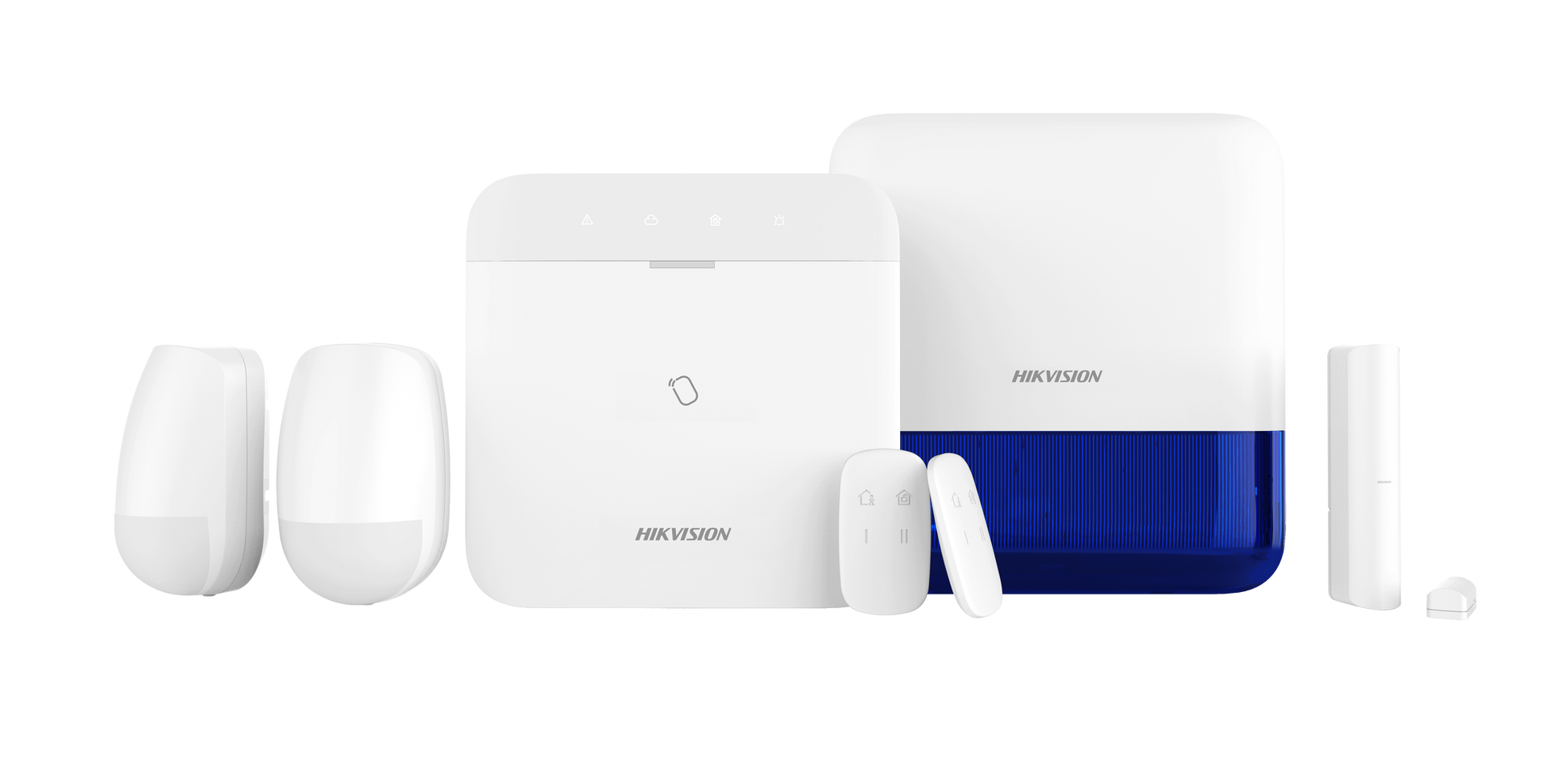

AX PRO Kit (868MHz)
· DS-PWA96-M-WE x 1
· DS-PKF1-WE x 2
· DS-PS1-E-WE (Blue) x 1
· DS-PDP15P-EG2-WE x 2
· DS-PDMC-EG2-WE x 1

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
AX Pro DS-PWA96-Kit1-WE | Alarm Kit
Login to View Price

Specifications

  • Weight: 557.5 g (19.7 oz)
  • Diagnostics via the APP or Web: Supported
  • Installer: 1
  • Installer APP for programming: Supported
  • Onboard video clips: 4
  • Web server for maintenance (offline configuration): Supported
  • Wi-Fi standard: Supported
  • Arm modes: Away/Stay
  • Firmware upgrade: APP/Web Portal
  • Admin: 1
  • Wired network: Supported
  • Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Forced arming with open zones: Supported
  • Memory log stored: 5000
  • User: 46
  • User APP for operating: Supported
  • Voice prompt: Supported
  • Area: 32
  • Automatic arm/disarm timers: Supported
  • RS232 output: Supported
  • SIM slot: Dual
  • 3/4G on board: Supported
  • Tag reader built in: Supported
  • Loudspeaker built in: Supported
  • Battery type: Built in on board Battery Li
  • Power supply: Built in power supply
  • Operation temperature: -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
  • Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
  • RF frequency: 868 Mhz
  • RF method: Support
  • Wireless security: Frequency Hoping 128 AES Encryption
  • LEDs status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
  • Dimension (WxHxD): 170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
  • Shell material: Plastic
  • Colour: White
  • Tag: 48
  • PIR cam: Supported
  • Zones: 96 (up to 48 PIRCAMs)
  • Keypad: 8 (including tag reader)
  • Wireless sounder: 6 (3 internal+3 external)
  • Wireless repeater: 4
  • Keyfob: 48
  • Multi Transmitter: 6
  • ARC protocol: SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)Supports video verification and remote control

General
  • Weight: 557.5 g (19.7 oz)

Other
  • Diagnostics via the APP or Web: Supported
  • Installer: 1
  • Installer APP for programming: Supported
  • Onboard video clips: 4
  • Web server for maintenance (offline configuration): Supported
  • Wi-Fi standard: Supported
  • Arm modes: Away/Stay
  • Firmware upgrade: APP/Web Portal
  • Admin: 1
  • Wired network: Supported
  • Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Forced arming with open zones: Supported
  • Memory log stored: 5000
  • User: 46
  • User APP for operating: Supported
  • Voice prompt: Supported
  • Area: 32
  • Automatic arm/disarm timers: Supported
  • RS232 output: Supported
  • SIM slot: Dual
  • 3/4G on board: Supported
  • Tag reader built in: Supported
  • Loudspeaker built in: Supported
  • Battery type: Built in on board Battery Li
  • Power supply: Built in power supply
  • Operation temperature: -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
  • Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
  • RF frequency: 868 Mhz
  • RF method: Support
  • Wireless security: Frequency Hoping 128 AES Encryption
  • LEDs status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
  • Dimension (WxHxD): 170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
  • Shell material: Plastic
  • Colour: White
  • Tag: 48
  • PIR cam: Supported
  • Zones: 96 (up to 48 PIRCAMs)
  • Keypad: 8 (including tag reader)
  • Wireless sounder: 6 (3 internal+3 external)
  • Wireless repeater: 4
  • Keyfob: 48
  • Multi Transmitter: 6
  • ARC protocol: SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)Supports video verification and remote control
