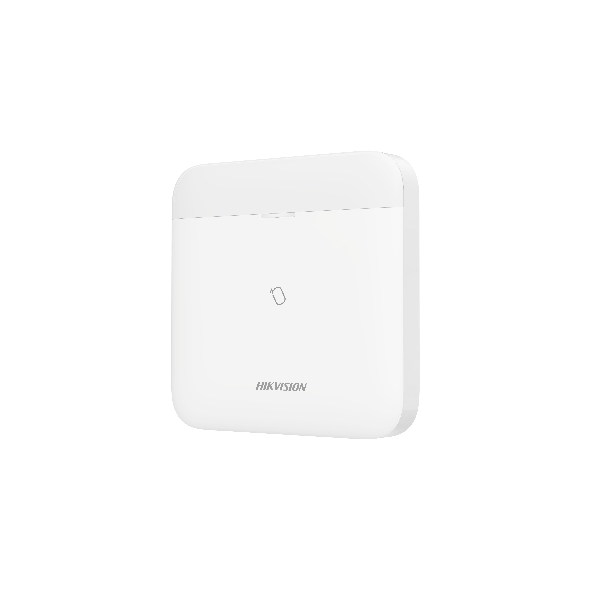

AX Pro DS-PWA96-M-WE | Alarm Panel
AX Pro DS-PWA96-M-WE | Alarm Panel
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
96 zones, WiFi, 868Mhz
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX Pro DS-PWA96-M-WE | Alarm Panel
Specifications
- Diagnostics via the APP or Web: Supported
- Installer: 1
- Installer APP for programming: Supported
- Onboard video clips: 4
- Web server for maintenance (offline configuration): Supported
- Wi-Fi standard: Supported
- Arm modes: Away/Stay
- Firmware upgrade: APP/Web Portal
- Admin: 1
- Wired network: Supported
- Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Forced arming with open zones: Supported
- Memory log stored: 5000
- User: 46
- User APP for operating: Supported
- Voice prompt: Supported
- Area: 32
- Automatic arm/disarm timers: Supported
- RS232 output: Supported
- SIM slot: Dual
- 3/4G on board: Supported
- Tag reader built in: Supported
- Loudspeaker built in: Supported
- LEDs status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- Battery type: Built in on board Battery Li
- Power supply: Built in power supply
- Operation temperature: -10 °C to +55 °C (please make sure the adapter is connected)
- Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- RF frequency: 868 Mhz
- RF method: Support
- Wireless security: Frequency Hoping 128 AES Encryption
- Dimension(WxHxD): 170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
- Shell material: Plastic
- Color: White
- Weight: 557.5 g (19.7 oz)
- Tag: 48
- PIR cam: Supported
- Zones: 96 (up to 48 PIRCAMs)
- Keypad: 8 (including tag reader)
- Wireless sounder: 6
- Wireless repeater: 4
- Keyfob: 48
- Multi Transmitter: 6
- ARC protocol: SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI ,OTAP Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
