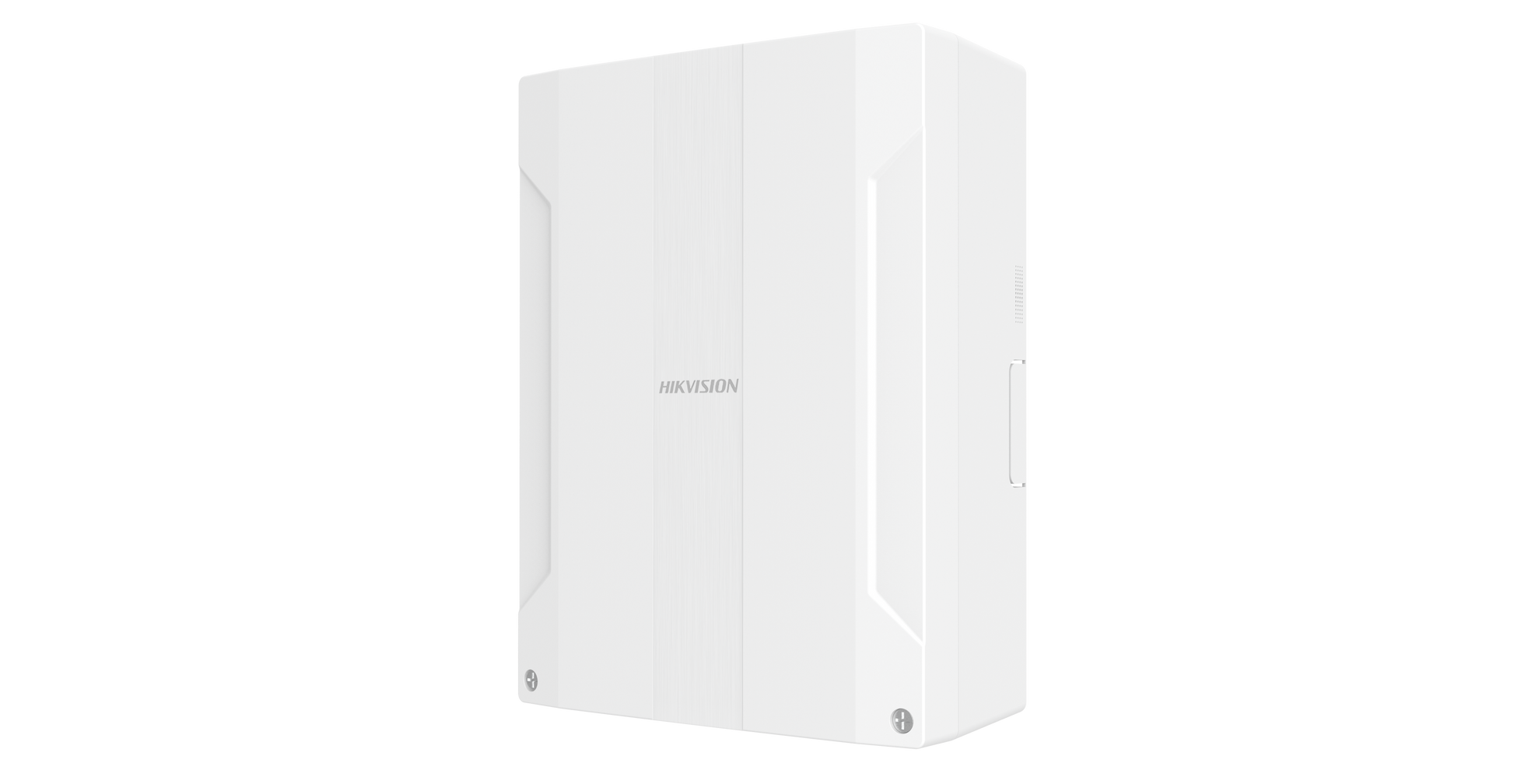

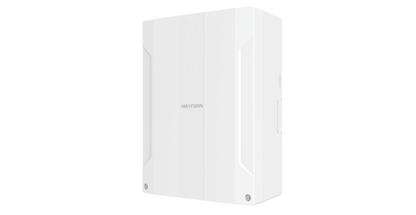

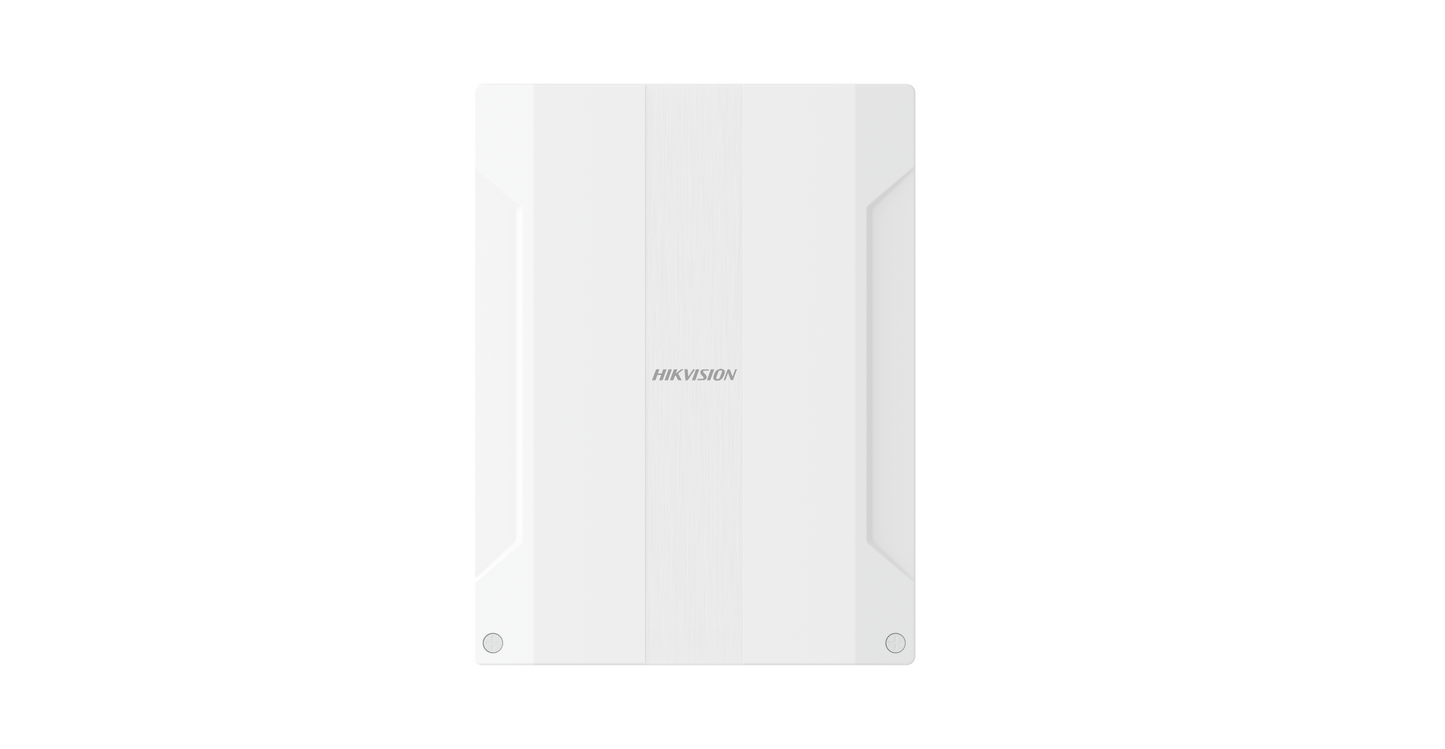

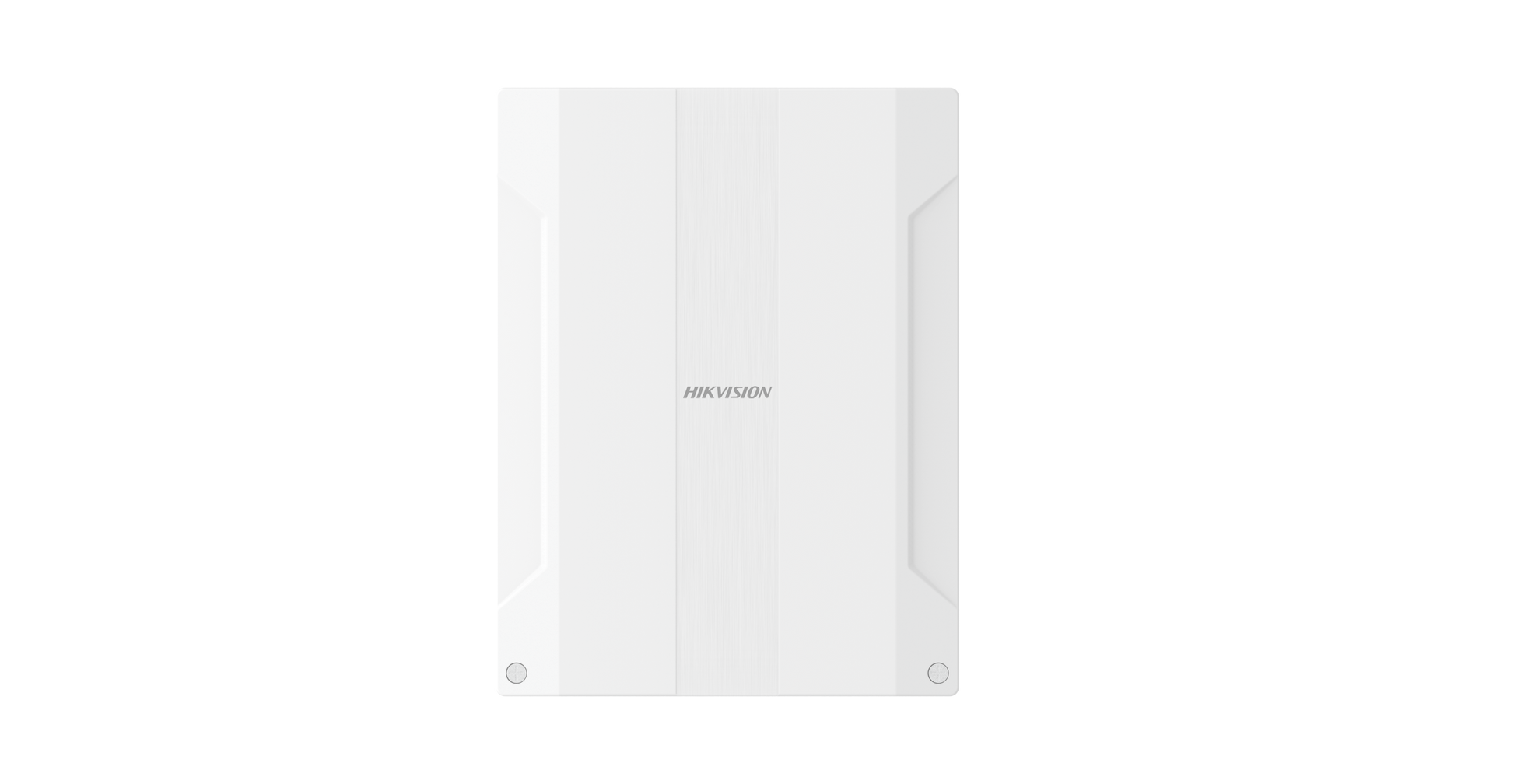

AX Pro DS-PWA96-M2-WE | Alarm Panel
AX Pro DS-PWA96-M2-WE | Alarm Panel
- Wireless
- Wireless Intrusion Alarm
- AX PRO Series
AX PRO with big battery size
TCP/IP, Wi-Fi, and 3/4G network
New generation wireless protocol: Tri-X/Cam-X
Long RF transmission distance
Two-way communication with AES-128 encryption
Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 External), 8 tag readers & keypads.
Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
Voice prompt
Configuration via Web client, mobile client, and Convergence Cloud
Hik-Connect and Hik-ProConnect configuration depends on the user access level
Pushes alarm notification via messages or phone calls
Views live videos from Hik-Connect
Alarm video clips via emails and APP
Supports LED indicator to indicates system status
SIA-DC09 protocol, and supports both Contact ID and SIA data format
Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Specifications
- Tag: 48
- Area: 32
- Zones: 96 (up to 48 PIRCAMs)
- Onboard video clips: 4
- Installer: 1
- User: 46
- Admin: 1
- Voice Prompt: Supported
- Loudspeaker built in: Supported
- Tag reader built in: No
- Memory Log stored: 5000
- Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware upgrade: APP/Web Portal
- Arm modes: Away/Stay
- Automatic Arm/Disarm Timers: Supported
- Forced Arming with Open Zones: Supported
- Diagnostics via the APP or Web: Supported
- ARC protocol: SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
- User APP for operating: Supported
- Installer APP for programming: Supported
- Web server for maintenance (offline configuration): Supported
- RS232 output: Supported
- SIM slot: Dual
- Two-way Wireless Communication: Support
- RF Frequency: 868Mhz
- Wireless Security: Frequency Hoping 128 AES Encryption
- 3/4G on board: Supported
- LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- Power supply: Built in power supply
- Battery type: 12v 7Ah Storage battery (Battery is not included by default)
- Battery life span: Up to 36 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)(Battery life varies from different battery types)
- Wired network: Supported
- Wi-Fi Standard: Supported
- Operation temperature: -10 °C to +55 °C
- Shell material: Plastic
- Dimension(WxHxD): 261*199*86.4mm
- Weight: 975g (No battery)
- Color: White
- Keyfob: 48
- Wireless sounder: 6 (3 internal+3 External)
- Keypad: 8 (Including Tag reader)
- Wireless Repeater: 4
- Multi Transmitter: 6
- PIR Cam: Supported
