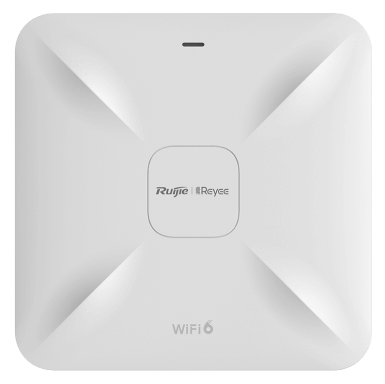

AX3200 Wi-Fi 6 Multi-Gigabit Ceiling Mount Indoor AP 1 2.5Gbps RJ45 port, 1 Gigabit RJ45 port, Built-in antennas | RG-RAP2260(E)
AX3200 Wi-Fi 6 Multi-Gigabit Ceiling Mount Indoor AP 1 2.5Gbps RJ45 port, 1 Gigabit RJ45 port, Built-in antennas | RG-RAP2260(E)
- Wireless Networking
- Wi-Fi 6 Access Points
- Ceiling Wi-Fi
AX3200 Wi-Fi 6 Multi-Gigabit Ceiling Mount Indoor AP 1 2.5Gbps RJ45 port, 1 Gigabit RJ45 port, Built-in antennas, dual-band 2.4GHz/5GHz, 4x4 802.11ax, 802.11ac wave2/wave1, Up to 3200Mbps access rate per AP; Support AP and routing mode, Layer 3 roaming, Reyee unified networking and Ruijie Cloud APP management; Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE
Key Features
- Indoor
- Wi-Fi 6
- 3202Mbps
- Recommend 120 Clients
- 2.5GE+1GE Port
Model: RG-RAP2260(E)
-
Free Delivery
-
Free Returns
-
Expert Tech Support
AX3200 Wi-Fi 6 Multi-Gigabit Ceiling Mount Indoor AP 1 2.5Gbps RJ45 port, 1 Gigabit RJ45 port, Built-in antennas | RG-RAP2260(E)
Specifications
- Product dimensions (W x D x H): 220 mm x 220 mm x 35 mm (8.66 in. x 8.66 in. x 1.38 in.) (excluding the mounting bracket)
- Package dimensions (W x D x H): 290 mm x 290 mm x 71 mm (11.42 in. x 11.42 in. x 2.80 in.)
- Color: White
- Weight: ≤ 0.55 kg (1.21 lbs.) (without packaging materials)
- Shipping weight: ≤ 1.43 kg (3.15 lbs.)
- Number of 10/100/1000BASE-T ports: 1
- Number of 10/100/1000/2500BASE-T ports: 1
- Power supply: ● DC power adapter ● PoE+ Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
- Local power supply: Yes, one DC power connector (12 V, 2.5 A)
- Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.) Inner diameter: 2.1 mm (0.08 in.) Depth: 10 mm (0.39 in.)
- PoE In standard: IEEE 802.3at (PoE+)
- Maximum power consumption: 25.4 W
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: –40°C to +70°C (–40°F to +158°F)
- IP rating: IP41
- Certification: CE, CB
- Package Contents: 1 x AP 1 x Mounting bracket 2 x Cross pan head screws (ST4.2 x 20 mm) 2 x Plastic expansion anchors (φ9 x 25.4 mm) 1 x User Manual 1 x Warranty Card
- 6 GHz Wi-Fi: No
- 5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n) Wi-Fi 5 (IEEE 802.11ac) Wi-Fi 6 (IEEE 802.11ax)
- 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
- 6 GHz channel width: No
- 5 GHz channel width: Auto/20/40/80 MHz
- 2.4 GHz channel width: Auto/20/40 MHz
- Maximum wireless data rate: 3201 Mbps
- 6 GHz wireless data rate: No
- 5 GHz wireless data rate: 2401 Mbps
- 2.4 GHz wireless data rate: 800 Mbps
- Antenna: 2.4 GHz: 4 built-in omnidirectional antennas 5 GHz: 4 built-in omnidirectional antennas
- Antenna horizontal orientation: No
- Antenna vertical orientation: No
- Antenna gain (6 GHz): No
- Antenna gain (5 GHz): 3.00 dBi
- Antenna gain (2.4 GHz): 3.00 dBi
- Maximum number of associated wireless clients: 64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)
- Recommended number of associated wireless clients: ● Support for IEEE 802.11ax: 16 (2.4 GHz) 104 (5 GHz) 120 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
- AP mode: Yes
- Routing mode: Yes
- AI roaming: Yes
- Wireless repeater mode: Yes
- Product Type: Ceiling AP
- Coverage range: 190 ㎡ (2045.14 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
- MLO: No
- 4K-QAM: No
- Maximum number of devices that can be managed: 300
