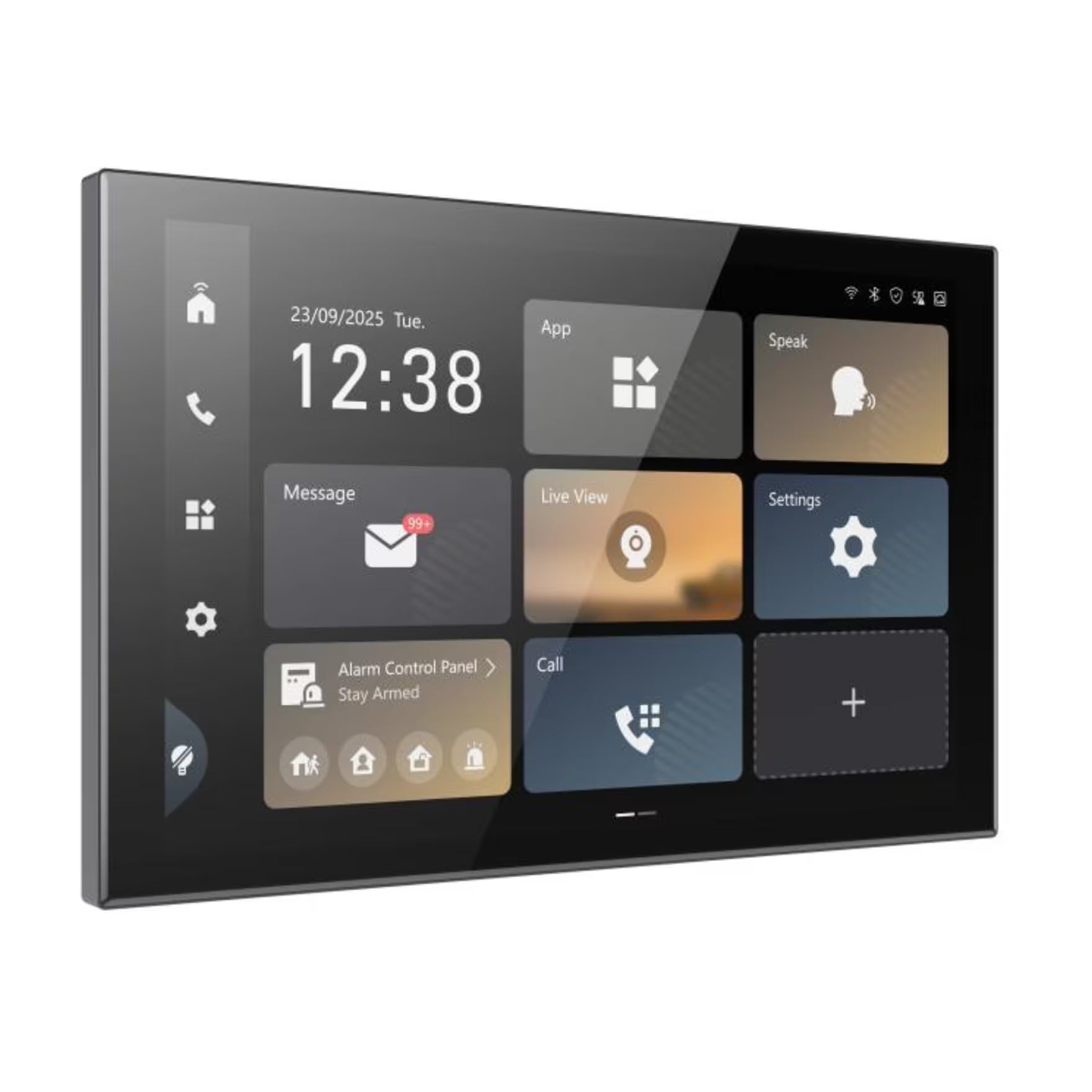

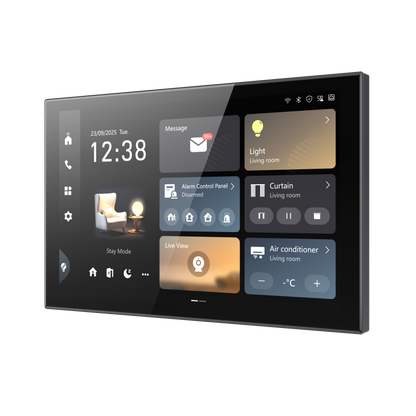

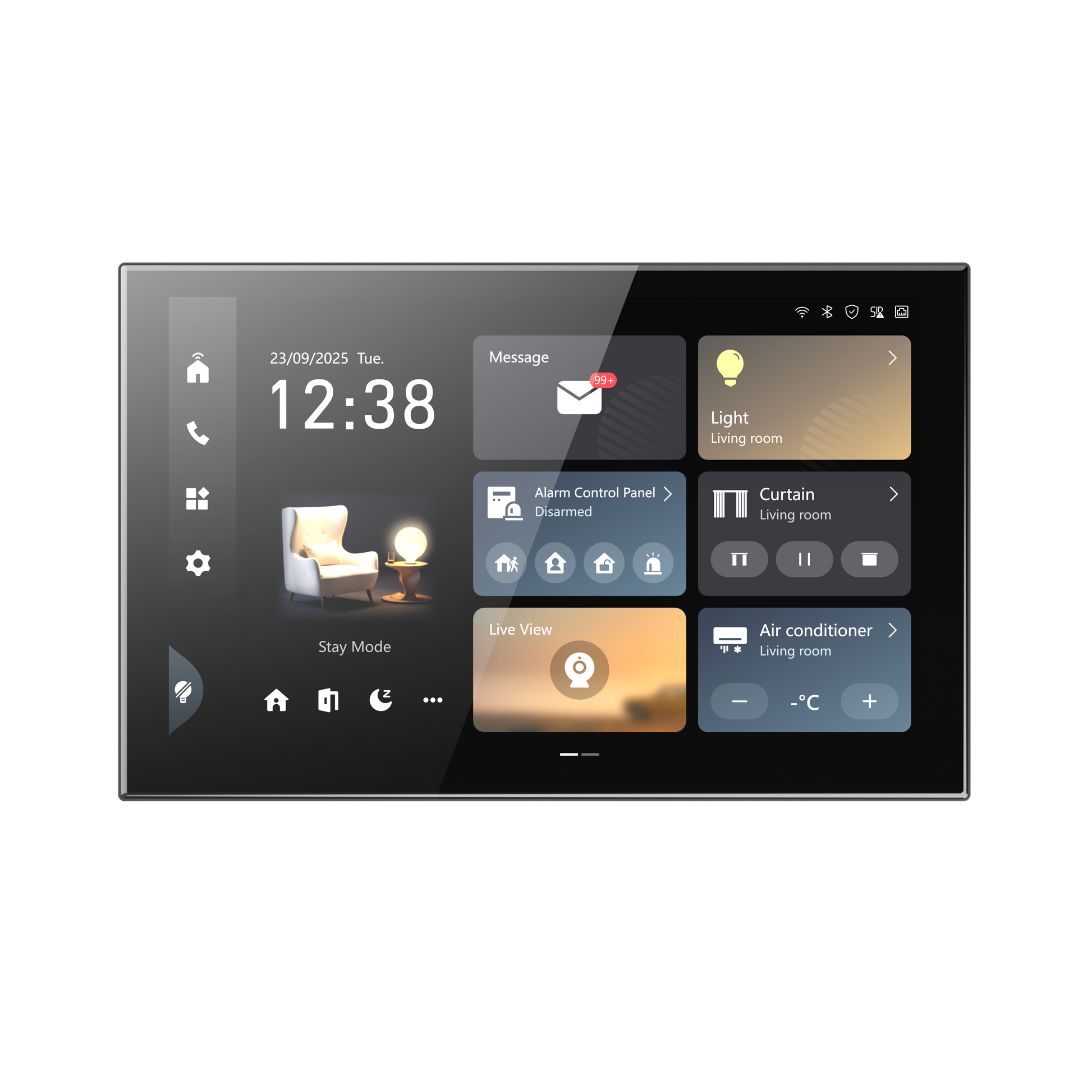

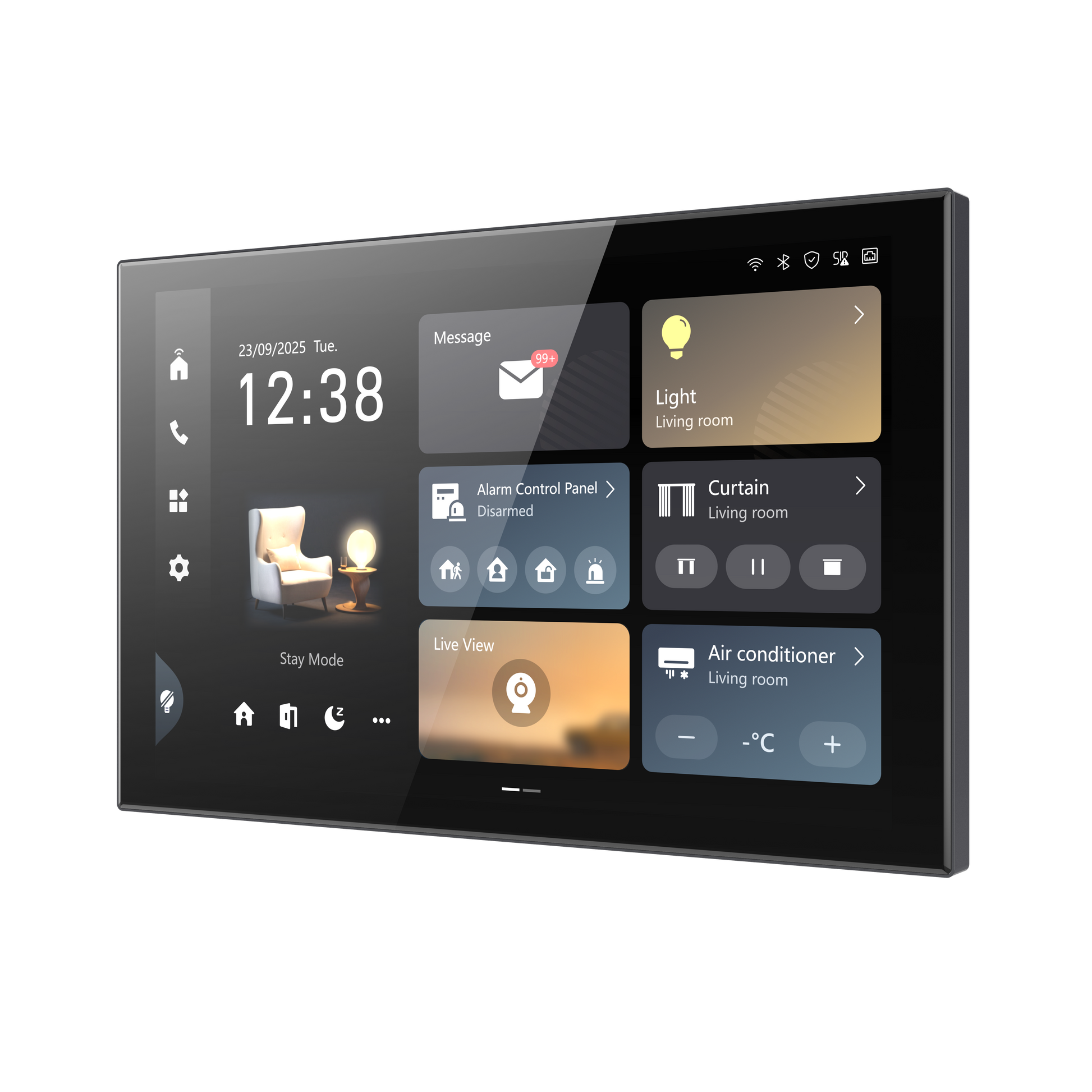

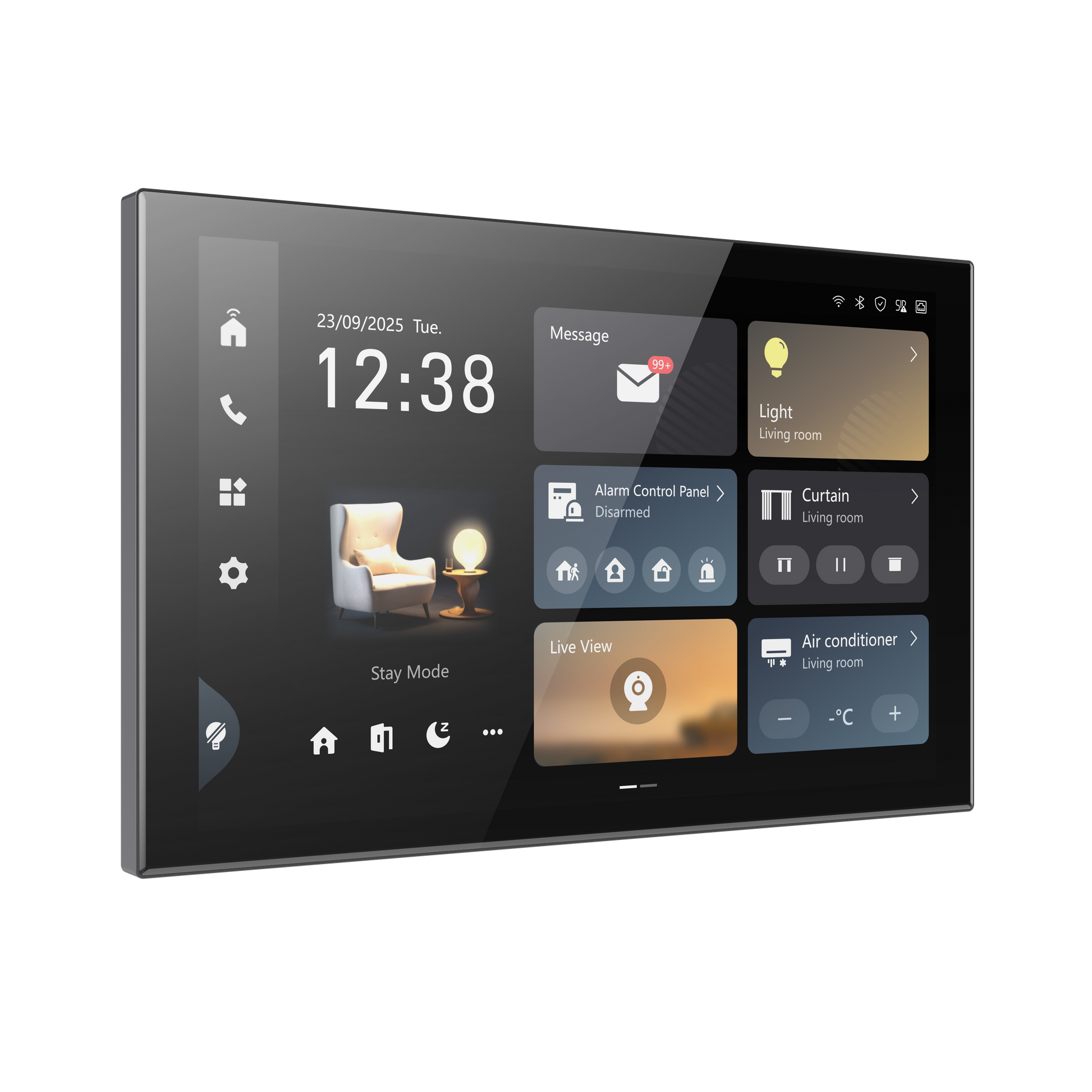

DS-KC9570-WTE1/S | IP Intercom | Android 10" Intercom Indoor Station

DS-KC9570-WTE1/S | IP Intercom | Android 10" Intercom Indoor Station

Category: Intercom
|
Brand: Hikvision
  • Intercom
  • Scenario Control
  • Control Panel

Unified Control Hub: • Lighting • Curtains • HVAC • Intercom • Alarms • Network cameras • Elevator access ● Ultra Smooth Operation: • 4-core processor • Android 14 • Up to 4 GB RAM + 16 GB ROM ● Super HD Clarity: • 10.1" IPS touch display • 1920×1200 resolution ● Real Talk Anytime: • Dual microphones & speakers • Noise suppression and echo cancellation

  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
DS-KC9570-WTE1/S | IP Intercom | Android 10" Intercom Indoor Station
Login to View Price

Specifications

  • Operation system: Android 14
  • ROM: 16GB
  • RAM: 4GB
  • Processor: Embedded high performance processor
  • Screen size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1920 ×1200
  • Lens: /
  • Resolution: /
  • Video compression standard: /
  • Audio input: 2 built-in omnidirectional microphone
  • Audio compression standard: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
  • Audio output: 2 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable
  • Linked doorphone capacity: 17
  • Message capacity: 200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
  • Linked indoor extensions capacity: 15
  • Linked network camera capacity: 16
  • Wi-Fi: Wi-Fi 6, 2.4 GHz & 5GHz
  • Bluetooth: BLE 5.0
  • Network protocol: IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP SIP v1 (RFC2543), SIP v2 (RFC3261) DTMF: SIP Info SADP, ISAPI, ONVIF
  • Alarm input: 8 (Reserved)
  • Network interface: 2 RJ-45 10/100 Mbps self-adaptive，1 for Video Intercom, 1 for Smart Home
  • RS-485: 1 RS-485 (Half duplex)
  • TF card: Support TF card, up to 256 G
  • Alarm output: 2 high/low level alarm output (3.3V/0V) (Reserved)
  • Power supply input: 12 VDC
  • Power supply output: 12 VDC, 200mA
  • Relay: 2 (Reserved), Max. 30VDC 1A
  • NTC: 1, R25=10KΩ±1%, B25/50=3950K±1%
  • Proximity Sensor: Distance: 50cm, Horizontal: 25°, Vertical: 25°
  • Installation: Surface mounting
  • Weight: Without package: 555 g (1.22 lb),With package: 649g (1.43 lb)
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93")
  • Power supply: 12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
  • Application environment: Indoor
  • Power consumption: ≤ 24 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

System parameters
  • Operation system: Android 14
  • ROM: 16GB
  • RAM: 4GB
  • Processor: Embedded high performance processor

Display parameters
  • Screen size: 10.1-inch
  • Operation method: Capacitive touch screen
  • Type: Colorful IPS
  • Resolution: 1920 ×1200

Video parameters
  • Lens: /
  • Resolution: /
  • Video compression standard: /

Audio parameters
  • Audio input: 2 built-in omnidirectional microphone
  • Audio compression standard: G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD
  • Audio output: 2 built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity
  • Linked doorphone capacity: 17
  • Message capacity: 200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records
  • Linked indoor extensions capacity: 15
  • Linked network camera capacity: 16

Network parameters
  • Wi-Fi: Wi-Fi 6, 2.4 GHz & 5GHz
  • Bluetooth: BLE 5.0
  • Network protocol: IPv4, SIP, HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP SIP v1 (RFC2543), SIP v2 (RFC3261) DTMF: SIP Info SADP, ISAPI, ONVIF

Device interfaces
  • Alarm input: 8 (Reserved)
  • Network interface: 2 RJ-45 10/100 Mbps self-adaptive，1 for Video Intercom, 1 for Smart Home
  • RS-485: 1 RS-485 (Half duplex)
  • TF card: Support TF card, up to 256 G
  • Alarm output: 2 high/low level alarm output (3.3V/0V) (Reserved)
  • Power supply input: 12 VDC
  • Power supply output: 12 VDC, 200mA
  • Relay: 2 (Reserved), Max. 30VDC 1A
  • NTC: 1, R25=10KΩ±1%, B25/50=3950K±1%

General
  • Proximity Sensor: Distance: 50cm, Horizontal: 25°, Vertical: 25°
  • Installation: Surface mounting
  • Weight: Without package: 555 g (1.22 lb),With package: 649g (1.43 lb)
  • Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity: 10% to 90% (no-condensing)
  • Dimension (W × H × D): 246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93")
  • Power supply: 12 VDC, 2.5 A; IEEE 802.3at, Standard PoE
  • Application environment: Indoor
  • Power consumption: ≤ 24 W
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
