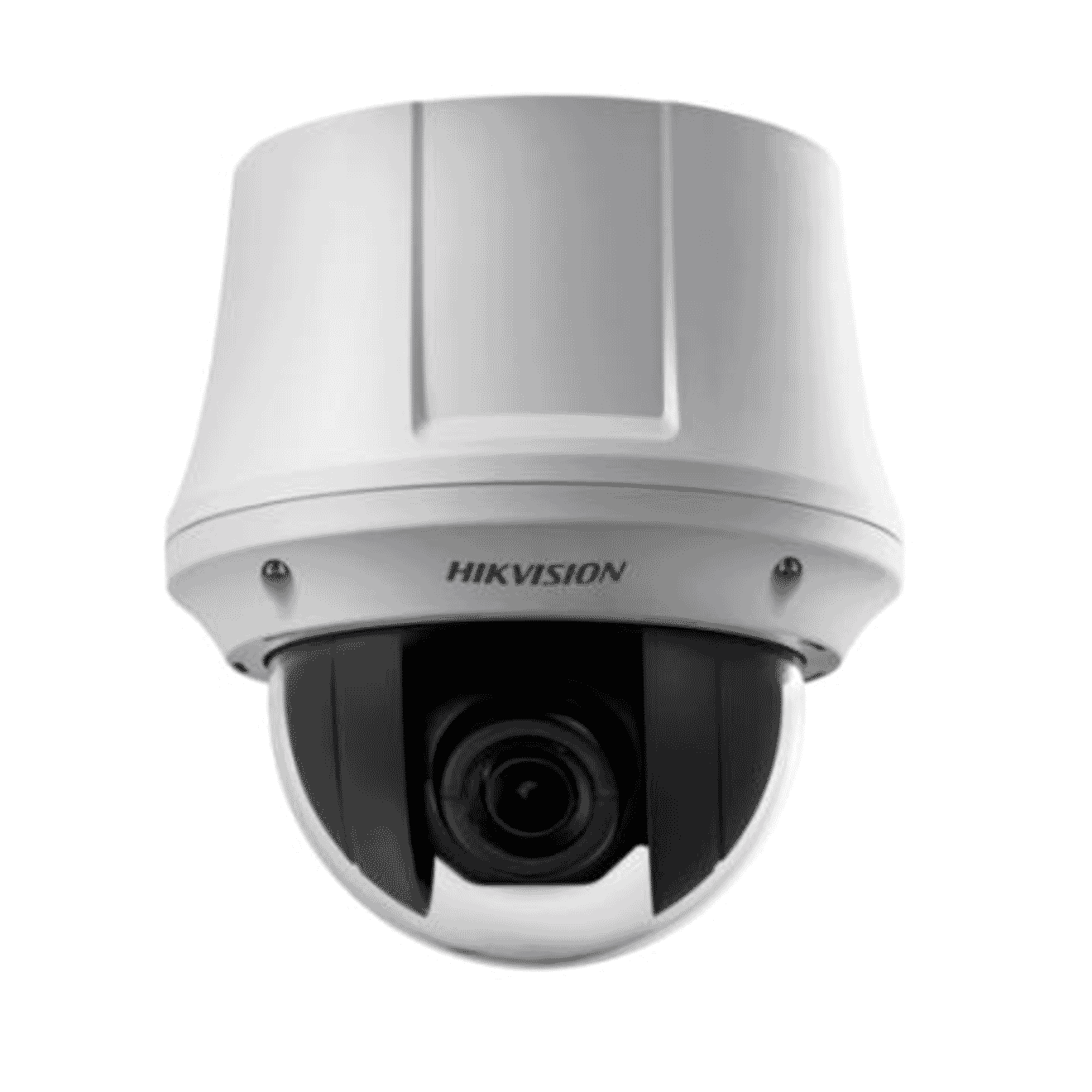

Hikvision DS-2AE4215T-D3 2MP 4.7-94mm Lens, 20x Optical Zoom, PTZ Dome

Hikvision DS-2AE4215T-D3 2MP 4.7-94mm Lens, 20x Optical Zoom, PTZ Dome

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2AE4215T-D3 2MP 4.7-94mm Lens, 20x Optical Zoom, PTZ Dome
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)
  • Day & Night: IR cut filter
  • Aperture: F1.6 to F3.5
  • Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)
  • Image Settings: AGC, white balance
  • Wide Dynamic Range (WDR): = 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable privacy masks
  • Power: 12 VDC, max. 12 W
  • Dimension: DS-2AE4215T-D3(D) (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1\")DS-2AE4215T-D3(D) (In-ceiling): Ø 165 × 168 mm (Ø 6.5 × 6.6\")"
  • Weight: Approx. 2 kg (4.41 lb.)
  • Language: English
  • Protection: TVS 4,000 V lightning protection, surge protection and voltage transient protection
  • Shutter Speed: PAL: 1/1 s to 1/10,000 sNTSC: 1/1 s to 1/10,000 s
  • Zoom: 15 × optical, 16 × digital
  • Focal Length: 5 mm to 75 mm, 15 × optical
  • FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele)Vertical FOV: 31.9° to 2.3° (wide to tele)Diagonal FOV: 60.4° to 4.6° (wide to tele)
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: Approx. 2.4 s (optical, wide to tele)
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): -5° to 90° (auto flip)
  • Pan Speed: Pan manual speed: 0.1° to 100°/sPan preset speed: 100°/s
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/sTilt preset speed: 80°/s
  • Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Preset Freezing: Yes
  • Patrol Scan: 10 patrols, up to 32 presets for each patrol
  • Pattern Scan: 5 patterns, record time over 10 minutes for each scan
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: Yes
  • Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power-off Memory: Yes
  • Frame Rate: 50 Hz: 25 fps @(1920 × 1080)60 Hz: 30 fps @(1920 × 1080)
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • Alarm: 2 alarm inputs, 1 alarm output
  • RS-485: Half-duplex modeSelf-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • Operating Condition: -10° C to 50° C (14° F to 122° F). Humidity 90% or less

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)
  • Day & Night: IR cut filter

Lens
  • Aperture: F1.6 to F3.5

Video
  • Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)

  • Image Settings: AGC, white balance
  • Wide Dynamic Range (WDR): = 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable privacy masks

General
  • Power: 12 VDC, max. 12 W
  • Dimension: DS-2AE4215T-D3(D) (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1\")DS-2AE4215T-D3(D) (In-ceiling): Ø 165 × 168 mm (Ø 6.5 × 6.6\")"
  • Weight: Approx. 2 kg (4.41 lb.)
  • Language: English

Approval
  • Protection: TVS 4,000 V lightning protection, surge protection and voltage transient protection

Other
  • Shutter Speed: PAL: 1/1 s to 1/10,000 sNTSC: 1/1 s to 1/10,000 s
  • Zoom: 15 × optical, 16 × digital
  • Focal Length: 5 mm to 75 mm, 15 × optical
  • FOV: Horizontal FOV: 53.8° to 4.0° (wide to tele)Vertical FOV: 31.9° to 2.3° (wide to tele)Diagonal FOV: 60.4° to 4.6° (wide to tele)
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: Approx. 2.4 s (optical, wide to tele)
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): -5° to 90° (auto flip)
  • Pan Speed: Pan manual speed: 0.1° to 100°/sPan preset speed: 100°/s
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/sTilt preset speed: 80°/s
  • Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Preset Freezing: Yes
  • Patrol Scan: 10 patrols, up to 32 presets for each patrol
  • Pattern Scan: 5 patterns, record time over 10 minutes for each scan
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: Yes
  • Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power-off Memory: Yes
  • Frame Rate: 50 Hz: 25 fps @(1920 × 1080)60 Hz: 30 fps @(1920 × 1080)
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • Alarm: 2 alarm inputs, 1 alarm output
  • RS-485: Half-duplex modeSelf-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • Operating Condition: -10° C to 50° C (14° F to 122° F). Humidity 90% or less
