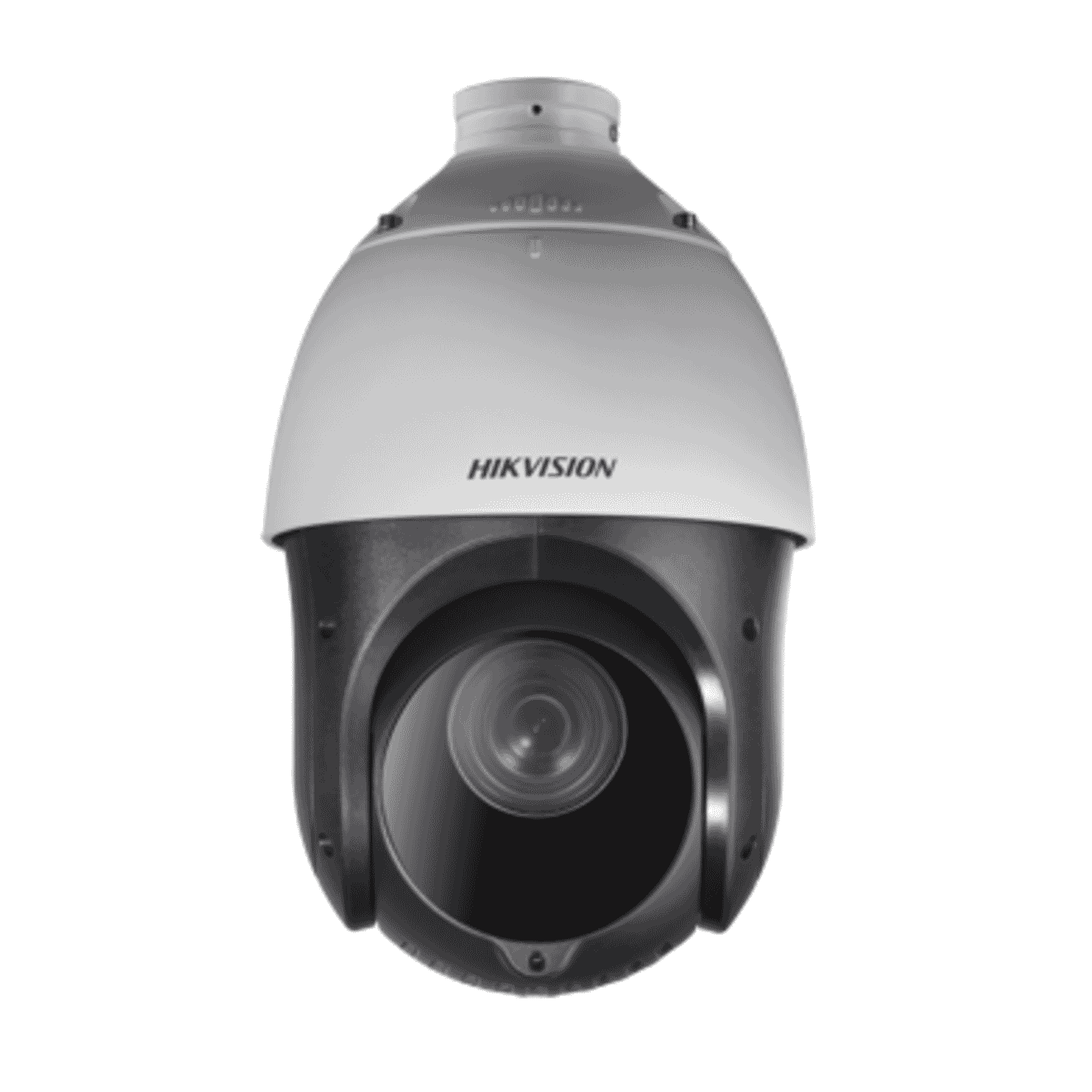

Hikvision DS-2AE4225TI-D(E) 2MP 4.8-120mm 25× Motorised Analogue PTZ

Hikvision DS-2AE4225TI-D(E) 2MP 4.8-120mm 25× Motorised Analogue PTZ

Category: HD COAX CCTV
|
Brand: Hikvision
  • HD COAX CCTV
  • 2MP
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2AE4225TI-D(E) 2MP 4.8-120mm 25× Motorised Analogue PTZ
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 x 1080
  • Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR
  • Day & Night: IR cut filter
  • Aperture: F1.6 to F3.5
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 100 m
  • Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)
  • Image Settings: AGC, white balance
  • Wide Dynamic Range (WDR): = 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable privacy masks
  • Power: 12 VDC, max. 20 W (IR: 7 W)
  • Dimension: Ø 164.5 x 295 mm (Ø 6.47" x 11.61")
  • Language: English
  • Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
  • Shutter Speed: PAL: 1/1 s to 1/10,000 sNTSC: 1/1 s to 1/10,000 s
  • Zoom: 25x optical, 16 x digital
  • Focal Length: 4.8 mm to 120 mm, 25 x optical
  • FOV: Horizontal FOV: 57.6° to 2.5° (wide to tele)
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: Approx. 3.2 s (optical, wide to tele)
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan manual speed: 0.1° to 80°/sPan preset speed: 80°/s
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/sTilt preset speed: 80°/s
  • Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Patrol Scan: 10 patrols, up to 32 presets for each patrol
  • Pattern Scan: 5 patterns, record time over 10 minutes for each scan
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: Yes
  • Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power-off Memory: Yes
  • Frame Rate: 50 Hz: 25 fps @ (1920 x 1080)60 Hz: 30 fps @ (1920 x 1080)
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • RS-485: Half-duplex modeSelf-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 x 1080
  • Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR
  • Day & Night: IR cut filter

Lens
  • Aperture: F1.6 to F3.5

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 100 m

Video
  • Protocols: UTC protocol (or HIKVISION-C protocol in previous DVR)

  • Image Settings: AGC, white balance
  • Wide Dynamic Range (WDR): = 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable privacy masks

General
  • Power: 12 VDC, max. 20 W (IR: 7 W)
  • Dimension: Ø 164.5 x 295 mm (Ø 6.47" x 11.61")
  • Language: English

Approval
  • Protection: IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection

Other
  • Shutter Speed: PAL: 1/1 s to 1/10,000 sNTSC: 1/1 s to 1/10,000 s
  • Zoom: 25x optical, 16 x digital
  • Focal Length: 4.8 mm to 120 mm, 25 x optical
  • FOV: Horizontal FOV: 57.6° to 2.5° (wide to tele)
  • Focus: Auto, semi-auto, manual
  • Zoom Speed: Approx. 3.2 s (optical, wide to tele)
  • Movement Range (Pan): 360° endless
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan manual speed: 0.1° to 80°/sPan preset speed: 80°/s
  • Tilt Speed: Tilt manual speed: 0.1° to 80°/sTilt preset speed: 80°/s
  • Proportional Pan: Rotation speed can be adjusted automatically according to zoom multiples
  • Presets: 256
  • Patrol Scan: 10 patrols, up to 32 presets for each patrol
  • Pattern Scan: 5 patterns, record time over 10 minutes for each scan
  • Park Action: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status Display: Yes
  • Scheduled Task: Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Power-off Memory: Yes
  • Frame Rate: 50 Hz: 25 fps @ (1920 x 1080)60 Hz: 30 fps @ (1920 x 1080)
  • Image Stabilization: EIS
  • Regional Focus: Yes
  • Video Output: Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • RS-485: Half-duplex modeSelf-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • Operating Condition: -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
