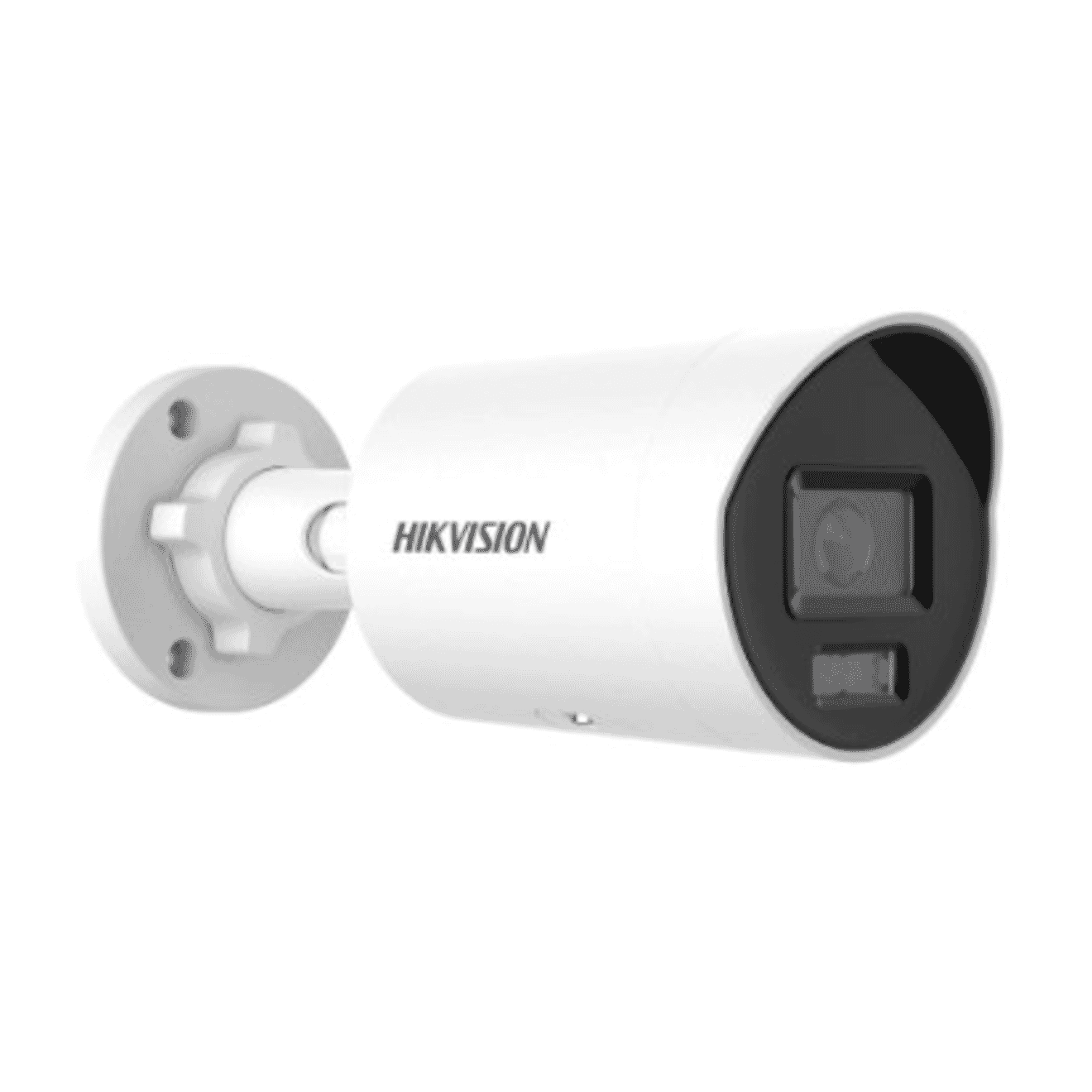

Hikvision DS-2CD2087G2H-LIU (2.8mm)(eF) 8MP Smart Hybrid ColorVu Fixed Mini Bullet Network Camera

Hikvision DS-2CD2087G2H-LIU (2.8mm)(eF) 8MP Smart Hybrid ColorVu Fixed Mini Bullet Network Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 8MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2087G2H-LIU (2.8mm)(eF) 8MP Smart Hybrid ColorVu Fixed Mini Bullet Network Camera
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 3840 x 2160
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 2.8 mm
  • Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
  • Lens Mount: M16
  • Iris Type: Fixed
  • Aperture: F1.0
  • DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
  • Supplement Light Type: IR, White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz:25 fps (3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz:24 fps (3840 x 2160)30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR, VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
  • Face Capture: Yes
  • Power: 12 VDC ± 25%, 0.58 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
  • Dimension: Ø74.4 mm x 179.2 mm (Ø2.9" x 7.1")
  • Package Dimension: 234 mm x 120 mm x 117 mm (9.2" x 4.7" x 4.6")
  • Weight: Approx. 525 g (1.2 lb.)
  • With Package Weight: Approx. 750 g (1.7 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, mirror, password reset via email, pixel counter, Anti-banding
  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015,RCM: AS/NZS CISPR 32: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU
  • Protection: IP67: IEC 60529-2013
  • Depth of Field: 2.8 mm: 3.3 m to 8
  • Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: -U: Yes
  • Built-in Microphone: -U: Yes
  • Material: Front cover: Metal, body: Metal, bracket: Metal

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 3840 x 2160
  • Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 2.8 mm
  • Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
  • Lens Mount: M16
  • Iris Type: Fixed
  • Aperture: F1.0

DORI
  • DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

Illuminator
  • Supplement Light Type: IR, White Light
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz:25 fps (3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz:24 fps (3840 x 2160)30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR, VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function
  • Face Capture: Yes

General
  • Power: 12 VDC ± 25%, 0.58 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
  • Dimension: Ø74.4 mm x 179.2 mm (Ø2.9" x 7.1")
  • Package Dimension: 234 mm x 120 mm x 117 mm (9.2" x 4.7" x 4.6")
  • Weight: Approx. 525 g (1.2 lb.)
  • With Package Weight: Approx. 750 g (1.7 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, mirror, password reset via email, pixel counter, Anti-banding

Approval
  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015,RCM: AS/NZS CISPR 32: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU
  • Protection: IP67: IEC 60529-2013

Other
  • Depth of Field: 2.8 mm: 3.3 m to 8
  • Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: -U: Yes
  • Built-in Microphone: -U: Yes
  • Material: Front cover: Metal, body: Metal, bracket: Metal
