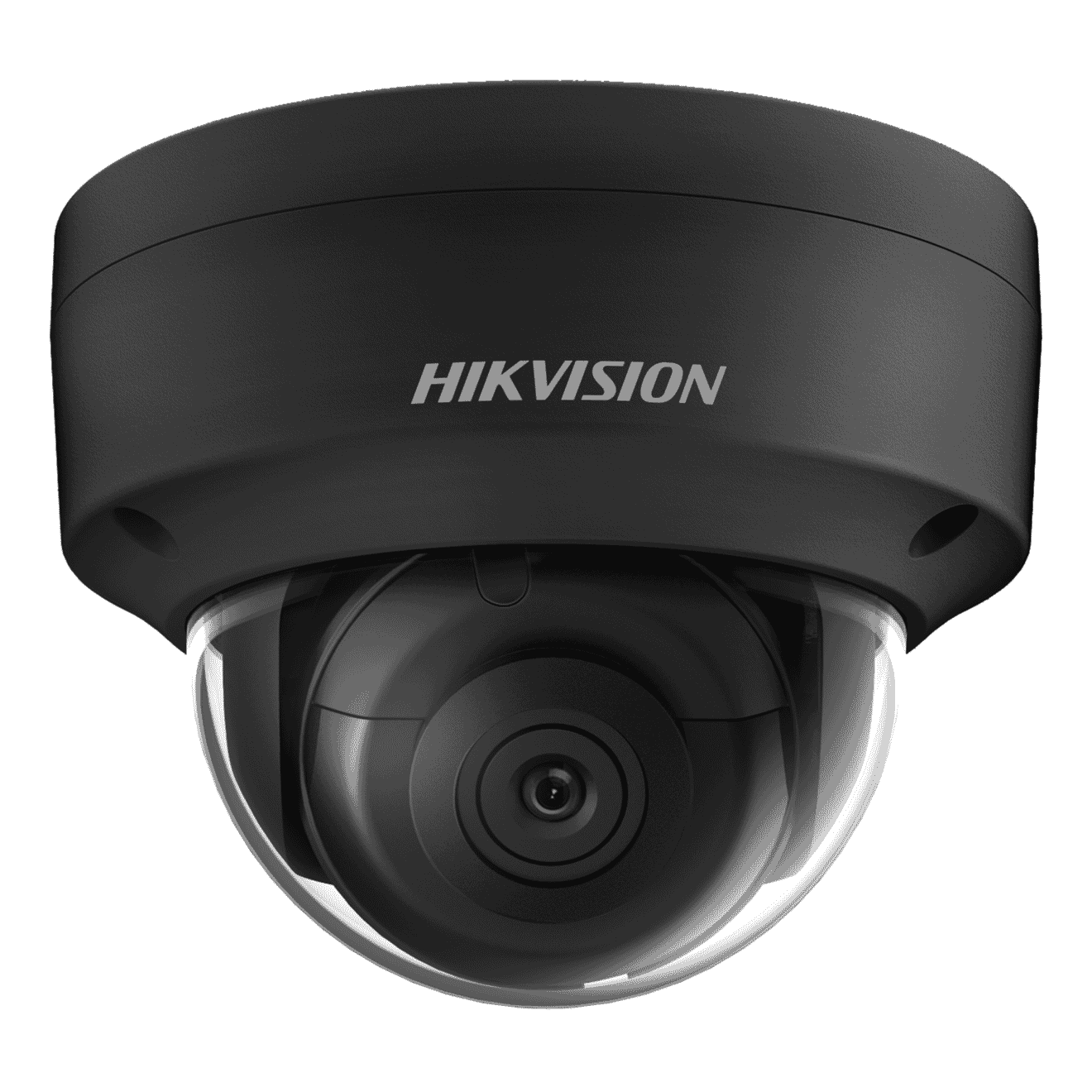

Hikvision DS-2CD2143G2-IS (2.8mm) 4MP Dome IP Camera Black with Audio
Hikvision DS-2CD2143G2-IS (2.8mm) 4MP Dome IP Camera Black with Audio
- IP CCTV
- 4MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD2143G2-IS (2.8mm) 4MP Dome IP Camera Black with Audio
Specifications
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens Type: Fixed focal length, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): Yes
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: = 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage: Built-in microSD, up to 512 GB
- Reset Key: Yes
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
- Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email, trigger alarm output (-S model supports)
- Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension: Ø110.8 × 84.7 mm (Ø4.4" × 3.3")
- Package Dimension: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
- Weight: Approx. 530 g (1.2 lb.)
- With Package Weight: Approx. 720 g (1.6 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
- Audio Compression: -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: -S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Audio Sampling Rate: -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: -S: Yes
- Audio: -S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input impedance: 4.7 KO, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max.output amplitude: 3.3 vpp, output impedance: 100 O, interface type: non-equilibrium, mono sound
- Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
