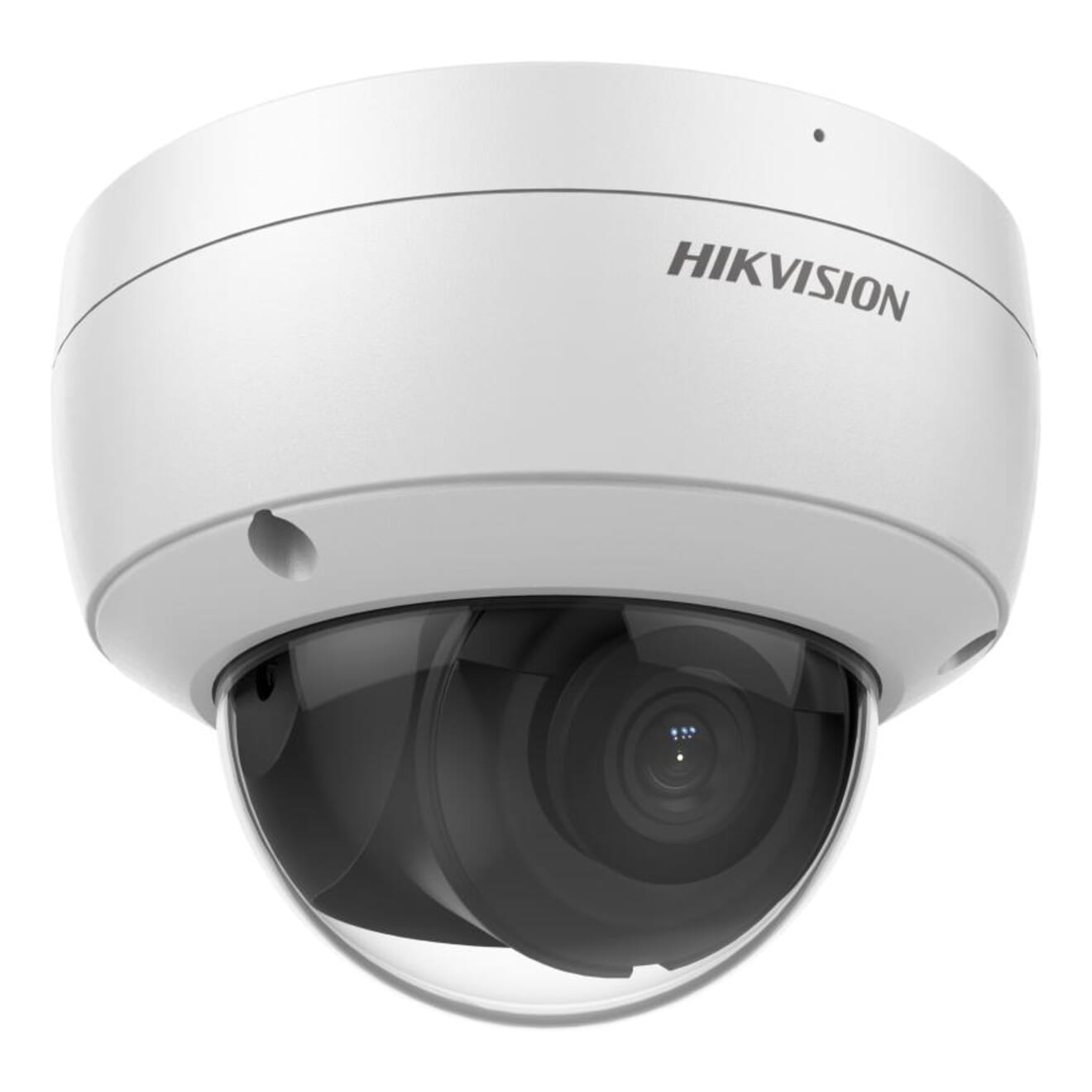

Hikvision DS-2CD2143G2-IU (2.8mm) 4MP AcuSense Fixed Dome Network Camera with Built-In Microphone

Hikvision DS-2CD2143G2-IU (2.8mm) 4MP AcuSense Fixed Dome Network Camera with Built-In Microphone

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2143G2-IU (2.8mm) 4MP AcuSense Fixed Dome Network Camera with Built-In Microphone
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6
  • DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): Yes
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board Storage: Built-in microSD, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
  • Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Dimension: Ø121.4 x 92.2 mm (Ø4.8″ x 3.7″)
  • Package Dimension: 150 x 150 x 141 mm (5.9″ x 5.9″ x 5.6″)
  • Weight: Approx. 570 g (1.3 lb.)
  • With Package Weight: Approx. 806 g (1.8 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Built-in Microphone: Yes

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI
  • DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): Yes
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR

Interface
  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board Storage: Built-in microSD, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
  • Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email

General
  • Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Dimension: Ø121.4 x 92.2 mm (Ø4.8″ x 3.7″)
  • Package Dimension: 150 x 150 x 141 mm (5.9″ x 5.9″ x 5.6″)
  • Weight: Approx. 570 g (1.3 lb.)
  • With Package Weight: Approx. 806 g (1.8 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)

Other
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Built-in Microphone: Yes
