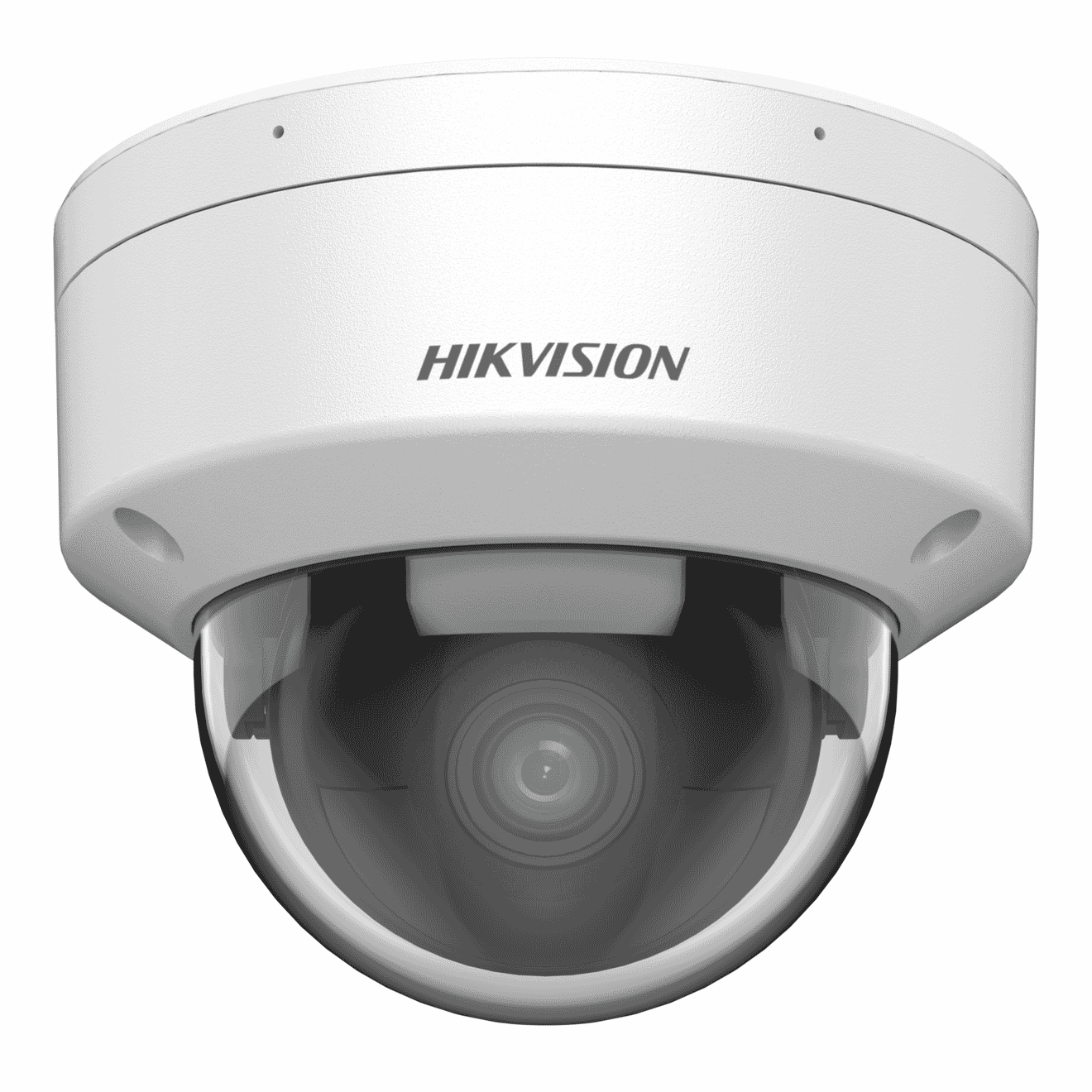

Hikvision DS-2CD2183G2-IU(2.8MM) 8MP Fixed Dome Camera with Audio
Hikvision DS-2CD2183G2-IU(2.8MM) 8MP Fixed Dome Camera with Audio
- IP CCTV
- 8MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD2183G2-IU(2.8MM) 8MP Fixed Dome Camera with Audio
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens Type: Fixed focal lens, 2.8 mm
- Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- DORI: D: 88 m, O: 35 m, R: 17 m, I: 9 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 20 fps (3840 x 2160) 25 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720); 60 Hz: 20 fps (3840 x 2160) 30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
- Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
- Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360),*Third stream is supported under certain settings.
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
- User/Host: Up to 32 users3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client: iVMS-4200,Hik-Connect,Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: = 52 dB
- Image Enhancement: BLC,HLC,3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key: Yes
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
- Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
- Dimension: Ø121.4 mm x 92.2 mm (Ø4.8 x 3.6\")"
- Package Dimension: 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
- Weight: Approx. 550 g (1.2 lb.)
- With Package Weight: Approx. 800 g (1.8 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, anti-flicker, password reset via email, pixel counter
- EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002
- Audio Type: Mono sound
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Built-in Microphone: Yes
- Perimeter Protection: Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)
