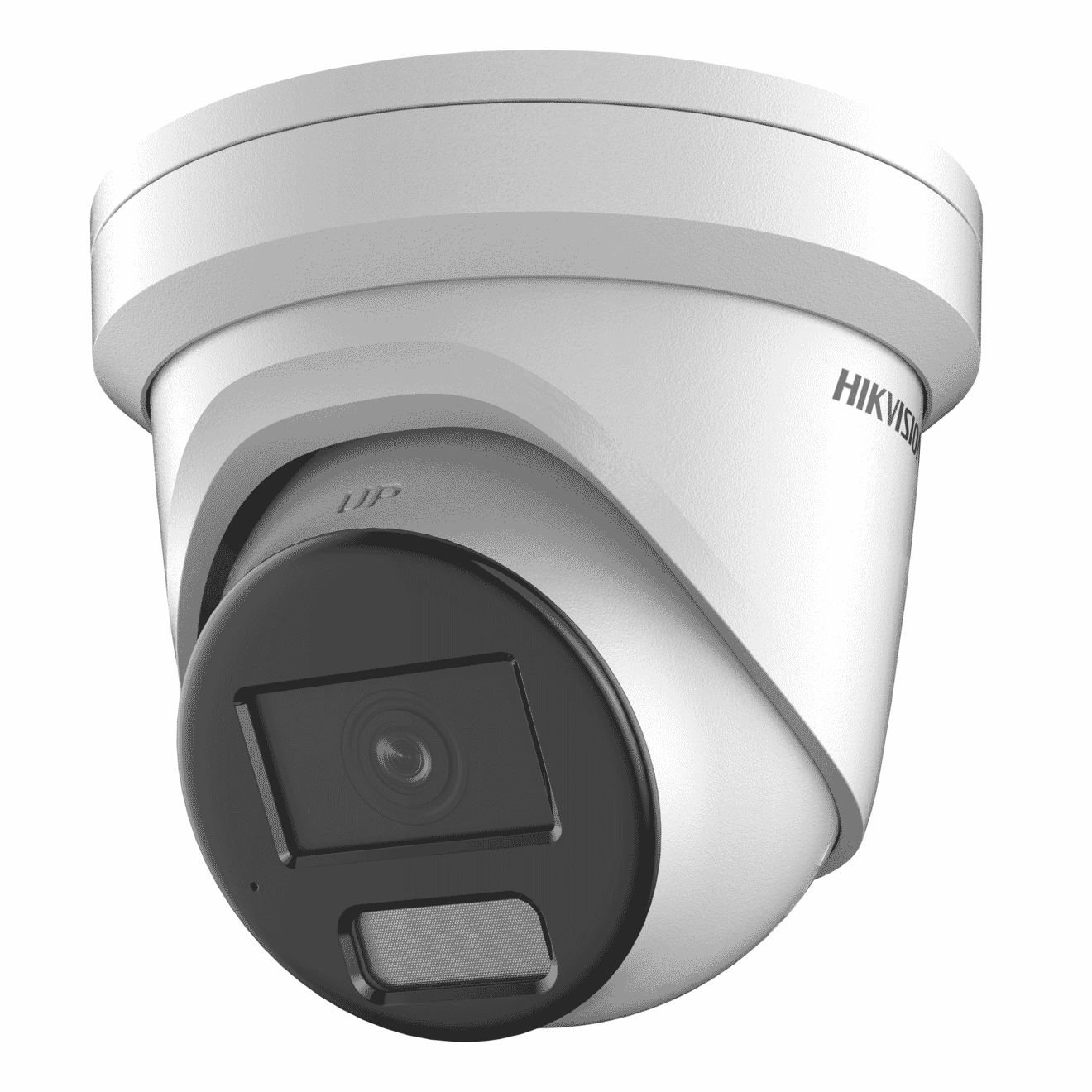

Hikvision DS-2CD2346G2H-IU (2.8mm) 4MP Fixed Turret Camera AcuSense Mic
Hikvision DS-2CD2346G2H-IU (2.8mm) 4MP Fixed Turret Camera AcuSense Mic
- IP CCTV
- 4MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD2346G2H-IU (2.8mm) 4MP Fixed Turret Camera AcuSense Mic
Specifications
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- DORI: 2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
- Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: = 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 4 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key: Yes
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event: Scene change detection
- Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
- Face Capture: Yes
- Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 9 W
- Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
- Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- Weight: Approx. 550 g (1.2 lb.)
- With Package Weight: Approx. 800 g (1.8 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU
- Protection: IP67: IEC 60529-2013
- Depth of Field: 2.8 mm: 1.9 m to 84 mm: 2.5 m to 8
- Audio Type: -U: mono sound
- Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: -U: Yes
- Built-in Microphone: -U: Yes
- Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
- Material: Cover: Metal, main body: Metal
