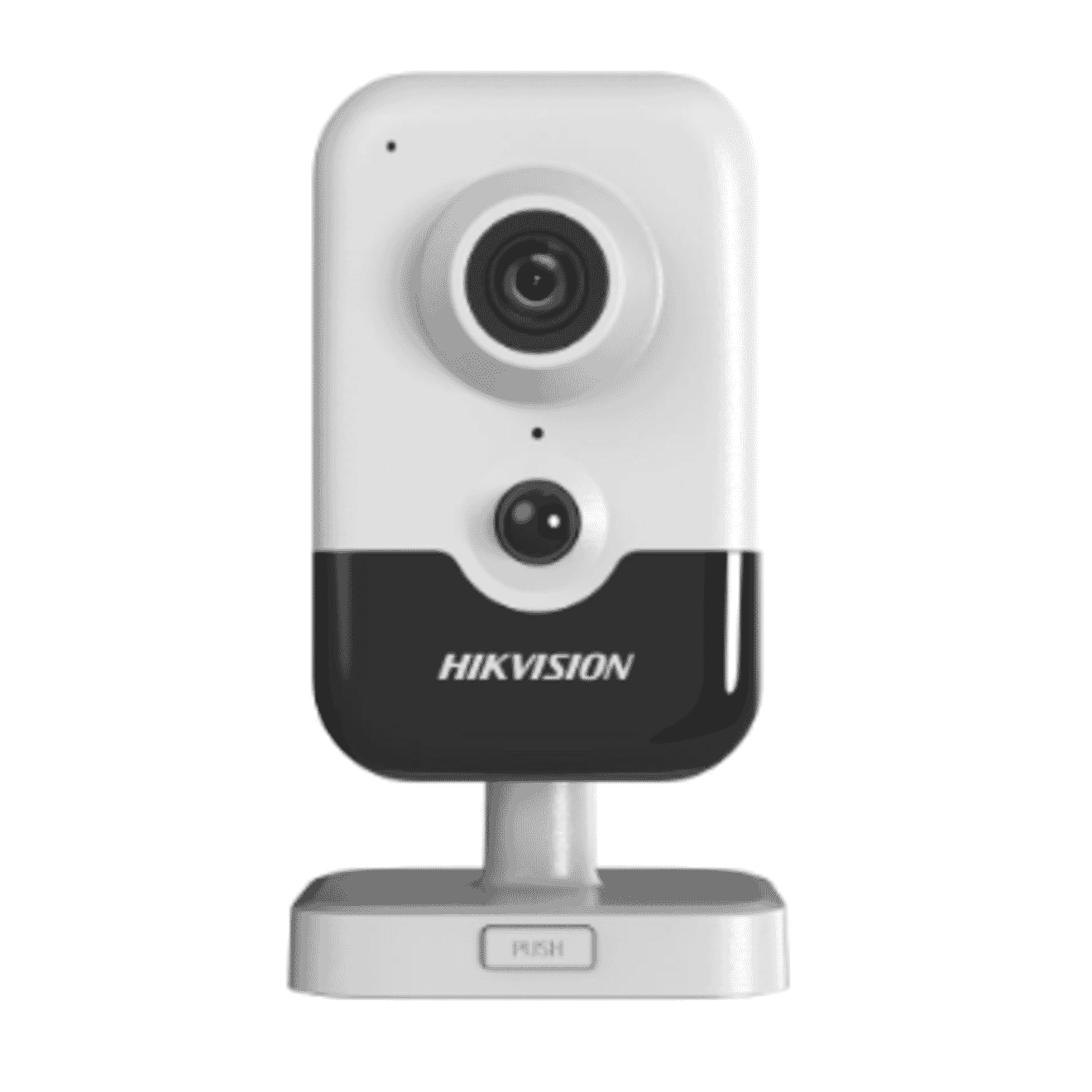

Hikvision DS-2CD2443G2-I (2mm) 4MP AcuSense Fixed Cube Network Camera with Built-In Microphone

Hikvision DS-2CD2443G2-I (2mm) 4MP AcuSense Fixed Cube Network Camera with Built-In Microphone

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2443G2-I (2mm) 4MP AcuSense Fixed Cube Network Camera with Built-In Microphone
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: 2 mm: color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Focal Length & FOV: 2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1°2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
  • Lens Mount: M12
  • Aperture: 2 mm: F2.02.8 mm: F1.64 mm: F1.6
  • DORI: 2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 10 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): Yes
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Face detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning
  • Power: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plugPoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
  • Dimension: 2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6\" × 1.1\")2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6\" × 1.3\") "
  • Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
  • Weight: Approx. 120 g (0.3 lb.)
  • With Package Weight: Approx. 430 g (0.9 lb.)
  • Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Detection Angle: Horizontal: 90°, vertical: 80°
  • Transducer Type: PIR
  • Detection Range: Up to 8 m
  • Built-in Microphone: Yes
  • Built-in Speaker: Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
  • Perimeter Protection: Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)
  • Material: Plastic

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: 2 mm: color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
  • Focal Length & FOV: 2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1°2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
  • Lens Mount: M12
  • Aperture: 2 mm: F2.02.8 mm: F1.64 mm: F1.6

DORI
  • DORI: 2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 10 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): Yes
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Face detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning

General
  • Power: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plugPoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
  • Dimension: 2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6\" × 1.1\")2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1 × 2.6\" × 1.3\") "
  • Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
  • Weight: Approx. 120 g (0.3 lb.)
  • With Package Weight: Approx. 430 g (0.9 lb.)
  • Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Approval
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)

Other
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Detection Angle: Horizontal: 90°, vertical: 80°
  • Transducer Type: PIR
  • Detection Range: Up to 8 m
  • Built-in Microphone: Yes
  • Built-in Speaker: Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
  • Perimeter Protection: Line crossing, intrusionSupport alarm triggering by specified target types (human and vehicle)
  • Material: Plastic
