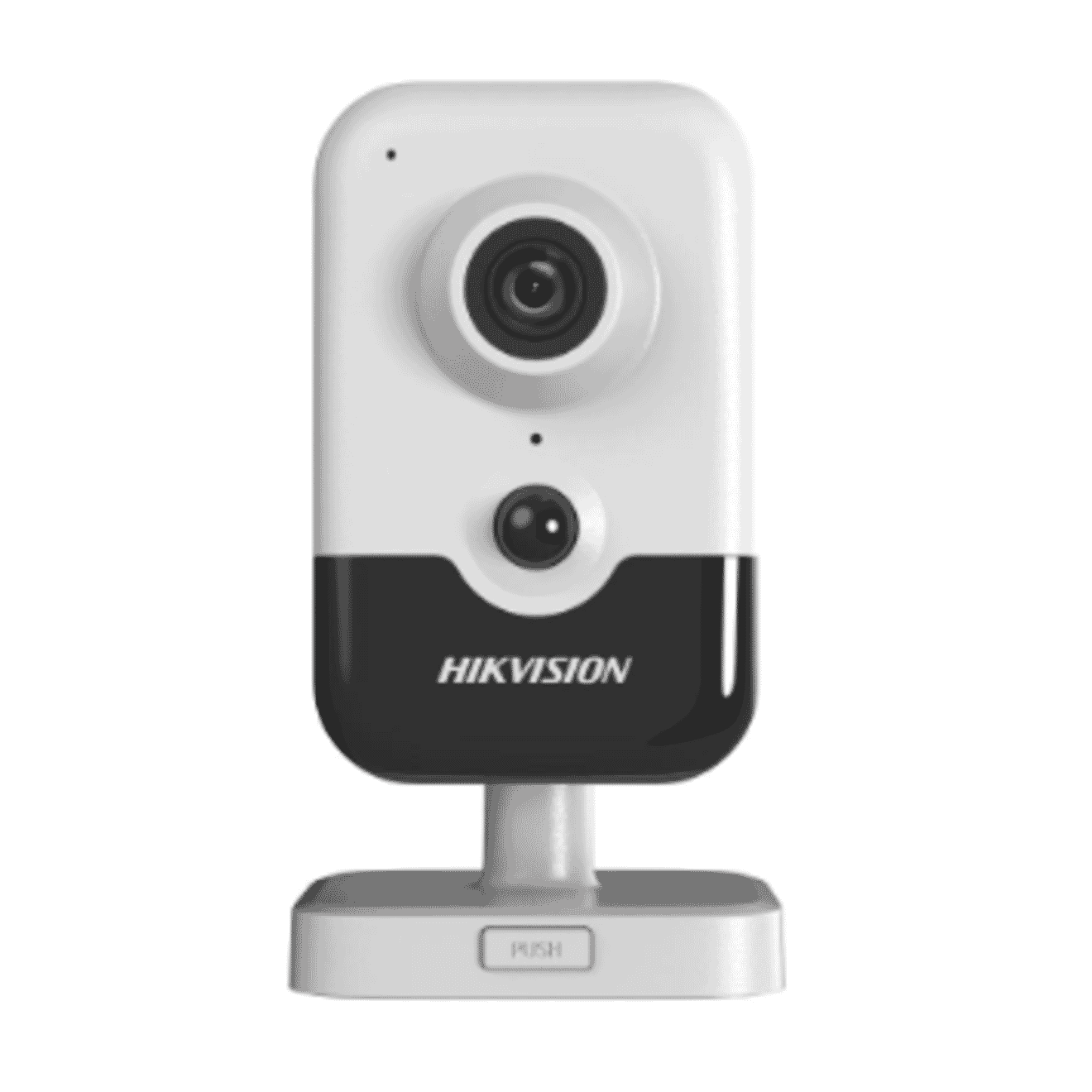

Hikvision DS-2CD2483G2-I (2.8mm) 8MP Fixed Cube Network Camera with 2.8mm Lens
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 3840 x 2160
- Min. Illumination: Colour: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Focal Length & FOV: 2.8 mm, horizontal FOV 107.8°, vertical FOV 57.9°, diagonal FOV 126.7°
- Lens Mount: M12
- Aperture: F2.0
- DORI: 2.8 mm: D: 85.5 m, O: 33.9 m, R: 17.1 m, I: 8.6 m
- Smart Supplement Light: Yes
- Main Stream: 50 Hz: 12.5 fps (3840 x 2160, 3200 x 1800)25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 15 fps (3840 x 2160, 3200 x 1800)30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
- Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
- Video Compression: Main stream: H.265/H.265+Sub-stream: H.265/MJPEGThird stream: H.265
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): Yes
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Package Dimension: 150 mm x 125 mm x 99 mm (5.9" x 4.9" x 3.9")
- With Package Weight: Approx. 340 g (0.7 lb.)
- Storage Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
- EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120 dB
- IR Range: Up to 10 m
- Wavelength: 850 nm
- Sub Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
- H.265+: Main stream supports
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
- PIR Angle: Horizontal: 90°, vertical: 80°
- PIR Range: Up to 8 m
- Built-in Microphone: Yes
- Built-in Speaker: Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
- On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Face Detection: Yes
- Perimeter Protection: Line crossing detection, intrusion detectionSupports human and vehicle targets classification
- Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Web Client Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Power Supply: 12 VDC ± 25%PoE: 802.3af, Class 3
- Power Consumption and Current: 12 VDC, 0.5 A, max. 5.9 WPoE (802.3af, 36 V to 57 V), 0.13 A to 0.2 A, max. 6.9 W
- Power Interface: Ø5.5 mm coaxial power plug
- Camera Material: Plastic
- Camera Dimension: 102.9 mm x 65.2 mm x 32.6 mm (4.1" x 2.6" x 1.3")
- Camera Weight: Approx. 120 g (0.3 lb.)
