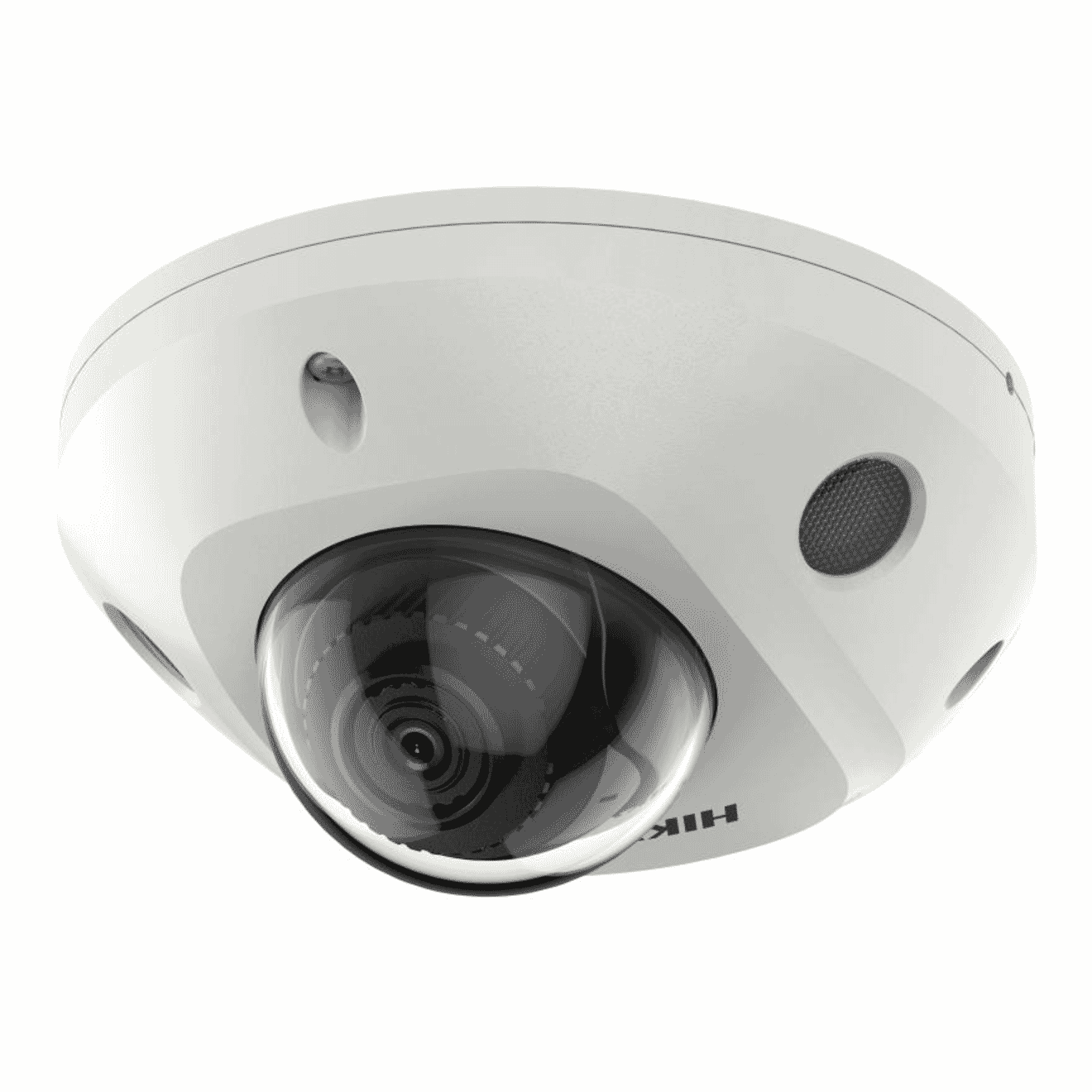

Hikvision DS-2CD2543G2-IWS (2.8mm)(O-STD) 4MP AcuSense Fixed Dome Network Camera with Wi-Fi Support

Hikvision DS-2CD2543G2-IWS (2.8mm)(O-STD) 4MP AcuSense Fixed Dome Network Camera with Wi-Fi Support

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2543G2-IWS (2.8mm)(O-STD) 4MP AcuSense Fixed Dome Network Camera with Wi-Fi Support
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 2.8mm
  • Focal Length & FOV: 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6
  • DORI: 2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
  • Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
  • Dimension: Ø110 mm x 57.4 mm (Ø 4.3" x 2.3")
  • Package Dimension: 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
  • Weight: Approx. 380 g (0.8 lb.)
  • With Package Weight: Approx. 615 g (1.4 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
  • EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
  • Safety: UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)
  • Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)IK8 (IEC 62262:2002)
  • Depth of Field: 2.8 mm: 1.4 m to 8
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Encryption Mode: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Wi-Fi Protocol: 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
  • Frequency Range: 2.4 GHz to 2.4835 GHz
  • Channel Bandwidth: 20/40 MHz
  • Modulation: 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
  • Transfer Rate: 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 300 Mbps
  • Wireless Range: Up to 80 m (The performance varies based on actual environment)
  • Built-in Microphone: Yes
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 1 input, 1 output (max. 12 VDC, 20 mA)
  • RF: FCC ID (FCC Part 15.247(BT or 2.4G));CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 2.8mm
  • Focal Length & FOV: 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI
  • DORI: 2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

General
  • Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
  • Dimension: Ø110 mm x 57.4 mm (Ø 4.3" x 2.3")
  • Package Dimension: 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
  • Weight: Approx. 380 g (0.8 lb.)
  • With Package Weight: Approx. 615 g (1.4 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via email, pixel counter

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
  • Safety: UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)
  • Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
  • Protection: IP67 (IEC 60529-2013)IK8 (IEC 62262:2002)

Other
  • Depth of Field: 2.8 mm: 1.4 m to 8
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Encryption Mode: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Wi-Fi Protocol: 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
  • Frequency Range: 2.4 GHz to 2.4835 GHz
  • Channel Bandwidth: 20/40 MHz
  • Modulation: 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
  • Transfer Rate: 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 300 Mbps
  • Wireless Range: Up to 80 m (The performance varies based on actual environment)
  • Built-in Microphone: Yes
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 1 input, 1 output (max. 12 VDC, 20 mA)
  • RF: FCC ID (FCC Part 15.247(BT or 2.4G));CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
