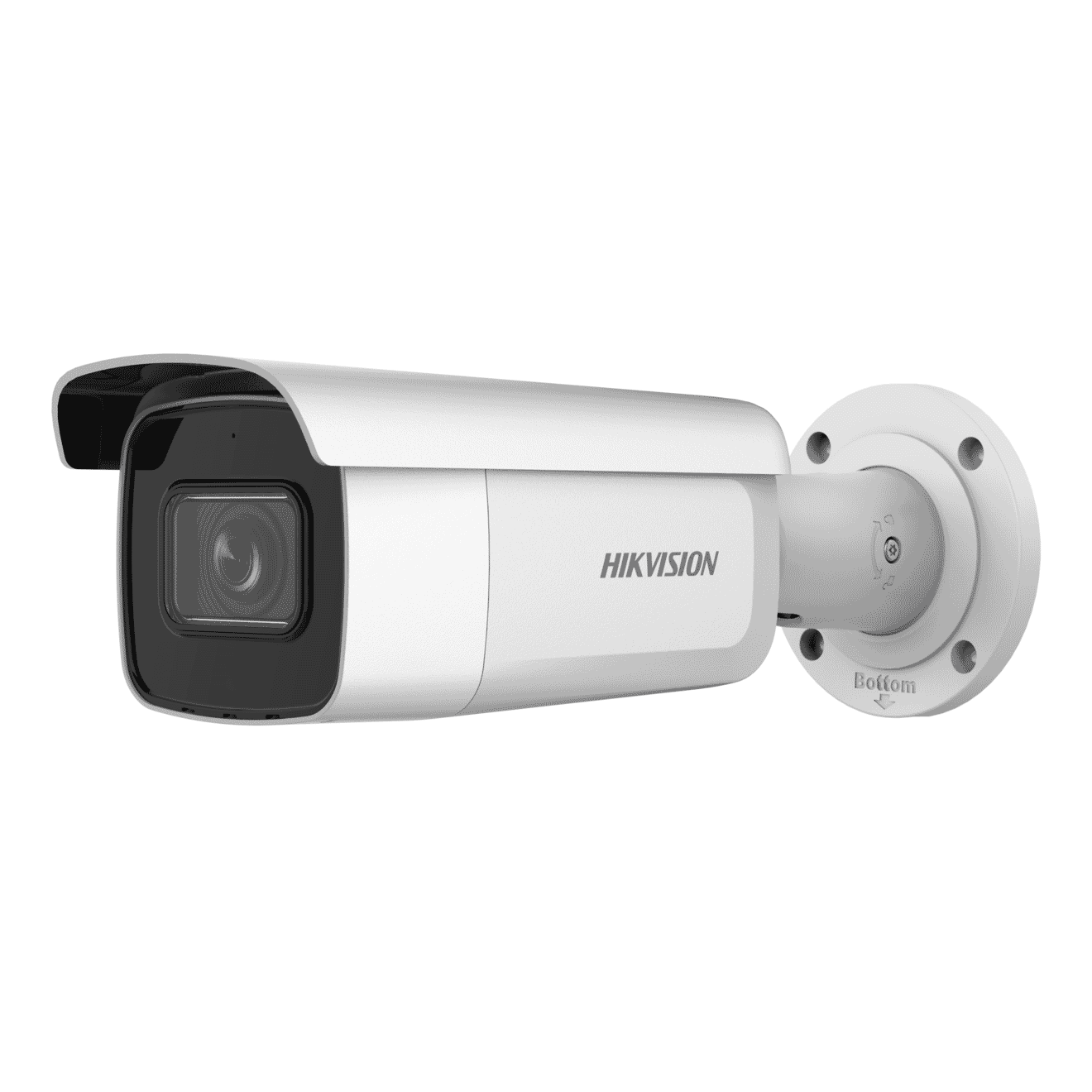

Hikvision DS-2CD2643G2-IZS (2.8-12mm) 4MP AcuSense Motorized Varifocal Bullet Network Camera
Hikvision DS-2CD2643G2-IZS (2.8-12mm) 4MP AcuSense Motorized Varifocal Bullet Network Camera
- IP CCTV
- 4MP
- Verifocal
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD2643G2-IZS (2.8-12mm) 4MP AcuSense Motorized Varifocal Bullet Network Camera
Specifications
- Image Sensor: 1/3€³ Progressive Scan CMOS
- Max. Resolution: 2688 x 1520
- Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
- Lens Mount: Ø14
- Iris Type: Fixed
- Aperture: F1.6
- DORI: 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
- Sub-Stream: 50Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
- Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
- Video Compression: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): Yes
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, Profile G), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: = 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage: Built-in microSD, up to 512 GB
- Reset Key: Yes
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
- Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
- Power: 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
- Dimension: 308.5 x 97.9 x 93 mm (12.2" x 3.9" x 3.7")
- Package Dimension: 385 x 190 x 180 mm (15.2" x 7.5" x 7.1")
- Weight: Approx. 1390 g (3.1 lb.)
- With Package Weight: Approx. 1961 g (4.3 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KO, interface type: non-equilibrium;1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 O, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
