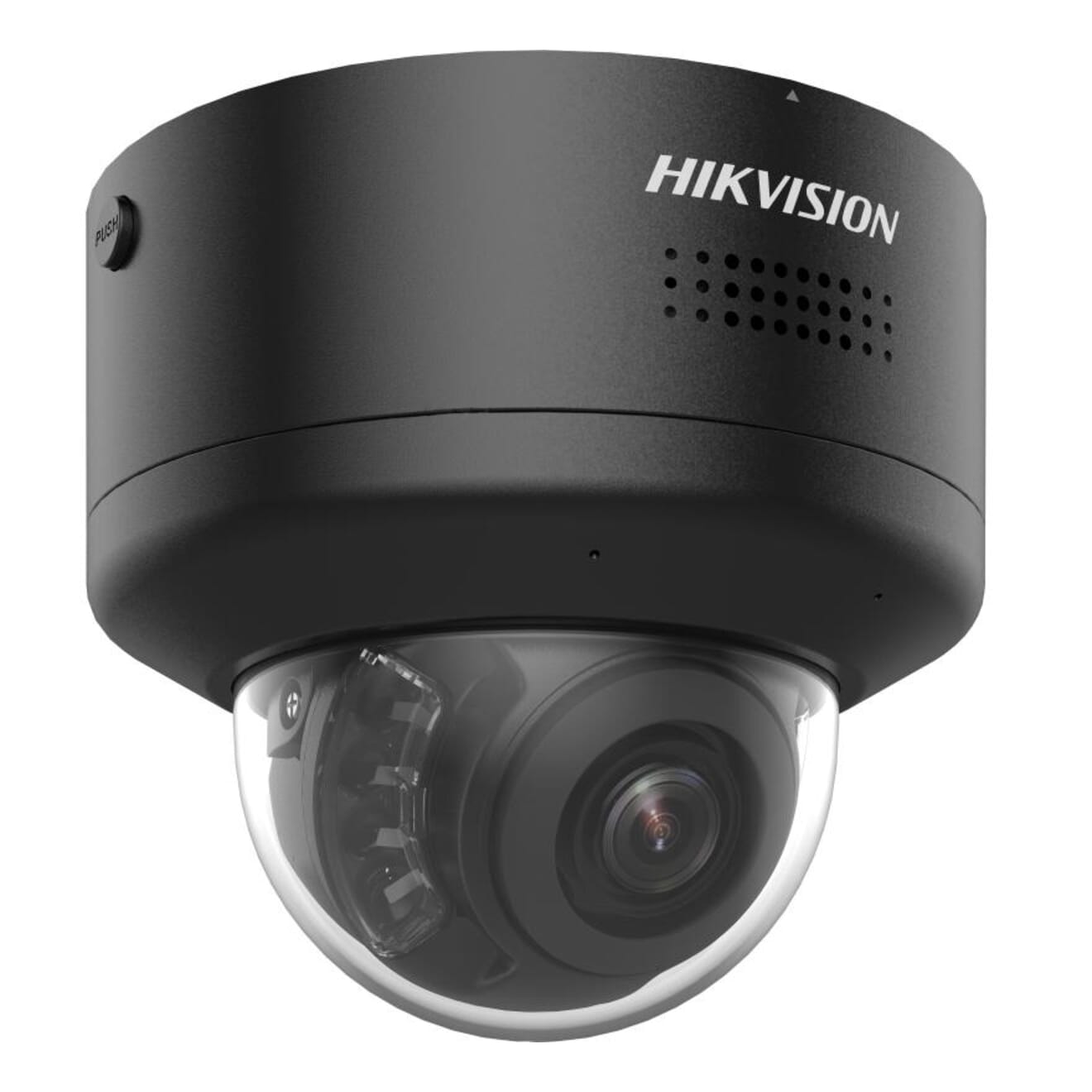

Hikvision DS-2CD2746G2H-IPTRZS2U/SL (2.8–12 mm)/Black 4 MP AcuSense PTRZ Varifocal Dome Network Camera

Hikvision DS-2CD2746G2H-IPTRZS2U/SL (2.8–12 mm)/Black 4 MP AcuSense PTRZ Varifocal Dome Network Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2746G2H-IPTRZS2U/SL (2.8–12 mm)/Black 4 MP AcuSense PTRZ Varifocal Dome Network Camera
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Remote adjustment (Max. 1000 cycles)Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°
  • Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
  • Lens Mount: Integrated
  • Iris Type: Fixed
  • Aperture: Max. F1.2
  • DORI: Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 mTele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz:25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz:30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz:25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz:30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz:10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz:10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: scene change detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing
  • Face Capture: Yes
  • Power: 12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,PoE: IEEE 802.3at, Class 4, max. 18 W
  • Dimension: Ø155 mm x 140.4 mm (Ø6.10" x 5.53")
  • Package Dimension: 203 mm x 203 mm x 230 mm (8.0" x 8.0" x 9.1")
  • Weight: Approx. 840 g (1.9 lb.)
  • With Package Weight: Approx. 1450 g (3.2 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,IC: ICES-003: Issue 7,RCM: AS/NZS CISPR 32: 2015
  • Safety: CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IK10: IEC 62262:2002,IP66: IEC 60529-2013
  • Depth of Field: 1 m to 8
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Built-in Speaker: 1 built-in speakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
  • Audio: Built-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Material: Metal
  • Flashing Light: White Light

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Remote adjustment (Max. 1000 cycles)Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lens
  • Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
  • Lens Mount: Integrated
  • Iris Type: Fixed
  • Aperture: Max. F1.2

DORI
  • DORI: Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 mTele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz:25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz:30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz:25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz:30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz:10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz:10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: scene change detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing

Deep Learning Function
  • Face Capture: Yes

General
  • Power: 12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,PoE: IEEE 802.3at, Class 4, max. 18 W
  • Dimension: Ø155 mm x 140.4 mm (Ø6.10" x 5.53")
  • Package Dimension: 203 mm x 203 mm x 230 mm (8.0" x 8.0" x 9.1")
  • Weight: Approx. 840 g (1.9 lb.)
  • With Package Weight: Approx. 1450 g (3.2 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log

Approval
  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,IC: ICES-003: Issue 7,RCM: AS/NZS CISPR 32: 2015
  • Safety: CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IK10: IEC 62262:2002,IP66: IEC 60529-2013

Other
  • Depth of Field: 1 m to 8
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Built-in Speaker: 1 built-in speakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
  • Audio: Built-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Material: Metal
  • Flashing Light: White Light
