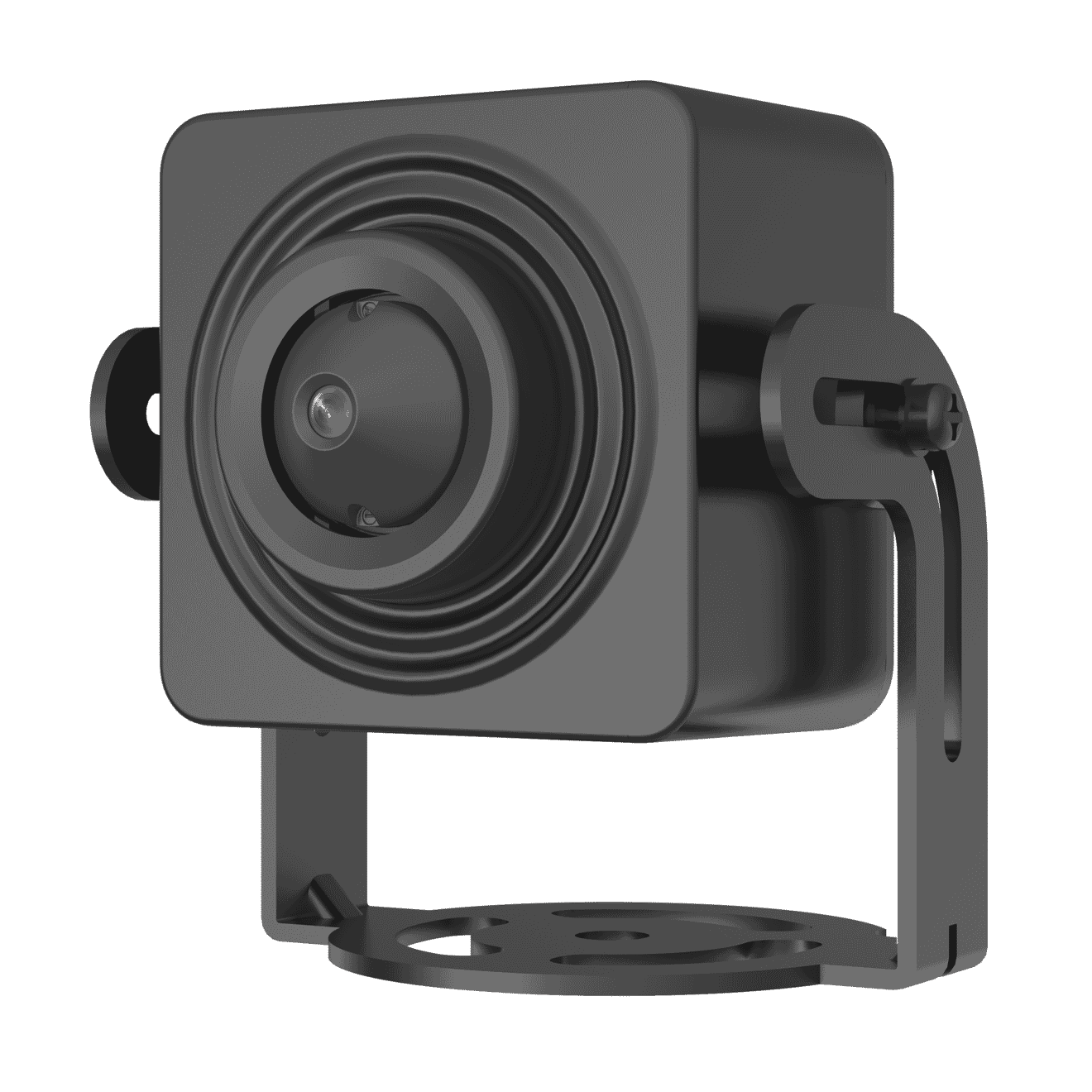

Hikvision DS-2CD2D25G1-D/NF (2.8mm) Covert Network Camera

Hikvision DS-2CD2D25G1-D/NF (2.8mm) Covert Network Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2D25G1-D/NF (2.8mm) Covert Network Camera
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
  • Shutter Time: 1/3 s to 1/100,000 s
  • Focal Length & FOV: 2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°
  • Lens Mount: Mini
  • Iris Type: Fixed
  • Aperture: 2.8 mm: F2.53.7 mm: F2.5
  • DORI: 2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m
  • Main Stream: 50 Hz: 50 fps (1920 × 1080, 1280 × 720)60 Hz: 60 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Video Compression: Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CVR/BVR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): Support 1 fixed region for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 15 channels
  • API: Open Network Video Interface, ISAPI, SDK, ISUP 5.0
  • User/Host: Up to 32 users3 level: administrator, operator, and user
  • Network Storage: NAS (NFS, SMB/CIFS)
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE10, IE11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, defog, 3D DNR
  • Privacy Mask: Yes
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Reset Key: Yes
  • Basic Event: Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
  • Smart Event: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionAudio exception detection, defocus detection, scene change detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
  • Power: 12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug
  • Dimension: 31.5 mm × 31.5 mm × 39.7 mm (1.2" × 1.2" × 1.6")
  • Package Dimension: 130 mm × 104 mm × 85 mm (5.1" × 4.1" × 3.3")
  • Weight: Approx. 93 g (0.2 lb.)
  • With Package Weight: Approx. 202 g (0.4 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
  • General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
  • EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017);BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • Audio Type: Mono
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz
  • Environment Noise Filtering: Yes
  • Audio: 1 input (line in)
  • Material: Zinc alloy

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
  • Shutter Time: 1/3 s to 1/100,000 s

Lens
  • Focal Length & FOV: 2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°
  • Lens Mount: Mini
  • Iris Type: Fixed
  • Aperture: 2.8 mm: F2.53.7 mm: F2.5

DORI
  • DORI: 2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m

Video
  • Main Stream: 50 Hz: 50 fps (1920 × 1080, 1280 × 720)60 Hz: 60 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Video Compression: Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CVR/BVR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): Support 1 fixed region for main stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 15 channels
  • API: Open Network Video Interface, ISAPI, SDK, ISUP 5.0
  • User/Host: Up to 32 users3 level: administrator, operator, and user
  • Network Storage: NAS (NFS, SMB/CIFS)
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Plug-in required live view: IE10, IE11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC, HLC, defog, 3D DNR
  • Privacy Mask: Yes

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Reset Key: Yes

Event
  • Basic Event: Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
  • Smart Event: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionAudio exception detection, defocus detection, scene change detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General
  • Power: 12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug
  • Dimension: 31.5 mm × 31.5 mm × 39.7 mm (1.2" × 1.2" × 1.6")
  • Package Dimension: 130 mm × 104 mm × 85 mm (5.1" × 4.1" × 3.3")
  • Weight: Approx. 93 g (0.2 lb.)
  • With Package Weight: Approx. 202 g (0.4 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
  • General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017);BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);LOA (IEC/EN 60950-1)
  • Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)

Other
  • Audio Type: Mono
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz
  • Environment Noise Filtering: Yes
  • Audio: 1 input (line in)
  • Material: Zinc alloy
