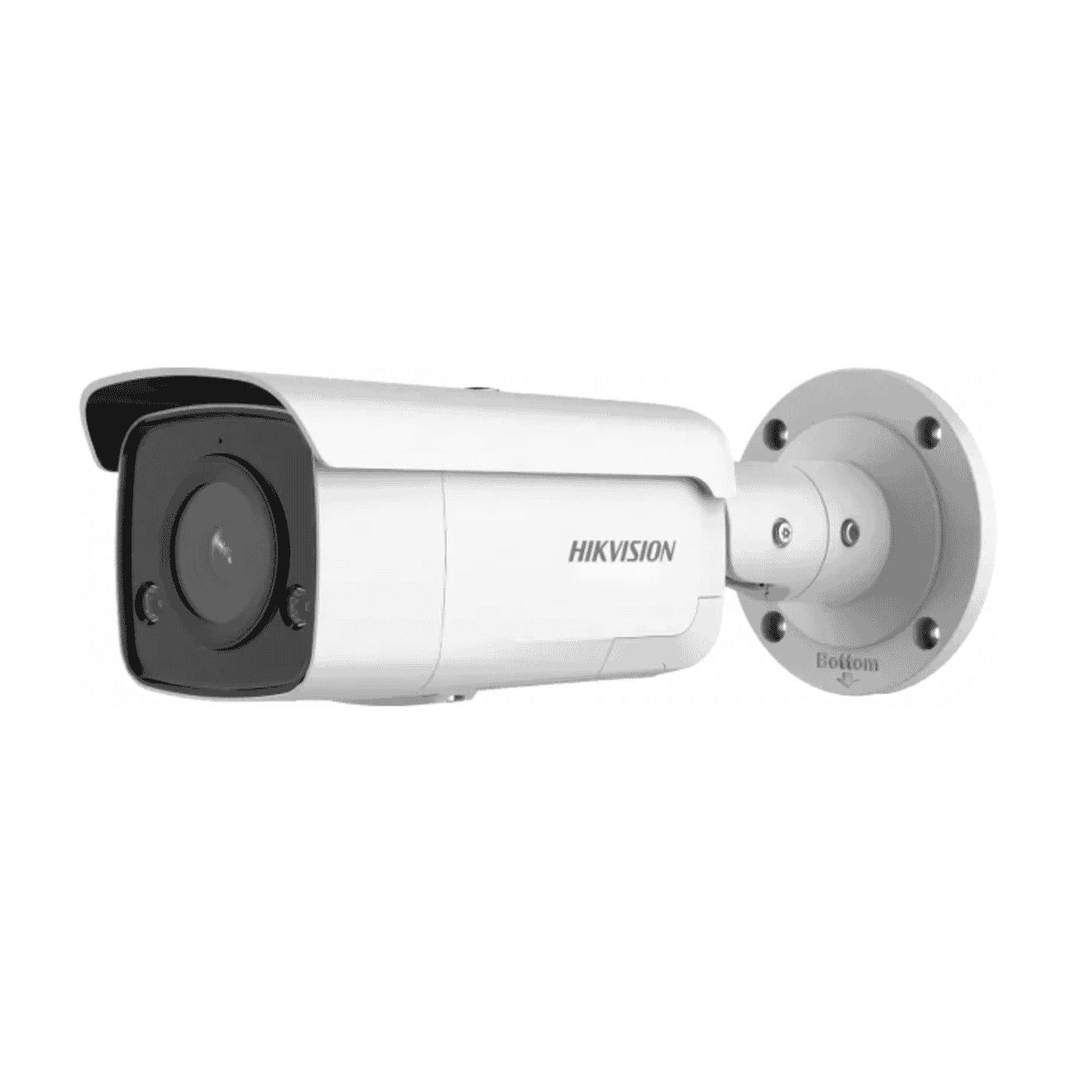

Hikvision DS-2CD2T66G2-2I (6mm)(C) 6MP AcuSense Bullet Camera

Hikvision DS-2CD2T66G2-2I (6mm)(C) 6MP AcuSense Bullet Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 6MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD2T66G2-2I (6mm)(C) 6MP AcuSense Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 1/2.4" Progressive Scan CMOS
  • Max. Resolution: 3200 × 1800
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6
  • DORI: 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
  • Supplement Light Type: IR
  • Supplement Light Range: -2I: up to 60 m; -4I: up to 80 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log,TLS 1.1/1.2/1.3,host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE10+,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Face Capture: Yes
  • Power: -2I:12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, max. 9 W-4I:12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, max. 12 W
  • Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
  • Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
  • Weight: Approx. 1085 g (2.4 lb.)
  • With Package Weight: Approx. 1604 g (3.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013

Camera
  • Image Sensor: 1/2.4" Progressive Scan CMOS
  • Max. Resolution: 3200 × 1800
  • Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.6

DORI
  • DORI: 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: -2I: up to 60 m; -4I: up to 80 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
  • Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log,TLS 1.1/1.2/1.3,host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE10+,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

Deep Learning Function
  • Face Capture: Yes

General
  • Power: -2I:12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, max. 9 W-4I:12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3af, max. 12 W
  • Dimension: Ø105 mm × 290 mm (Ø4.1" × 11.4")
  • Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
  • Weight: Approx. 1085 g (2.4 lb.)
  • With Package Weight: Approx. 1604 g (3.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013
