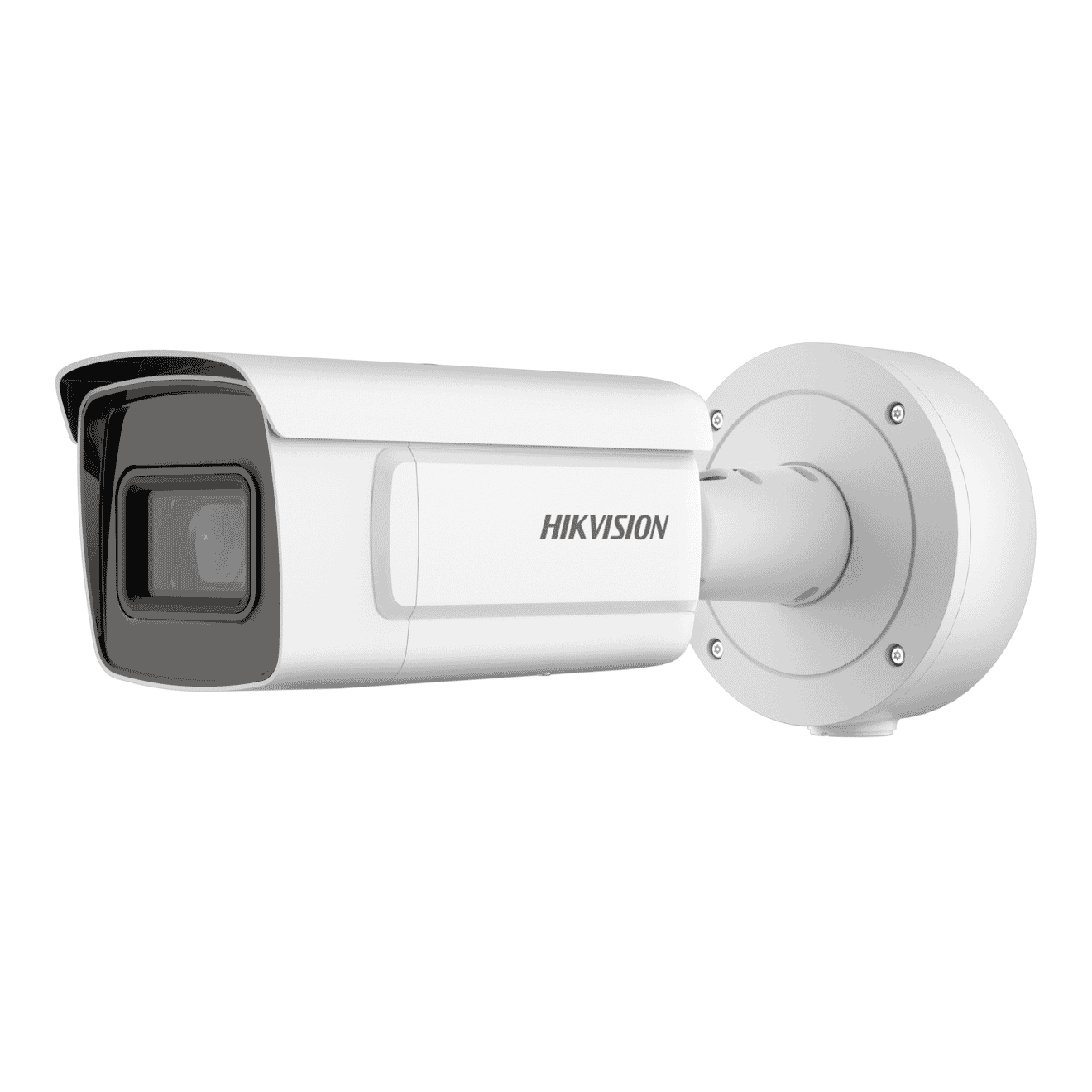

Hikvision DS-2CD3A26G2T-IZS (4.7-71mm)(O-STD) Network Camera

Hikvision DS-2CD3A26G2T-IZS (4.7-71mm)(O-STD) Network Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD3A26G2T-IZS (4.7-71mm)(O-STD) Network Camera
Login to View Price

Specifications

  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 x 1080
  • Min. Illumination: Colour: 0.002 Lux @ (F1.4, AGC ON),0 Lux with IR
  • Shutter Time: 1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens Type: Varifocal lens, motorized lens, 4.7 to 71 mm
  • Focal Length & FOV: 4.7 to 71 mm, horizontal FOV: 57.7° to 3.66°, vertical FOV: 33.2° to 2.75°, diagonal FOV: 65.2° to 4.58°
  • Lens Mount: Integrated
  • Iris Type: DC iris
  • Aperture: F1.6
  • DORI: Wide: D: 73.5 m (247 ft), O: 29.2 m (95.8 ft), R: 14.7 m (48.2 ft), I: 7.4 m (24.3 ft)Tele: D: 1517.2 m (4977.7 ft), O: 602.1 m (1975 ft), R: 303.4 m (994.1 ft), I: 151.7 m (497.7 ft)
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 150 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: up to 50 fps (1920 x 1080, 1280 x 720)60 Hz: up to 60 fps (1920 x 1080, 1280 x 720)*High frame rate is supported under certain settings.
  • Sub-Stream: 50 Hz: 25 fps (640 x 480, 640 x 360)60 Hz: 30 fps (640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264Fourth stream: H.265/H.264/MJPEG*Third stream and fourth stream are supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, SRTP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture, audible warning
  • Face Capture: Yes
  • Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W,24 VAC ± 20%, 0.75 A, max. 10.8 W,PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W,two-core terminal block
  • Dimension: 144 mm x 140 mm x 349.2 mm (5.7" x 5.5" x 13.7")
  • Package Dimension: 405 mm x 190 mm x 180 mm (15.9" x 7.5" x 7.1")
  • Weight: Approx. 1835 g (4.1 lb.)
  • With Package Weight: Approx. 2875 g (6.3 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU
  • Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Min. Focus Distance: W: 0.7 m (2.3 ft)T: 20 m (65.6 ft)
  • Depth of Field: 2.6 m to 8
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)*Fourth stream is supported under certain settings.
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Material: Front cover: metal, body: metal, bracket: metal

Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Max. Resolution: 1920 x 1080
  • Min. Illumination: Colour: 0.002 Lux @ (F1.4, AGC ON),0 Lux with IR
  • Shutter Time: 1 s to 1/30,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
  • Lens Type: Varifocal lens, motorized lens, 4.7 to 71 mm
  • Focal Length & FOV: 4.7 to 71 mm, horizontal FOV: 57.7° to 3.66°, vertical FOV: 33.2° to 2.75°, diagonal FOV: 65.2° to 4.58°
  • Lens Mount: Integrated
  • Iris Type: DC iris
  • Aperture: F1.6

DORI
  • DORI: Wide: D: 73.5 m (247 ft), O: 29.2 m (95.8 ft), R: 14.7 m (48.2 ft), I: 7.4 m (24.3 ft)Tele: D: 1517.2 m (4977.7 ft), O: 602.1 m (1975 ft), R: 303.4 m (994.1 ft), I: 151.7 m (497.7 ft)

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 150 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: up to 50 fps (1920 x 1080, 1280 x 720)60 Hz: up to 60 fps (1920 x 1080, 1280 x 720)*High frame rate is supported under certain settings.
  • Sub-Stream: 50 Hz: 25 fps (640 x 480, 640 x 360)60 Hz: 30 fps (640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264Fourth stream: H.265/H.264/MJPEG*Third stream and fourth stream are supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR/VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, SRTP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: = 52 dB
  • Image Enhancement: BLC, HLC, 3D DNR
  • Privacy Mask: 8 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture, audible warning

Deep Learning Function
  • Face Capture: Yes

General
  • Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W,24 VAC ± 20%, 0.75 A, max. 10.8 W,PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W,two-core terminal block
  • Dimension: 144 mm x 140 mm x 349.2 mm (5.7" x 5.5" x 13.7")
  • Package Dimension: 405 mm x 190 mm x 180 mm (15.9" x 7.5" x 7.1")
  • Weight: Approx. 1835 g (4.1 lb.)
  • With Package Weight: Approx. 2875 g (6.3 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU
  • Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002

Other
  • Min. Focus Distance: W: 0.7 m (2.3 ft)T: 20 m (65.6 ft)
  • Depth of Field: 2.6 m to 8
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)*Fourth stream is supported under certain settings.
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Environment Noise Filtering: Yes
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Material: Front cover: metal, body: metal, bracket: metal
