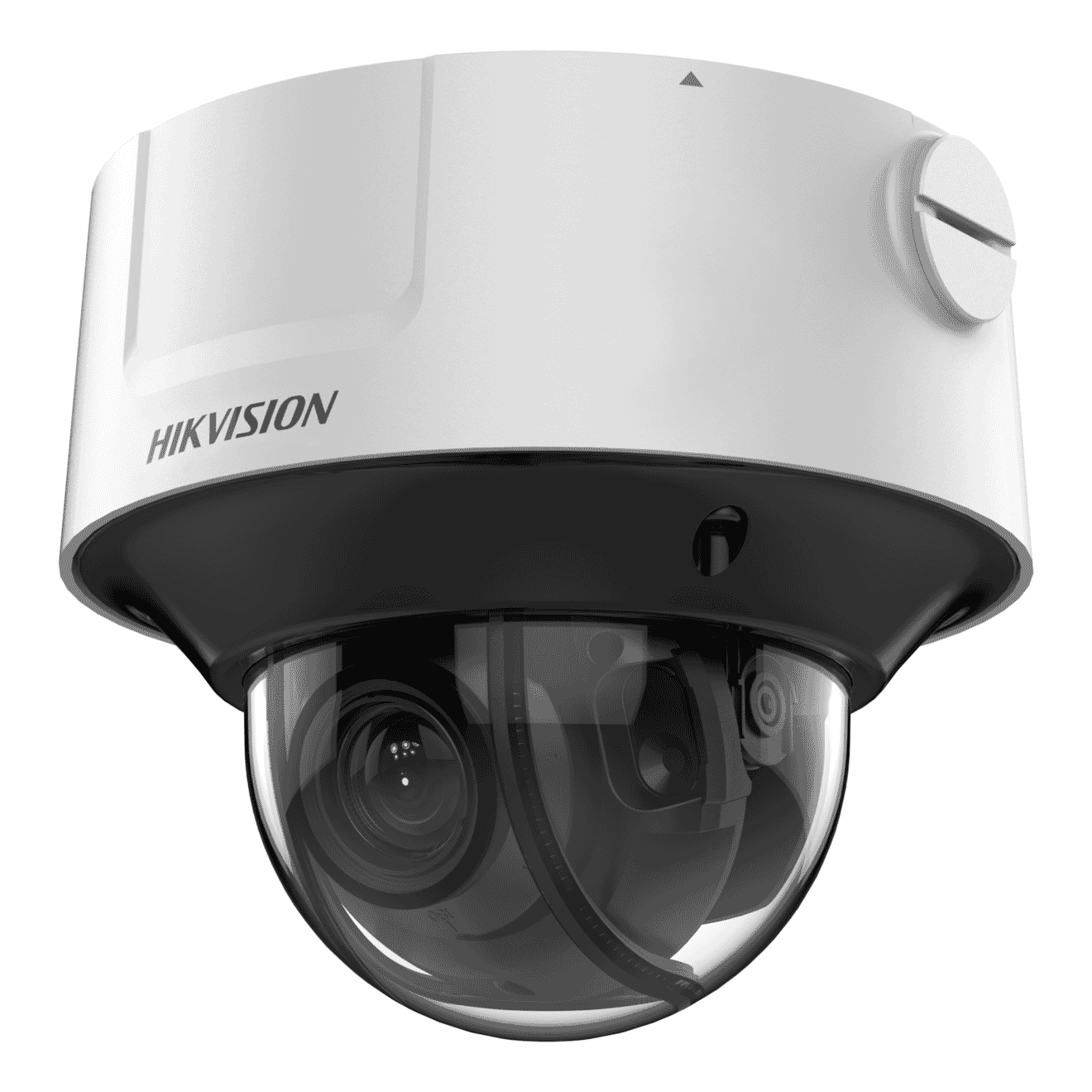

Hikvision DS-2CD3D46G2T-IZMSU (2.8-12mm)(C) 4MP HDMI Varifocal Dome Camera

Hikvision DS-2CD3D46G2T-IZMSU (2.8-12mm)(C) 4MP HDMI Varifocal Dome Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Verifocal
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD3D46G2T-IZMSU (2.8-12mm)(C) 4MP HDMI Varifocal Dome Camera
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.0014 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48°
  • Lens Mount: Integrated
  • Iris Type: P-iris
  • Aperture: F1.2
  • DORI: 2.8 to 12 mm: D: 60 m to 149 m, O: 23 m to 59 m, R: 12 m to 29 m, I: 6 m to 14 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (640 x 480, 640 x 360)60 Hz: 30 fps (640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360),*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,*Third stream and fourth stream are supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 140 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 8 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture, trigger alarm output, audible warning
  • Face Capture: Yes
  • Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W, two-core terminal block, reverse polarity protection,24 VAC ± 20%, 0.75 A, max. 10.8 W,PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
  • Dimension: Ø162 mm x 141.8 mm (Ø6.4" x 5.6")
  • Package Dimension: 251 mm x 215 mm x 189 mm (9.9" x 8.5" x 7.4")
  • Weight: Approx. 1420 g (3.1 lb.)
  • With Package Weight: Approx. 2058 g (4.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002
  • Depth of Field: 2.8 to 12 mm: 1.5 m to 8
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360),*Fourth stream is supported under certain settings.
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Video Output: HDMI (HDMI 1.4, no adapter included): 1920 x 1080P@25/30/50/60 Hz
  • Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Built-in Microphone: Yes
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A)
  • Power Output: 12 VDC, max. 100 mA
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Material: Metal

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.0014 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
  • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48°
  • Lens Mount: Integrated
  • Iris Type: P-iris
  • Aperture: F1.2

DORI
  • DORI: 2.8 to 12 mm: D: 60 m to 149 m, O: 23 m to 59 m, R: 12 m to 29 m, I: 6 m to 14 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 40 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (640 x 480, 640 x 360)60 Hz: 30 fps (640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360),*Third stream is supported under certain settings.
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,*Third stream and fourth stream are supported under certain settings.
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 140 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR
  • Privacy Mask: 8 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function
  • Face Capture: Yes

General
  • Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W, two-core terminal block, reverse polarity protection,24 VAC ± 20%, 0.75 A, max. 10.8 W,PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
  • Dimension: Ø162 mm x 141.8 mm (Ø6.4" x 5.6")
  • Package Dimension: 251 mm x 215 mm x 189 mm (9.9" x 8.5" x 7.4")
  • Weight: Approx. 1420 g (3.1 lb.)
  • With Package Weight: Approx. 2058 g (4.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002

Other
  • Depth of Field: 2.8 to 12 mm: 1.5 m to 8
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360),*Fourth stream is supported under certain settings.
  • Target Cropping: Yes
  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Video Output: HDMI (HDMI 1.4, no adapter included): 1920 x 1080P@25/30/50/60 Hz
  • Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Built-in Microphone: Yes
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A)
  • Power Output: 12 VDC, max. 100 mA
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • Material: Metal
