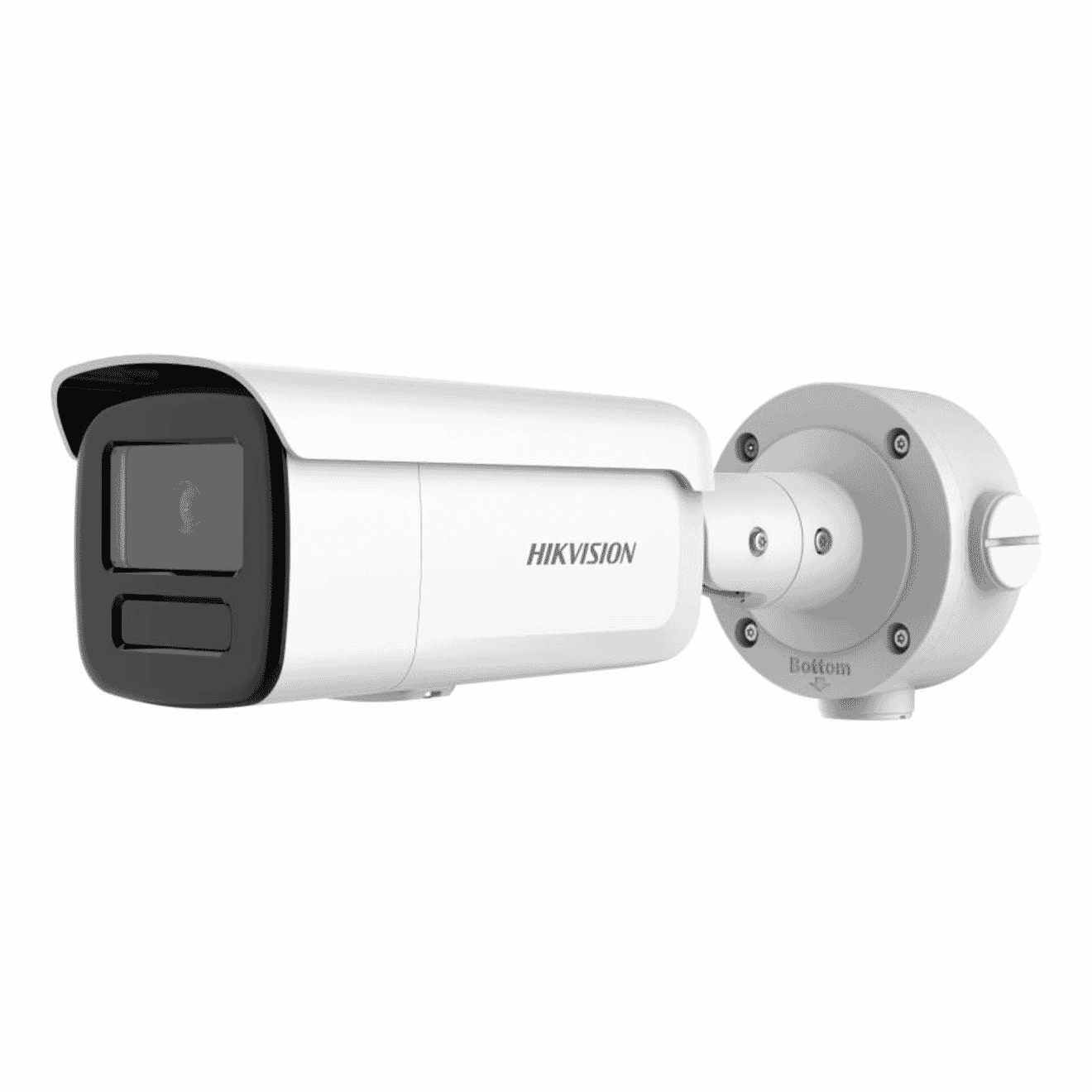

Hikvision DS-2CD3T46G2-4ISY (4mm)(H) 4MP AcuSense Fixed Bullet Camera

Hikvision DS-2CD3T46G2-4ISY (4mm)(H) 4MP AcuSense Fixed Bullet Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD3T46G2-4ISY (4mm)(H) 4MP AcuSense Fixed Bullet Camera
Login to View Price

Specifications

  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens Type: Fixed focal lens, 4mm
  • Focal Length & FOV: 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.4
  • DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 90 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz:25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz:30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR, Defog
  • Privacy Mask: 4 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
  • Smart Event: scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, audible warning
  • Face Capture: Yes
  • Power: 12 VDC ± 25%, 1.05 A, max. 12.6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 14.5 W
  • Dimension: 325.7 mm x 93.3 mm x 91.2 mm (12.8" x 3.7" x 3.6")
  • Package Dimension: 386 mm x 156 mm x 155 mm (15.2" x 6.1" x 6.1")
  • Weight: Approx. 1100 g (2.4 lb.)
  • With Package Weight: Approx. 1820 g (3.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013
  • Open Resources: Memory: 60 MB,Smart RAM: 400 MB,eMMC: 2 GB
  • Computing Power: 1.5 TOPS
  • Open Capability: HEOP 2.0 OpendevSDK
  • Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
  • Programming Language: C,C++
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)
  • Target Cropping: Yes
  • e-PTZ: Support Patrol and Auto Tracking settings
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • People Counting: Yes
  • Material: Metal
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)

Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Max. Resolution: 2688 x 1520
  • Min. Illumination: Colour: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1/3 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
  • Lens Type: Fixed focal lens, 4mm
  • Focal Length & FOV: 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
  • Lens Mount: M12
  • Iris Type: Fixed
  • Aperture: F1.4

DORI
  • DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 90 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz:25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz:30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
  • Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
  • Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
  • Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
  • Simultaneous Live View: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR): 120 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR, Defog
  • Privacy Mask: 4 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
  • Smart Event: scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function
  • Face Capture: Yes

General
  • Power: 12 VDC ± 25%, 1.05 A, max. 12.6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 14.5 W
  • Dimension: 325.7 mm x 93.3 mm x 91.2 mm (12.8" x 3.7" x 3.6")
  • Package Dimension: 386 mm x 156 mm x 155 mm (15.2" x 6.1" x 6.1")
  • Weight: Approx. 1100 g (2.4 lb.)
  • With Package Weight: Approx. 1820 g (3.5 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013

Other
  • Open Resources: Memory: 60 MB,Smart RAM: 400 MB,eMMC: 2 GB
  • Computing Power: 1.5 TOPS
  • Open Capability: HEOP 2.0 OpendevSDK
  • Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
  • Programming Language: C,C++
  • Fourth Stream: 50 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1280 x 720, 640 x 480, 640 x 360)
  • Target Cropping: Yes
  • e-PTZ: Support Patrol and Auto Tracking settings
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
  • People Counting: Yes
  • Material: Metal
  • Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
