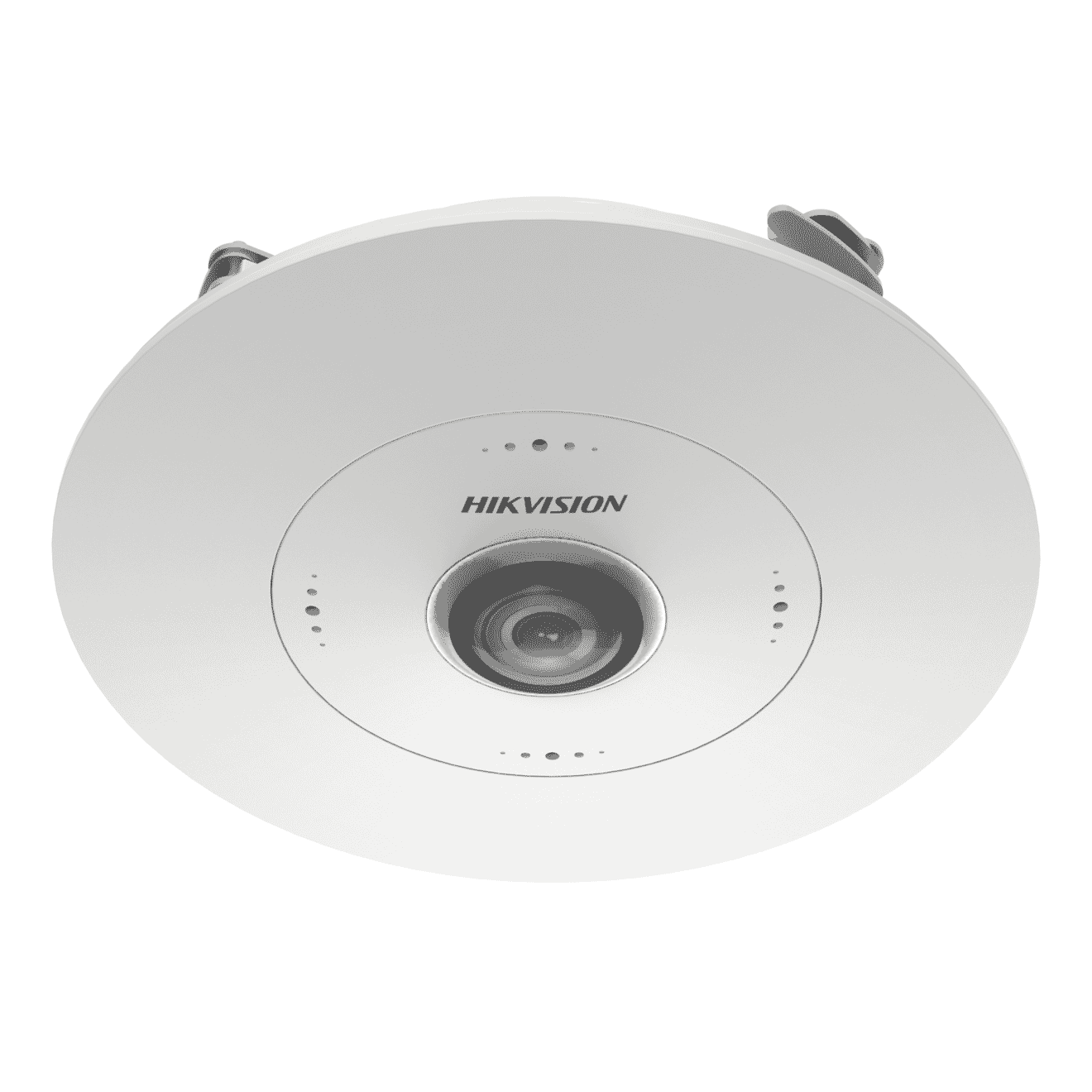

Hikvision DS-2CD6365G1-S/RC (1.16mm) 6MP Fisheye Network Camera Recessed Mount
Hikvision DS-2CD6365G1-S/RC (1.16mm) 6MP Fisheye Network Camera Recessed Mount
- IP CCTV
- 6MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD6365G1-S/RC (1.16mm) 6MP Fisheye Network Camera Recessed Mount
Specifications
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 2560 × 2560
- Min. Illumination: Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON)
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Lens Type: Fixed focal lens, 1.16 mm
- Focal Length & FOV: 1.16 mm, horizontal FOV 180°, vertical FOV 180°
- Iris Type: Fixed
- Aperture: F2.25
- DORI: D: 23.2 mO: 9.2 mR: 4.6 mI: 2.3 m
- Main Stream: 50 Hz: 25 fps/60 Hz: 30 fps:Fisheye View:2560 × 2560, 2048 × 2048, 1280 × 1280180 Panorama View:2048 × 1536, 1920 × 1440180 Dual Channel Panorama View:2048 × 768, 1920 × 720Panorama View:2048 × 1536, 1920 × 14404PTZ View:camera 01/camera 02/camera 03/camera 04: 1024 × 768Fisheye + 3PTZ View:camera 01: 2048 × 2048, 1024 × 1024camera 02/camera 03/camera 04: 1024 × 7684PTZ Fusion View:2048 × 1536, 1600 × 1200
- Sub-Stream: 50 Hz: 25 fps/60 Hz: 30 fps:Fisheye View:720 × 720, 480 × 480180 Panorama View:640 × 480, 320 × 240180 Dual Channel Panorama View:640 × 480, 320 × 240Panorama View:640 × 360, 320 × 2404PTZ View:camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240Fisheye + 3PTZ View:camera 01: 720 × 720camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Video Compression: Main stream: H.265+/H.265/H.264+/ H.264,Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed regions for each stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
- User/Host: Up to 32 users3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
- Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
- Privacy Mask: 8 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Reset Key: 1 Reset Key
- Basic Event: Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
- Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
- Power: 12 VDC ± 20%, 0.6 A, max. 7 W,two-core terminal block,PoE: IEEE 802.3af, Class 3, max. 8 W
- Dimension: Ø165.0 mm × 48.9 mm (Ø6.49" × 1.93")
- Package Dimension: 272 mm × 215 mm × 105 mm (10.7" × 8.5" × 4.1")
- Weight: Approx. 470 g (1.04 lb.)
- With Package Weight: Approx. 884 g (1.95 lb.)
- Storage Conditions: -10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Depth of Field: 0.2 m to 8
- Open Resources: Memory: 60 MB,Smart RAM: 800 MB,eMMC: 2 GB
- Computing Power: 2 TOPS
- Open Capability: HEOP 2.0 OpendevSDK
- Deep Learning Structure: Caffe,TensorFlow,PyTorch
- Programming Language: C,C++
- Mount Type: Support wall/table/ceiling mounting
- Decoding Mode: Support hardware decoding and software decoding
- Display Mode: 20 display modes in total,Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Built-in Microphone: Yes, 4 built-in microphones
- Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
- Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- People Counting: Counts people entering, exiting and passing by separately (The data is stored in the flash.)Supports real-time uploading and uploading by statistic cycleSends email reports on daily, weekly, monthly or annually basisSupports up to 3 detection regions, and independent arming schedule and linkage method
- Queue Management: Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: regional people queuing-up, waiting time detectionGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysisSupports real-time data uploading and scheduled data uploadingRegional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to thresholdWaiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map: A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,Two report types are available, space heat map and time heat map line chart.
- Intersection Analysis: Detects and analyze flow in an intersection-like scene, and generate reportsSupport one intersection of up to 10 ways
- Material: Metal
- Cable Length: 0.31 m (1.02 ft.)
