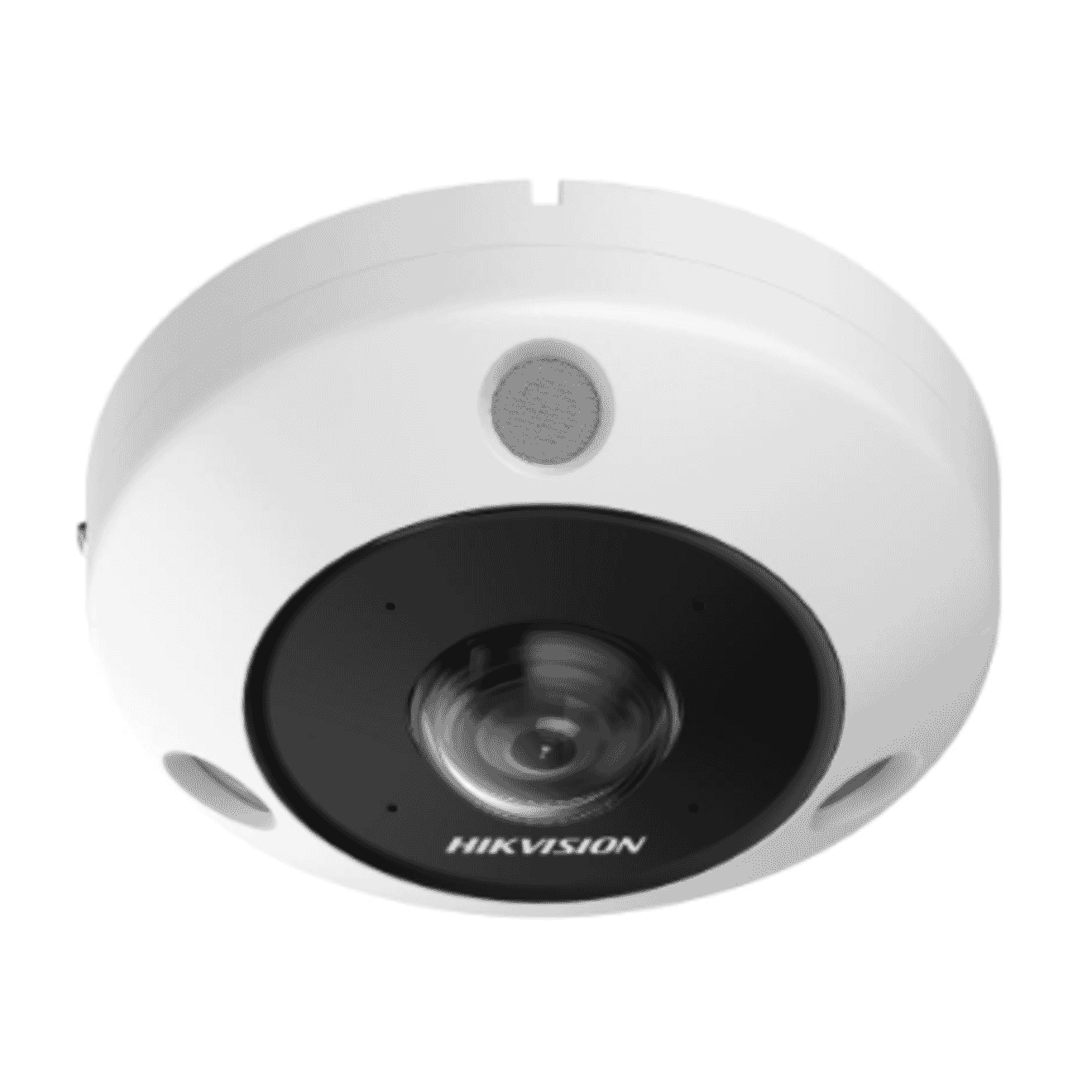

Hikvision DS-2CD63C5G1-IVS(1.29mm) 12MP Fisheye IP Camera 360° IR CCTV Security
Hikvision DS-2CD63C5G1-IVS(1.29mm) 12MP Fisheye IP Camera 360° IR CCTV Security
- IP CCTV
- 12MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD63C5G1-IVS(1.29mm) 12MP Fisheye IP Camera 360° IR CCTV Security
Specifications
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 3504 x 3504
- Min. Illumination: Colour: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Lens Type: Fixed focal lens, 1.29 mm
- Focal Length & FOV: 1.29 mm, horizontal FOV 180°, vertical FOV 180°
- Iris Type: Fixed
- Aperture: F2.2
- DORI: D: 27.9 mO: 11.1 mR: 5.6 mI: 2.8 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 15 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 25 fps/60 Hz: 30 fps:Fisheye View:3504 x 3504, 3024 x 3024, 2560 x 2560, 2048 x 2048180 Panorama View:3072 x 2304, 2048 x 1536180 Dual Channel Panorama View:3072 x 1152Panorama View:3072 x 2304, 2048 x 15364PTZ View:camera 01/camera 02/camera 03/camera 04: 1600 x 1200Fisheye + 3PTZ View:camera 01: 2560 x 2560, 2048 x 2048, 1280 x 1280camera 02/camera 03/camera 04: 1600 x 12004PTZ Fusion View:3200 x 2400, 2048 x 1536
- Sub-Stream: 50 Hz: 25 fps/60 Hz: 30 fps:Fisheye View:720 x 720, 480 x 480180 Panorama View:640 x 480, 320 x 240180 Dual Channel Panorama View:640 x 480, 320 x 240Panorama View:640 x 360, 320 x 2404PTZ View:camera 01/camera 02/camera 03/camera 04: 640 x 480, 320 x 240Fisheye + 3PTZ View:camera 01: 720 x 720camera 02/camera 03/camera 04: 640 x 480, 320 x 240
- Video Compression: Main stream: H.265+/H.265/H.264+/ H.264,Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed regions for each stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
- User/Host: Up to 32 users3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client: iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
- Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC,HLC,3D DNR, Distortion Correction, Defog
- Privacy Mask: 8 programmable polygon privacy masks
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Reset Key: 1 Reset Key
- Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture
- Power: 12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Dimension: Ø140.3 mm x 59.4 mm (Ø5.5" x 2.3")
- Package Dimension: 260 mm x 230 mm x 135 mm (10.2" x 9.1" x 5.3")
- Weight: Approx. 715 g (1.58 lb.)
- With Package Weight: Approx. 1206 g (2.66 lb.)
- Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
- Depth of Field: 0.2 m to 8
- Supplement Light Number: 3
- Open Resources: Memory: 60 MB,Smart RAM: 800 MB,eMMC: 2 GB
- Computing Power: 2 TOPS
- Open Capability: HEOP 2.0 OpendevSDK
- Deep Learning Structure: Caffe, TensorFlow, PyTorch
- Programming Language: C,C++
- Mount Type: Support wall/table/ceiling mounting
- Decoding Mode: Support hardware decoding and software decoding
- Display Mode: 20 display modes in total,Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format.
- Built-in Microphone: Yes, 4 built-in microphones
- Built-in Speaker: Yes, 1 built-in speaker
- Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- People Counting: Counts people entering, exiting and passing by separately (The data is stored in the flash.)Supports real-time uploading and uploading by statistic cycleSends email reports on daily, weekly, monthly or annually basisSupports up to 3 detection regions, and independent arming schedule and linkage method
- Queue Management: Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: regional people queuing-up, waiting time detectionGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysisSupports real-time data uploading and scheduled data uploadingRegional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to thresholdWaiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map: A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,Two report types are available, space heat map and time heat map line chart.
- Intersection Analysis: Detects and analyse flow in an intersection-like scene, and generate reportsSupport one intersection of up to 10 ways
- Material: Metal
- Heater: Yes
- Cable Length: 0.31 m (1.02 ft.)
