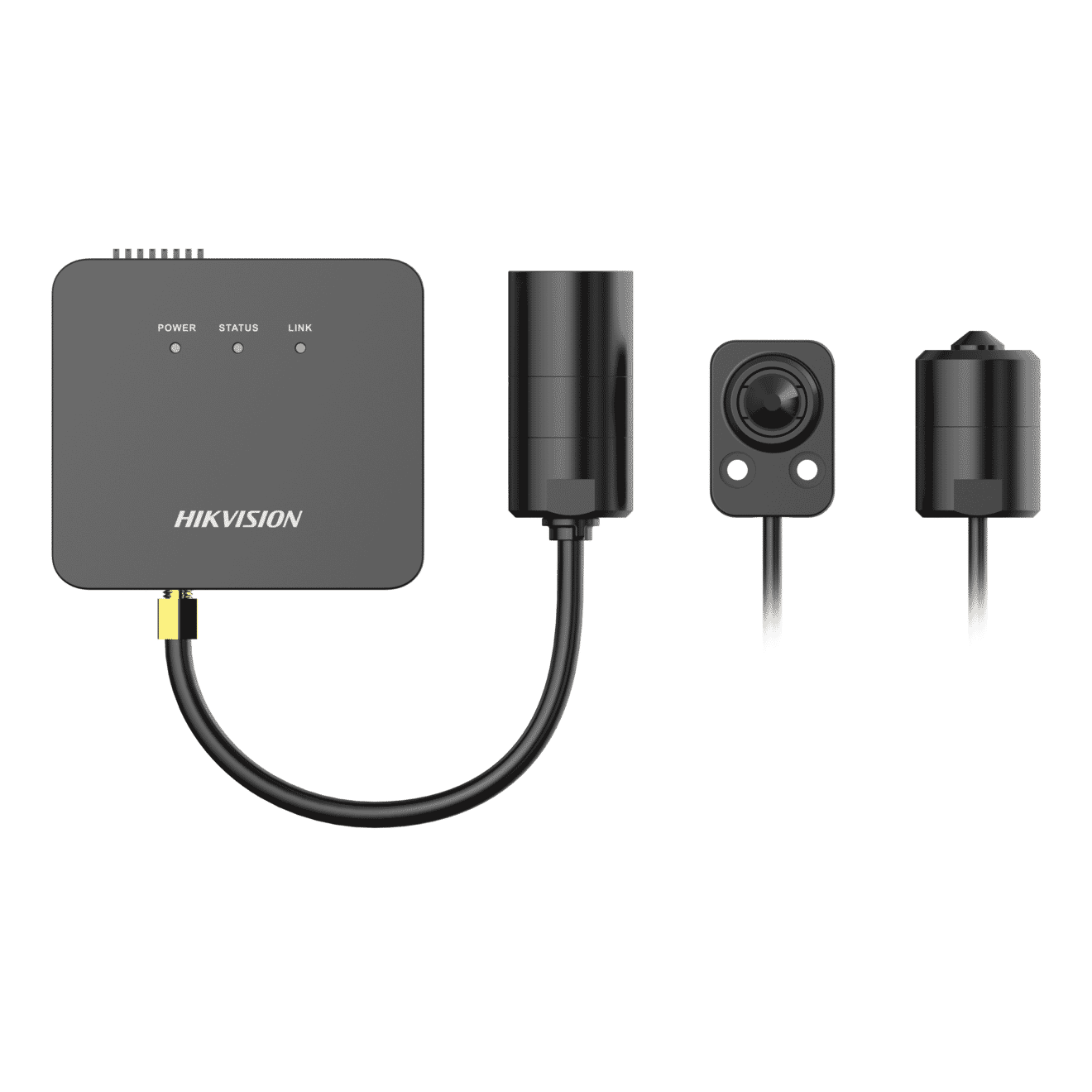

Hikvision DS-2CD6425G1-L30 (2.8mm) 2MP Pinhole Camera 8m Cable Lens
Hikvision DS-2CD6425G1-L30 (2.8mm) 2MP Pinhole Camera 8m Cable Lens
- IP CCTV
- 2MP
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD6425G1-L30 (2.8mm) 2MP Pinhole Camera 8m Cable Lens
Specifications
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080
- Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
- Shutter Time: 1/3 s to 1/100,000 s
- Focal Length & FOV: L10/L20 model:2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3°L30 model:2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7°4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
- Lens Mount: L10/L20: MiniL30: M12
- Iris Type: Fixed
- Aperture: L10/L20:2.8 mm: F2.53.7 mm: F2.5L30:2.8 mm: F2.04 mm: F2
- DORI: L10/L20:2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 mL30:2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video Compression: Main stream: H.265/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CVR/BVR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): Support 1 fixed region for main stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 15 channels
- API: Open Network Video Interface, ISAPI, SDK, ISUP 5.0
- User/Host: Up to 32 users3 level: administrator, operator, and user
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE10, IE11Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, HLC, defog, 3D DNR
- Privacy Mask: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
- Reset Key: Yes
- Basic Event: Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
- Smart Event: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionAudio exception detection, defocus detection, scene change detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- Power: 12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal blockPoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
- Dimension: Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7\" × 1.0\")L10: Ø26 mm × 40 mm (Ø1.0 × 1.6\")L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0\" × 1.0\")L30: Ø26 mm × 50 mm (Ø1.0 × 2.0\")"
- Package Dimension: Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5\" × 5.1\")Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5\" × 3.9\")"
- Weight: Main body: approx. 90 g (0.2 lb.)Camera: approx. 90 g (0.2 lb.)
- With Package Weight: Main body: approx. 456 g (1.0 lb.)Package (with 8 m cable): approx. 991 g (2.2 lb.)Package (with 2 m cable): approx. 776 g (1.7 lb.)Camera (with 8 m cable): approx. 676 g (1.5 lb.)Camear (with 2 m cable): approx. 451 g (1.0 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 62368-1);CB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014/A11:2017);BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
- Audio Type: Mono
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz
- Environment Noise Filtering: Yes
- Audio: 1 input (line in), 1 output (line out)
- Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
- RS-485: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Length of Lens Cable: 2 m (6.6 ft.) and 8 m (26.2 ft.) optional
