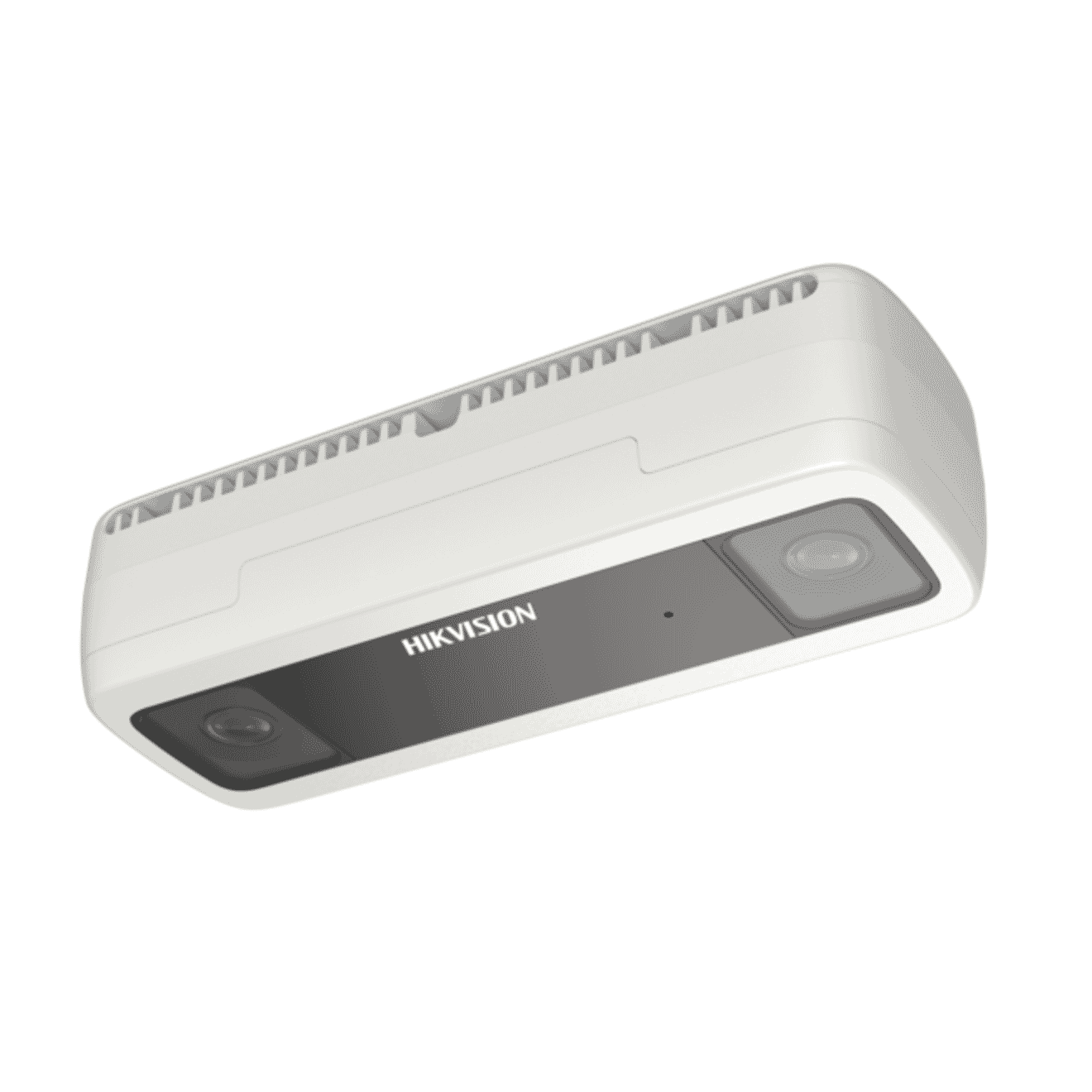

Hikvision DS-2CD6825G0/C-IVS(2.0MM) Panoramic Camera

Hikvision DS-2CD6825G0/C-IVS(2.0MM) Panoramic Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 2MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD6825G0/C-IVS(2.0MM) Panoramic Camera
Login to View Price

Specifications

  • Image Sensor: 1/1.2.7" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON)B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Lens Type: Fixed focal lens, 2 mm
  • Focal Length & FOV: Horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
  • Lens Mount: M12
  • Aperture: F2.25
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 6 m
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: BaseLine Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.265 and H.264 support
  • Region of Interest (ROI): 4 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, Ehome (5.0)
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
  • Image Settings: Saturation, brightness, contrast, sharpness are adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm input (-S)
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: HLC, BLC, 3D DNR, defog
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet port,-S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-Board Storage: 300 M eMMC storage for people counting data
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Linkage: Upload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Power: 12 VDC ± 20%, 0.66 A, max. 8 W, reverse polarity protection, Ø5.5mm coaxial power plugPoE: 802.3 af, class 3, 36 to 57 V, 0.23 A to 0.14 A, max. 8.3 W
  • Dimension: With -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4\" × 1.6\" )Without -V: 168 mm × 61 mm × 36 mm (6.6 × 2.4\" × 1.4\")With Package: 235 mm × 120 mm × 125 mm (9.2 × 4.7\" × 4.9\")"
  • Weight: Camera: Approx. 435 g (1 lb.)With package: 725 g (1.6 lb)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
  • Language: 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
  • EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
  • Safety: UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
  • Protection: With -V model: IP67 (IEC 60529-2013)
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Audio: 1 built-in microphone-S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
  • People Counting: Counts people entering and exiting separatelySupports real-time uploading and uploading by statistic cycleSends email reports on daily, weekly, monthly or annually basisSupports target filtering by height

Camera
  • Image Sensor: 1/1.2.7" Progressive Scan CMOS
  • Max. Resolution: 1920 × 1080
  • Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON)B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter

Lens
  • Lens Type: Fixed focal lens, 2 mm
  • Focal Length & FOV: Horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
  • Lens Mount: M12
  • Aperture: F2.25

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 6 m
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: BaseLine Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.265 and H.264 support
  • Region of Interest (ROI): 4 fixed regions for main stream and sub-stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, Ehome (5.0)
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11

  • Image Settings: Saturation, brightness, contrast, sharpness are adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm input (-S)
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: HLC, BLC, 3D DNR, defog

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M Ethernet port,-S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • On-Board Storage: 300 M eMMC storage for people counting data

Event
  • Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Linkage: Upload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General
  • Power: 12 VDC ± 20%, 0.66 A, max. 8 W, reverse polarity protection, Ø5.5mm coaxial power plugPoE: 802.3 af, class 3, 36 to 57 V, 0.23 A to 0.14 A, max. 8.3 W
  • Dimension: With -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4\" × 1.6\" )Without -V: 168 mm × 61 mm × 36 mm (6.6 × 2.4\" × 1.4\")With Package: 235 mm × 120 mm × 125 mm (9.2 × 4.7\" × 4.9\")"
  • Weight: Camera: Approx. 435 g (1 lb.)With package: 725 g (1.6 lb)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
  • Language: 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function: Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter

Approval
  • EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
  • Safety: UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
  • Protection: With -V model: IP67 (IEC 60529-2013)

Other
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Audio: 1 built-in microphone-S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound
  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
  • People Counting: Counts people entering and exiting separatelySupports real-time uploading and uploading by statistic cycleSends email reports on daily, weekly, monthly or annually basisSupports target filtering by height
