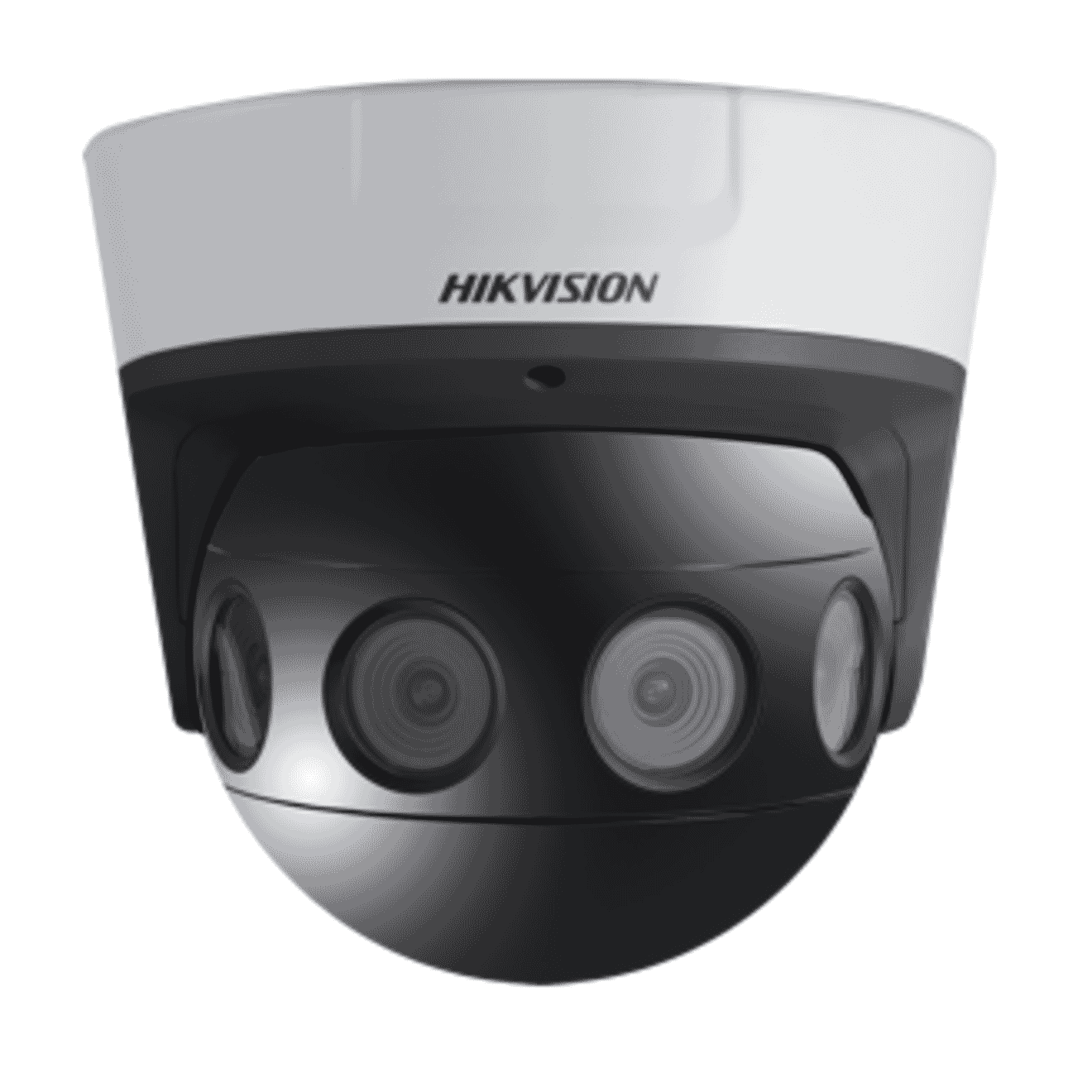

Hikvision DS-2CD6924G0-IHS (2.8 mm) (C) 180 Degree Stitched 8 MP PanoVu Camera

Hikvision DS-2CD6924G0-IHS (2.8 mm) (C) 180 Degree Stitched 8 MP PanoVu Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 8MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD6924G0-IHS (2.8 mm) (C) 180 Degree Stitched 8 MP PanoVu Camera
Login to View Price

Specifications

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: Panorama+ePTZ mode: panorama channel: 1920 x 1080; ePTZ channel: 1920 x 1080Panorama mode: 3840 x 2160Original mode: 1920 x 1080
  • Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON)B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter. Blue glass module to reduce ghost phenomenon.
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°
  • Lens Type: Fixed focal lens, 2.8 mm, four lenses
  • Focal Length & FOV: 2.8 mm, horizontal FOV 180°, vertical FOV 90°
  • Lens Mount: M16
  • Aperture: F1.6
  • DORI: 2.8 mm: D: 32 m, O: 12.5 m, R: 6.5 m, I: 3 m
  • Supplement Light Type: IR, four IR LEDs
  • Supplement Light Range: Up to 20 m
  • IR Wavelength: 850 nm
  • Main Stream: Panorama+ePTZ mode:Panorama channel:50 Hz: 25 fps (1920 x 1080, 1280 x 720)60 Hz: 30 fps (1920 x 1080, 1280 x 720)ePTZ channel:50 Hz: 25 fps (1920 x 1080, 1280 x 720)60 Hz: 30 fps (1920 x 1080, 1280 x 720)Panorama mode:50 Hz: 25 fps (3840 x 2160, 2560 x 1440, 1920x 1080)60 Hz: 30 fps (3840 x 2160, 2560 x 1440, 1920x 1080)Original mode:50 Hz: 25 fps (1920x 1080)60 Hz: 30 fps (1920x 1080)
  • Sub-Stream: Panorama mode:50 Hz: 25 fps (1280 x 720, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264/MJPEG (panorama + ePTZ mode, panorama mode)Sub-stream: H.265/H.264/MJPEG (original mode)
  • Video Bit Rate: 32 Kbps to 64 Mbps
  • H.264 Type: Baseline Profile/ Main Profile/ High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS1.1, TLS 1.2, TLS1.3
  • Network Storage: NAS (NFS, SMB/CIFS), ANR
  • Client: iVMS-4200
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view: Safari 12+Local service: Chrome 57+, Firefox 52+
  • Image Settings: Rotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
  • Privacy Mask: 4 programmable polygon privacy masks. Only original mode supports.
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256 GB)
  • Reset Key: Yes
  • Basic Event: Motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception, unattended baggage detection,object removal detection (Only panorama mode supports.)
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Power: 12 VDC, 1.4 A, max. 24 W, three-core terminal blockPoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A
  • Dimension: 190 mm x 208 mm x 207 mm (7.5" x 8.2" x 8.1")
  • Package Dimension: 340 mm x 261 mm x 293 mm (13.4" x 10.3" x 11.5")
  • Weight: Approx. 3350 g (6.6 lb.)
  • With Package Weight: Approx. 5420 g (11 lb.)
  • Storage Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror (only original mode and panorama mode supports), password protection, watermark, IP address filter, pixel counter (only panorama mode supports)
  • EMC: FCC: 47 CFR Part 15, Subpart BCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014RCM: AS/NZS CISPR 32: 2015IC: ICES-003: Issue 7KC: KN 32: 2015, KN 35: 2015
  • Safety: UL: UL 62368-1CB: IEC 62368-1:2014+A11CE-LVD: EN 62368-1:2014/A11:2017BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EUWEEE: 2012/19/EUReach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
  • Target Cropping: Yes (only panorama mode supports)
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format
  • Audio: 1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 vpp, input impedance: 4.7 KO, interface type: non-equilibrium;1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 vpp, output impedance: 100 O, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • People Density: Yes (only panorama mode supports)
  • Heater: Yes

Camera
  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: Panorama+ePTZ mode: panorama channel: 1920 x 1080; ePTZ channel: 1920 x 1080Panorama mode: 3840 x 2160Original mode: 1920 x 1080
  • Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON)B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Time: 1/25 s to 1/100,000 s
  • Day & Night: IR cut filter. Blue glass module to reduce ghost phenomenon.
  • Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°

Lens
  • Lens Type: Fixed focal lens, 2.8 mm, four lenses
  • Focal Length & FOV: 2.8 mm, horizontal FOV 180°, vertical FOV 90°
  • Lens Mount: M16
  • Aperture: F1.6

DORI
  • DORI: 2.8 mm: D: 32 m, O: 12.5 m, R: 6.5 m, I: 3 m

Illuminator
  • Supplement Light Type: IR, four IR LEDs
  • Supplement Light Range: Up to 20 m
  • IR Wavelength: 850 nm

Video
  • Main Stream: Panorama+ePTZ mode:Panorama channel:50 Hz: 25 fps (1920 x 1080, 1280 x 720)60 Hz: 30 fps (1920 x 1080, 1280 x 720)ePTZ channel:50 Hz: 25 fps (1920 x 1080, 1280 x 720)60 Hz: 30 fps (1920 x 1080, 1280 x 720)Panorama mode:50 Hz: 25 fps (3840 x 2160, 2560 x 1440, 1920x 1080)60 Hz: 30 fps (3840 x 2160, 2560 x 1440, 1920x 1080)Original mode:50 Hz: 25 fps (1920x 1080)60 Hz: 30 fps (1920x 1080)
  • Sub-Stream: Panorama mode:50 Hz: 25 fps (1280 x 720, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 360)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264/MJPEG (panorama + ePTZ mode, panorama mode)Sub-stream: H.265/H.264/MJPEG (original mode)
  • Video Bit Rate: 32 Kbps to 64 Mbps
  • H.264 Type: Baseline Profile/ Main Profile/ High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users. 3 user levels: administrator, operator and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS1.1, TLS 1.2, TLS1.3
  • Network Storage: NAS (NFS, SMB/CIFS), ANR
  • Client: iVMS-4200
  • Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view: Safari 12+Local service: Chrome 57+, Firefox 52+

  • Image Settings: Rotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
  • Wide Dynamic Range (WDR): Digital WDR
  • Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
  • Privacy Mask: 4 programmable polygon privacy masks. Only original mode supports.

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M/1000 M Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256 GB)
  • Reset Key: Yes

Event
  • Basic Event: Motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception, unattended baggage detection,object removal detection (Only panorama mode supports.)
  • Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General
  • Power: 12 VDC, 1.4 A, max. 24 W, three-core terminal blockPoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A
  • Dimension: 190 mm x 208 mm x 207 mm (7.5" x 8.2" x 8.1")
  • Package Dimension: 340 mm x 261 mm x 293 mm (13.4" x 10.3" x 11.5")
  • Weight: Approx. 3350 g (6.6 lb.)
  • With Package Weight: Approx. 5420 g (11 lb.)
  • Storage Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, mirror (only original mode and panorama mode supports), password protection, watermark, IP address filter, pixel counter (only panorama mode supports)

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart BCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014RCM: AS/NZS CISPR 32: 2015IC: ICES-003: Issue 7KC: KN 32: 2015, KN 35: 2015
  • Safety: UL: UL 62368-1CB: IEC 62368-1:2014+A11CE-LVD: EN 62368-1:2014/A11:2017BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EUWEEE: 2012/19/EUReach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002

Other
  • Target Cropping: Yes (only panorama mode supports)
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format
  • Audio: 1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 vpp, input impedance: 4.7 KO, interface type: non-equilibrium;1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 vpp, output impedance: 100 O, interface type: non-equilibrium
  • Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • People Density: Yes (only panorama mode supports)
  • Heater: Yes
