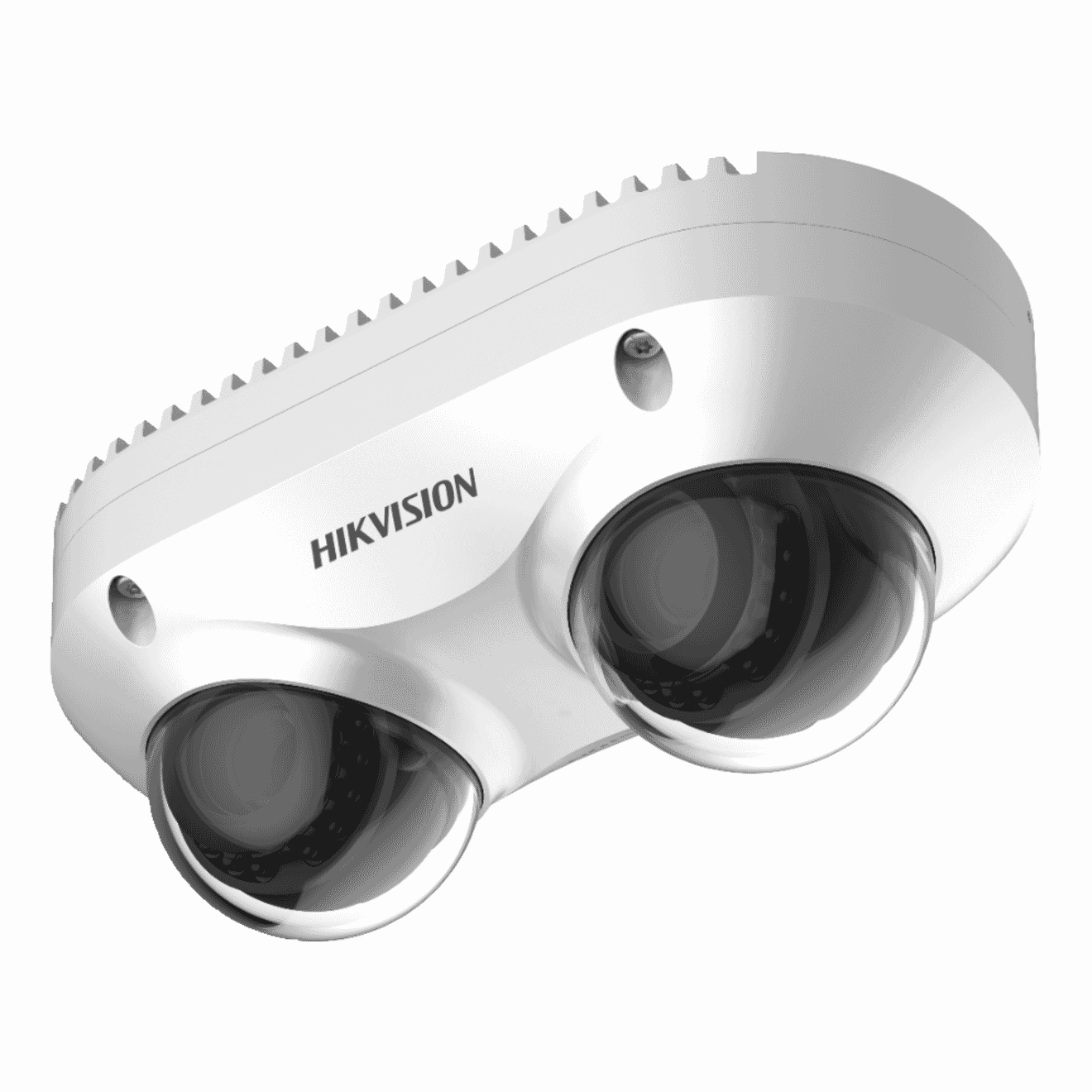

Hikvision DS-2CD6D42G0-IS (2.8 mm) Hikvision Dual-Directional PanoVu Camera

Hikvision DS-2CD6D42G0-IS (2.8 mm) Hikvision Dual-Directional PanoVu Camera

Category: IP CCTV
|
Brand: Hikvision
  • IP CCTV
  • 4MP
  • Fixed Lens
  • 40 years of Trust
  • Free Delivery
  • Free Returns
  • Expert Tech Support
View full details
Hikvision DS-2CD6D42G0-IS (2.8 mm) Hikvision Dual-Directional PanoVu Camera
Login to View Price

Specifications

  • Image Sensor: 1.3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -90° to 90°,tilt: 0 to 60° (2.8 mm),0 to 70° (4/6 mm),rotate: 0° to 355°
  • Focal Length & FOV: 2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 93.9°6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
  • Lens Mount: M12
  • Aperture: F1.6
  • DORI: 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m4 mm: D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 10 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 24 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 4 fixed region(s) for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect
  • Web Browser: Plug-in required live view: IE 11,Plug-in free live view: Safari 12+,Local service: Chrome 57.0+, Firefox 52.0+,Not recommended: Safari 11+, Edge
  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC,HLC,3D DNR,Defog
  • Privacy Mask: 8 programmable polygon privacy masks
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes
  • Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,abnormal reboot,alarm input and output,video quality diagnosis
  • Smart Event: scene change detection,audio exception detection,defocus detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
  • Power: 12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9.0 W
  • Dimension: 164.3 mm × 84.6 mm × 67.4 mm (6.5" × 3.3" × 2.7")
  • Package Dimension: 227 mm × 172 mm × 125 mm (8.9" × 6.8" × 4.9")
  • Weight: Approx. 770 g (1.7 lb.)
  • With Package Weight: Approx. 1053 g (2.3 lb.)
  • Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset,anti-banding
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Target Cropping: Yes
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Built-in Microphone: 2 built-in microphone(s)
  • Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium, mono sound
  • Alarm: 1 input(s), 1 output(s) (max. 36 VDC, 30 mA)
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Camera
  • Image Sensor: 1.3" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: -90° to 90°,tilt: 0 to 60° (2.8 mm),0 to 70° (4/6 mm),rotate: 0° to 355°

Lens
  • Focal Length & FOV: 2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 93.9°6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
  • Lens Mount: M12
  • Aperture: F1.6

DORI
  • DORI: 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m4 mm: D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Illuminator
  • Supplement Light Type: IR
  • Supplement Light Range: Up to 10 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video
  • Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 24 fps (704 × 480, 640 × 480)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 4 fixed region(s) for each stream
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • Simultaneous Live View: Up to 20 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host: Up to 32 users3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client: iVMS-4200,Hik-Connect
  • Web Browser: Plug-in required live view: IE 11,Plug-in free live view: Safari 12+,Local service: Chrome 57.0+, Firefox 52.0+,Not recommended: Safari 11+, Edge

  • Image Parameters Switch: Yes
  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR): 120 dB
  • Image Enhancement: BLC,HLC,3D DNR,Defog
  • Privacy Mask: 8 programmable polygon privacy masks

Interface
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Reset Key: Yes

Event
  • Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,abnormal reboot,alarm input and output,video quality diagnosis
  • Smart Event: scene change detection,audio exception detection,defocus detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

General
  • Power: 12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9.0 W
  • Dimension: 164.3 mm × 84.6 mm × 67.4 mm (6.5" × 3.3" × 2.7")
  • Package Dimension: 227 mm × 172 mm × 125 mm (8.9" × 6.8" × 4.9")
  • Weight: Approx. 770 g (1.7 lb.)
  • With Package Weight: Approx. 1053 g (2.3 lb.)
  • Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset,anti-banding

Approval
  • EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002

Other
  • Target Cropping: Yes
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes
  • Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Built-in Microphone: 2 built-in microphone(s)
  • Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium, mono sound
  • Alarm: 1 input(s), 1 output(s) (max. 36 VDC, 30 mA)
  • RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
