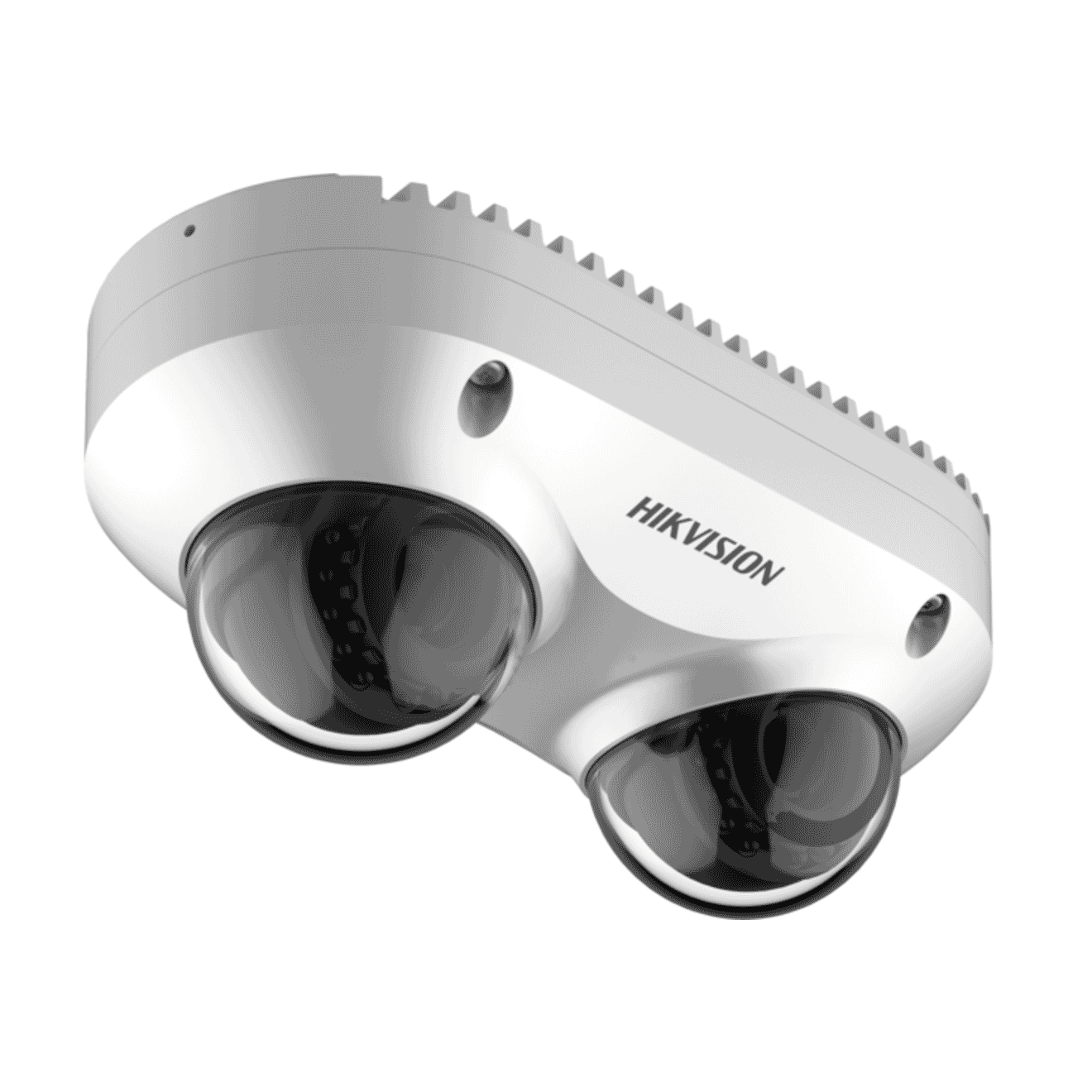

Hikvision DS-2CD6D52G0-IHS (4mm) 5MP Dual-Directional Camera IR
Hikvision DS-2CD6D52G0-IHS (4mm) 5MP Dual-Directional Camera IR
- IP CCTV
- 5MP
- Fixed Lens
-
40 years of Trust
-
Free Delivery
-
Free Returns
-
Expert Tech Support
Hikvision DS-2CD6D52G0-IHS (4mm) 5MP Dual-Directional Camera IR
Specifications
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max. Resolution: 2560 x 1920
- Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON),B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: ICR Cut
- Angle Adjustment: P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°
- Focal Length & FOV: 2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128°4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104°6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°
- Lens Mount: M12
- Aperture: F1.6
- DORI: 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m4 mm: D: 85.4 m, O: 33.9, R: 17.1 m, I: 8.5 m6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
- Supplement Light Type: IR
- Supplement Light Range: Up to 10 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Main Stream: 50 Hz: 25 fps (2560 × 1920, 2048 × 1536)60 Hz: 30 fps (2560 × 1920, 2048 × 1536)
- Sub-Stream: 50 Hz: 25 fps (640 × 480, 704 × 576)60 Hz: 30 fps (640 × 480, 704 × 480)
- Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)
- Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed regions for each stream
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 20 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host: Up to 32 users3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+
- Image Parameters Switch: Yes
- Image Settings: Rotate, saturation, brightness, contrast, sharpness, white balance*Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time.
- Day/Night Switch: Day, Night, Auto, Schedule, Triggered by Alarm In (-S)
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, HLC, Defog, EIS, 3D DNR
- Privacy Mask: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Reset Key: Yes
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detectionScene change detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, send email
- Power: 12 VDC, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plugPoE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 11 W
- Dimension: 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
- Package Dimension: 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
- Weight: Approx. 770 g (1.7 lb.)
- With Package Weight: Approx. 1053 g (2.3 lb.)
- Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function: Mirror, anti-flicker, heartbeat
- EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
- Protection: Ingress protection: IP67, IK10
- Audio Type: Stereo
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Smooth Streaming: No
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
- Audio: Without -S: 2 built-in mics-S: 2 built-in mics, 1 line in, 1 line out
- Alarm: -S: 1 input, 1 output (max. 36 VDC, 30mA)
- RS-485: -S: 1 RS-485 interface, half duplex
- Heater: Yes
